Chapter 9: Powering On the Chassis
176
Powering on the AT-SBxPWRPOE1 AC Power Supply
This section contains instructions on how to power on the AT-
SBxPWRPOE1 AC Power Supply. For installation instructions, refer to
“Installing the AT-SBxPWRPOE1 AC Power Supply” on page 113. To
power on the power supply, perform the following procedure:
1. Identify AC sockets A and B in the recessed panel on the back panel
of the chassis, shown in Figure 113 on page 173. The sockets are for
the AT-SBxPWRPOE1 Power Supplies in slots A and B on the front
panel of the chassis.
2. Plug the AC power cord that comes with the power supply into a plug
whose corresponding slot on the front panel has a PoE power supply.
If there are two PoE power supplies, you may power on either supply

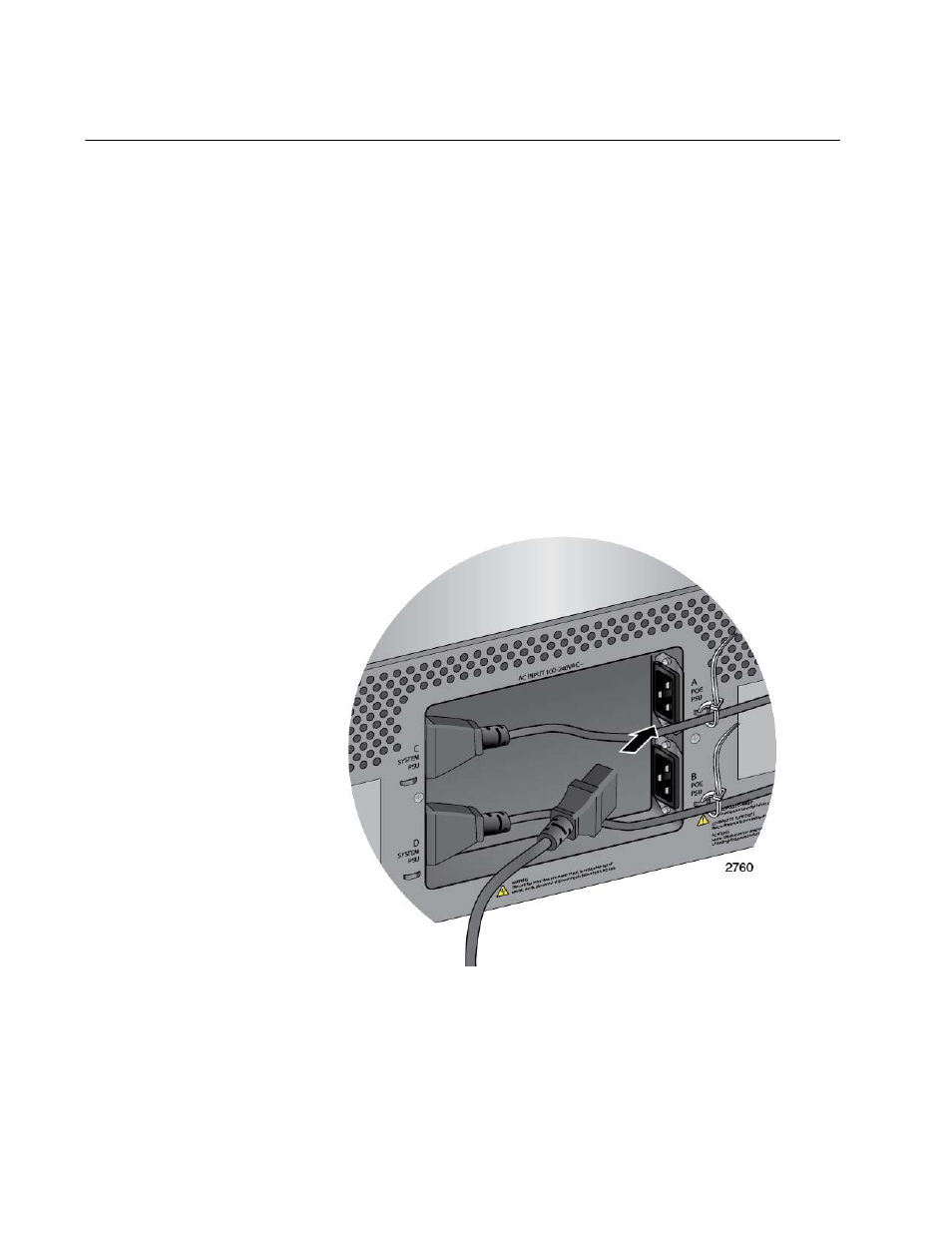

first. The illustration in Figure 116 shows the AC power cord being
connected to connector A for the power supply in slot A on the front
panel.
Figure 116. Connecting the AC Power Cord for the AT-SBxPWRPOE1
Power Supply
3. Use the twist tie that comes with the power supply to secure the cord
to an anchor on the chassis, as shown in Figure 117 on page 177.
