Removing the shipping brace, Figure 44: removing the shipping brace – Allied Telesis AT-SBx31CFC960 User Manual
Page 102
Chapter 5: Installing the Chassis on a Table or in an Equipment Rack
102
Removing the Shipping Brace
Now that the chassis is installed on the table or in the equipment rack, you
may remove the shipping brace from the front of the unit. To remove the
shipping brace, remove the six mounting screws with a #2 Phillips-head
screwdriver (not provided). See Figure 44.

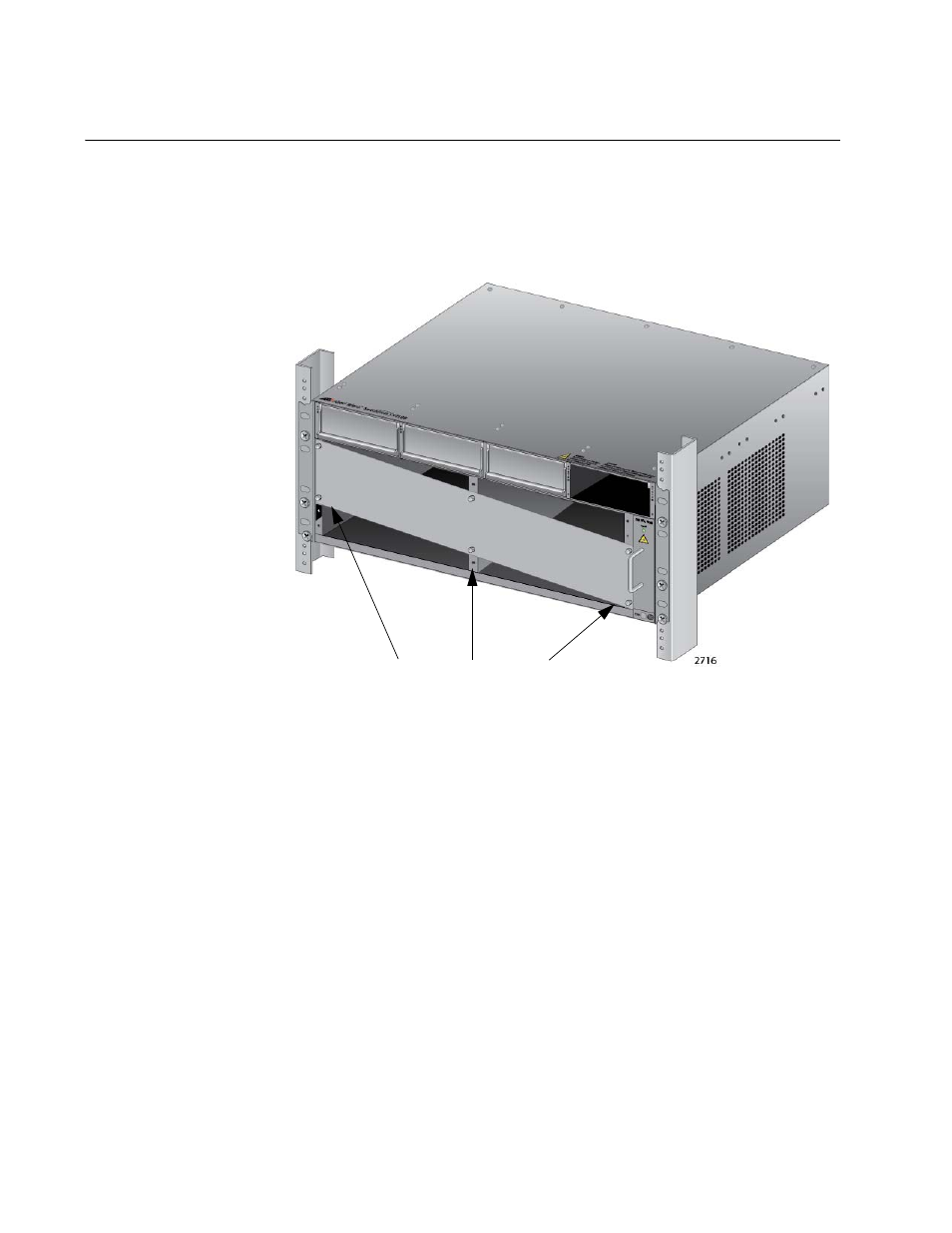

Figure 44. Removing the Shipping Brace
After removing the shipping plate, go to “Installing the Chassis Grounding
Lug” on page 103.
Shipping Brace Screws
