Installing the AT-SBxPWRPOE1 AC Power Supply
This section contains the installation procedure for the AT-SBxPWRPOE1
AC Power Supply, for the PoE+ ports on the AT-SBx31GP24 PoE Line
Card. For background information, refer to “Power Supplies” on page 27.
Caution
The electronic components in the AT-SBxPWRPOE1 AC Power
Supply can be damaged by electro-static discharges (ESD). Follow
the procedure in “Protecting Against Electrostatic Discharge (ESD)”
on page 106 to guard against ESD damage when unpacking and
installing the power supply.
To install the power supply, perform the following procedure:
1. Choose a slot for the AT-AT-SBxPWRPOE1 AC Power Supply in the
chassis.
You may install it in either slot A or B, shown in Figure 50 on page 107.
2. Raise the handle on the blank panel covering the selected slot and
slide the panel from the chassis, as shown in Figure 57.

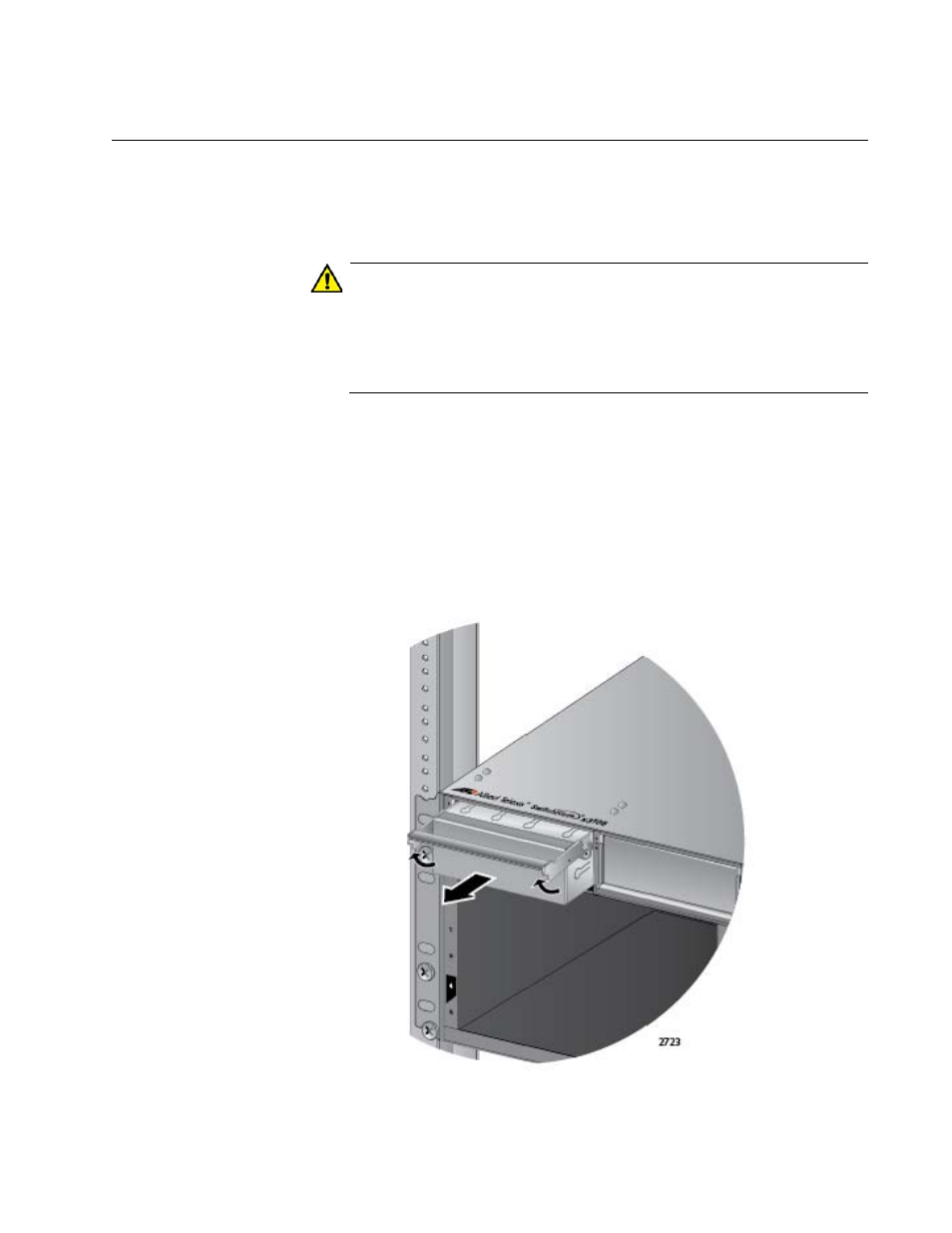

Figure 57. Removing the Blank Slot Cover from Power Supply Slot A
