Appendix A: Technical Specifications
286
Port Pinouts
This section lists the port pinouts for the AT-SBx31GT24, AT-SBx31GT40,
and AT-SBx31GP24 Line Cards.

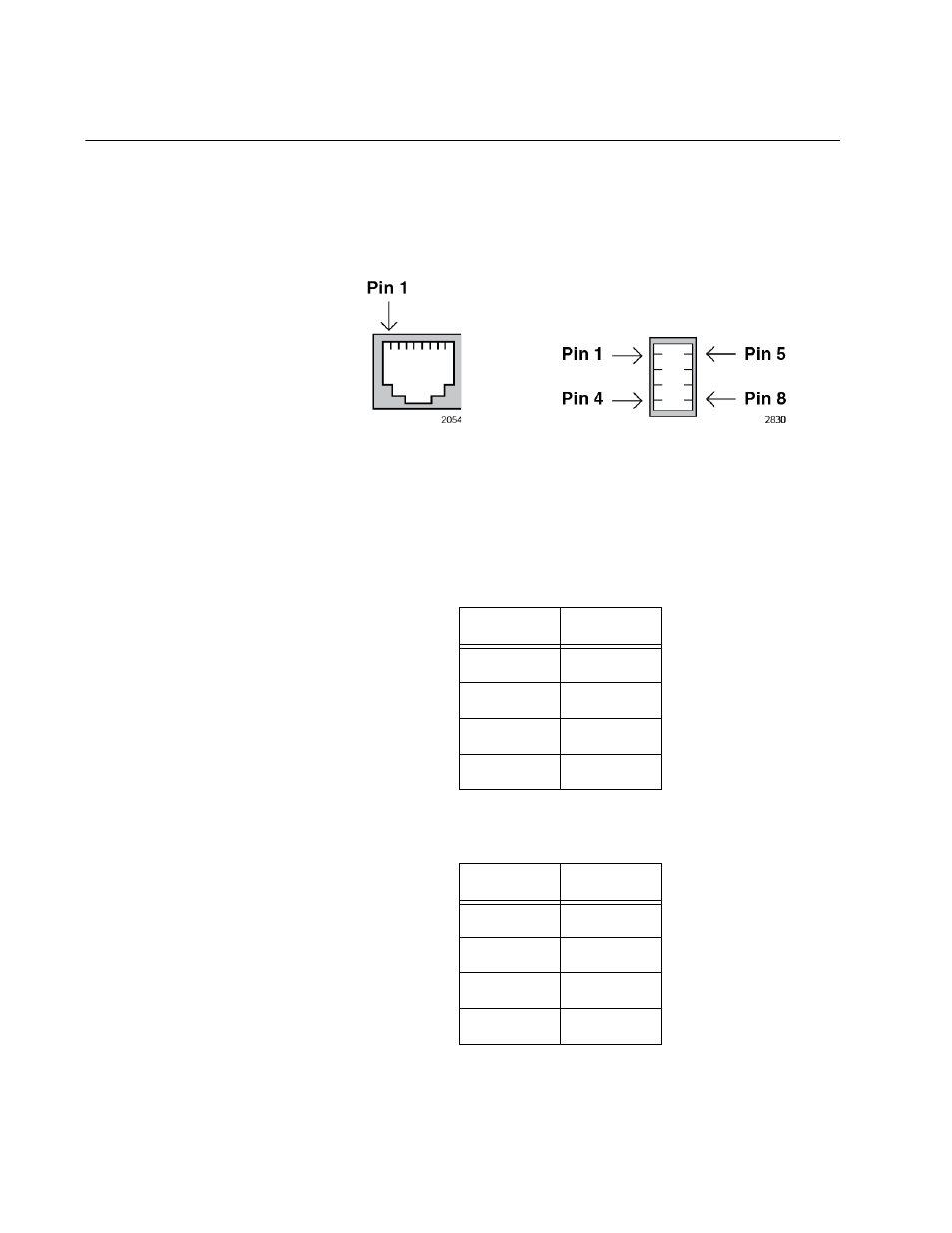

Figure 178 illustrates the pin layouts for RJ-45 and RJ point 5 ports.
Figure 178. Pin Numbers for RJ-45 and RJ Point 5 Ports
Table 39 lists the pin signals when a twisted-pair port is operating in the
MDI configuration.
Table 40 lists the pin signals for the MDI-X configuration.
Table 39. MDI Pin Signals (10Base-T or 100Base-TX)
Pin Signal
1 TX+
2 TX-
3 RX+
6 RX-
Table 40. MDI-X Pin Signals (10Base-T or 100Base-TX)
Pin Signal
1 RX+
2 RX-
3 TX+
6 TX-
RJ-45 Port RJ Point 5 Port
