Innovate Motorsports LogWorks 3 - Manual (Page 68)

LogWorks3_Manual_1.01.doc - 68 -

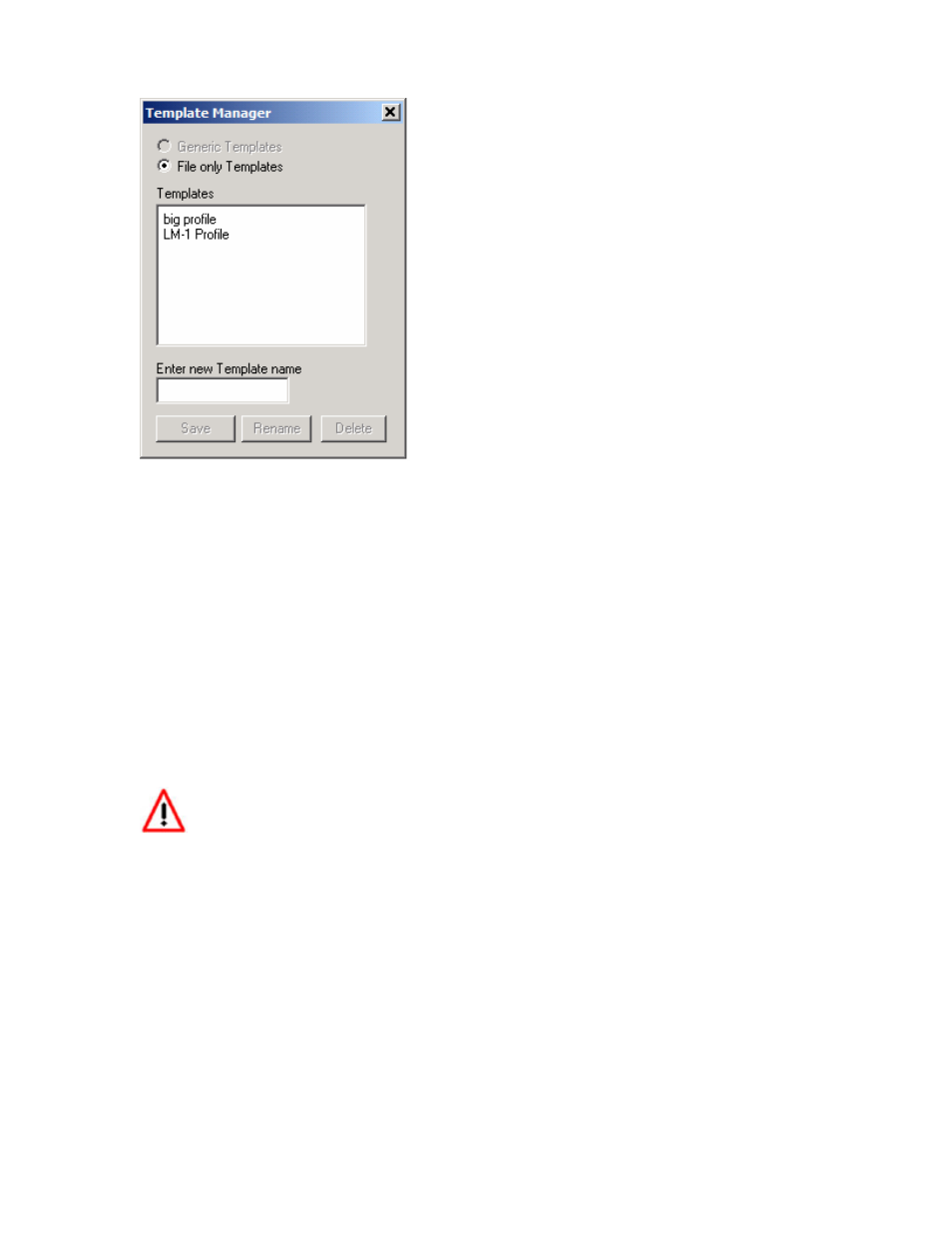

It shows the currently stored channel templates. Enter a new template name and click save. To
rename a template, select it in the list and enter a new name. Then click Rename. To delete a
template, select it in the list and click delete.
To select a already stored template, select in the in the Log Window menu
Templates->Template name
When a template is selected you will be asked if the stored smoothing should be applied to:
•
the current session
•
all sessions in the log
•
not applied (left as is)
When a log is newly created by real time logging, or downloading from an LM-1 or
DL-32, the templates are stored in the LWSettings file and will be available after further
downloads.
If a log file is already saved, or loaded from a .log file created by Logworks 2 or 3, the
templates are stored in the log file itself.
