9. Min-Max indicators. These show the min/max needle position since the gauge was last
reset.
5.2 LogWorks gauge types
LogWorks can display seven different gauge types: Round, vertical bar, horizontal bar, multi-
channel, vector, numeric and indicator light.

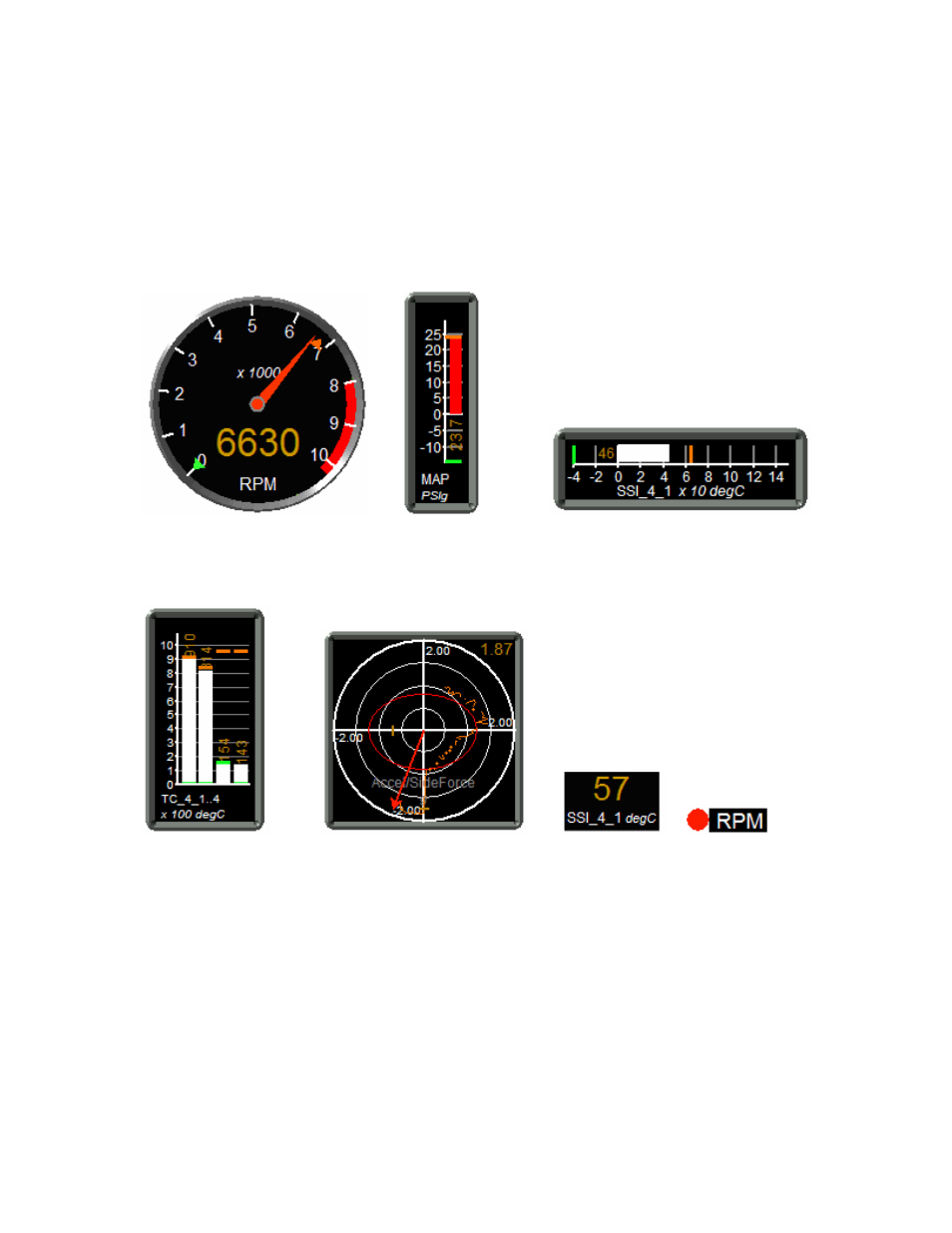

Round gauge (default) Vertical bar Horizontal bar
Multi-Channel
Vector Numeric Indicator Light
5.2.1 Round, Vertical Bar, Horizontal Bar, Multi and Numeric gauges
The Round, Vertical bar, Horizontal bar and Numeric gauges display just a single channel.
A multi-channel gauge can display any number of channels that have the same unit. The scale
range of a multi-channel gauge is determined by the lowest range point of all channels to the
largest range point of all channels assigned to the gauge.
If the channel displayed has a range that goes from negative to positive values (as shown in the
vertical bar), a bar gauge can be programmed so it’s bar indicator always starts at the zero point.
