To Insert a Measurement Marker
•
Select the Measurement Marker Tool .
•
Click (and possibly drag) on the graph pane where you want to Marker Inserted.
To Remove a Measurement Marker
• select the Measurement Marker Tool
• Click in the Measurement Markers Window
To Remove all Measurement Markers in the Session
Select the Menu Item:
Tools->Delete Measurements
7.2.6 Identifying Channels
When moving the curser over the graph pane (6) or measurement pane (5) the channel trace (or
measurement) over which the cursor resides is highlighted. If you hover (no mouse movement)
over a channel or measurement for a second, the channel name is displayed in a small label
window.
If the channel is highlighted with the cursor in the graph pane, the corresponding measurement in
the measurement pane is shown bold and underlined.

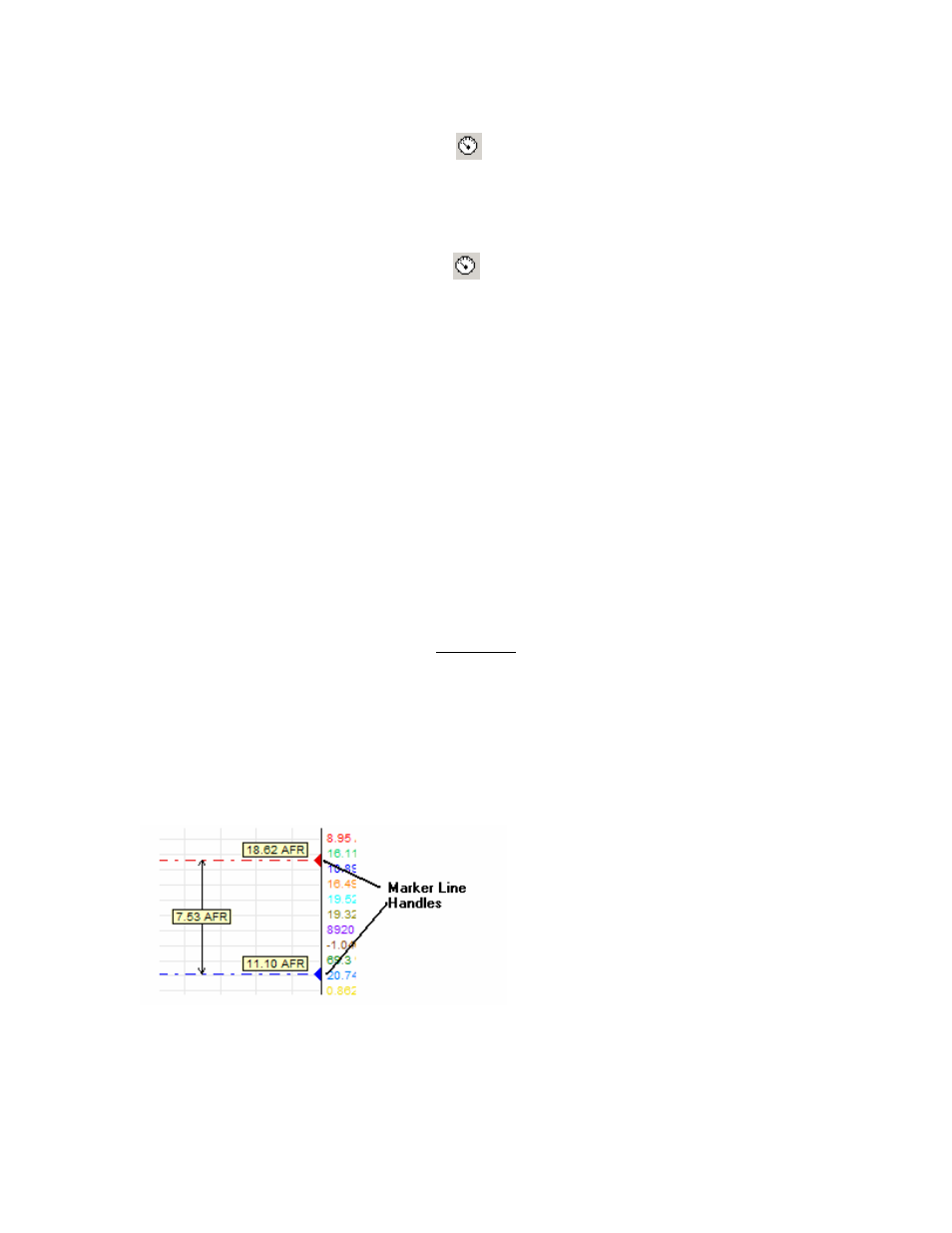

7.2.7 Marker Lines
Marker lines are dash-dotted lines used to give an easy visual reference to see if a channel trace
is above or below a certain value or is in a value range. Marker lines are red (max marker line)
and blue (min marker line).
To show Marker lines (12) for a channel:
Either select the channel with:
Tools->Marker Lines->Channel Name
