5.4 Skins and colors
A Skin is a set of definitions how gauges are to appear. The appearance applies to all gauges in
LogWorks, not only to the main dash. A skin contains:
a. Digit Style for the numeric display of the gauges
b. Bezel Style
c. Background image, color and usage
d. Face Color
e. Ring (Bezel) Color
f.
Scale/Name/unit color
g. Inactive color for Scale/Name/Unit (used when the displayed channel is inactive)
h. Needle Color
i.
Digit Color for the for the numeric display of the gauge
j. Redline/Mark color
k. Min Mark Color
l.
Max Mark Color
All those options can be selected under the Skins/Colors menu in the LogWorks Main Dash.

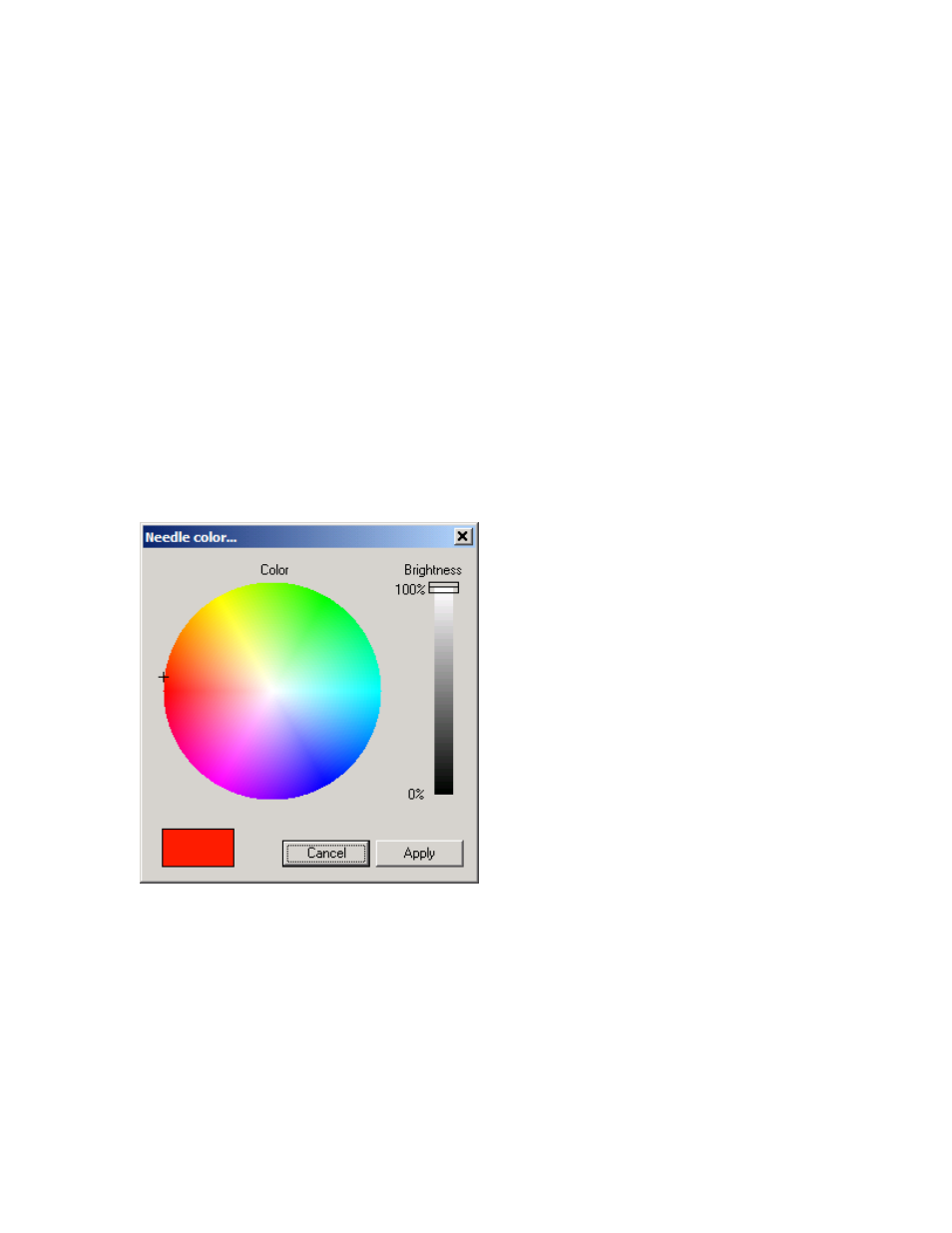

When selecting any of the color menu items a color selection dialog box appears:
Click anywhere on the color circle to change the hue or saturation of the color. Saturation is how
‘intense’ the color is; hue is the color itself (red, yellow, green and so on). Grays have a saturation
of zero and are located in the center of the circle. The distance from the center is a measure of
the saturation. The slider on the right of the window determines the brightness of the color (in %
of the max brightness achievable for the selected hue and saturation).
