Chapter 8 Server Management Boards
87

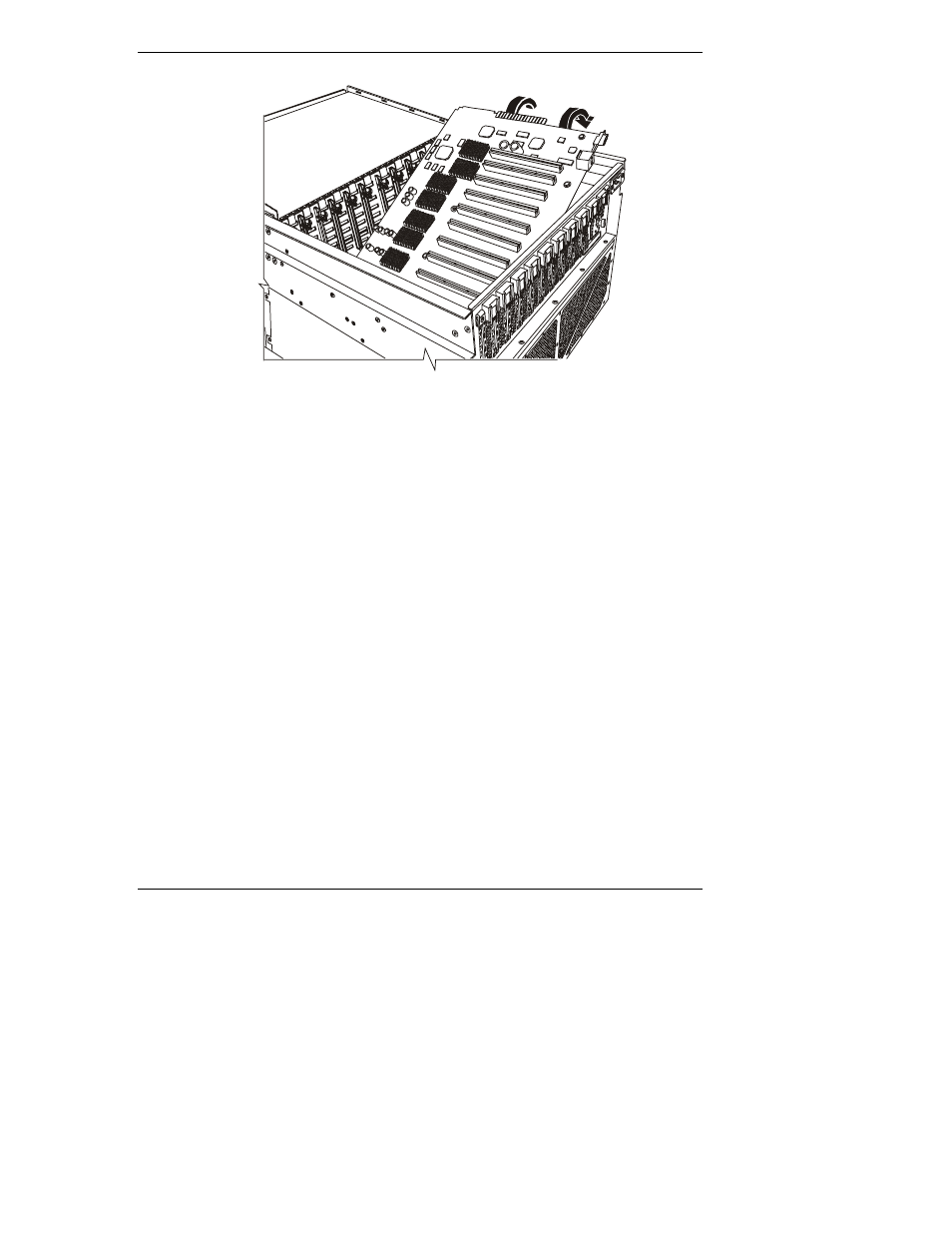

Figure 8-3. I/O Baseboard Removal
19. Lift the connector end out of the chassis first followed by the rest of the
I/O Baseboard.
20. Place on a clean ESD-protected work surface.
21. Remove the nine screws and the two hex jackscrews that secure the video
connector to the I/O Baseboard in order to separate it from the I/O
Baseboard tray.
Installing the I/O Baseboard
To install the I/O Baseboard, complete the following procedure:
1. Observe all safety and ESD precautions for handling electronic
components.
2. Install the I/O Baseboard into the I/O Baseboard tray.
3. Orient the I/O Baseboard and tray assembly such that the connector end
faces the Sideplane.
4. Angle the I/O Baseboard such that the side with the two
extraction/installation levers lowers into the chassis first.
5. Slide the lever end of the I/O Baseboard against chassis frame then lower
the connector end into the chassis.
6. Slide the I/O Baseboard towards the Sideplane until lever aligns with the
locking slots.
