Chapter 4 Installing Mass Storage Devices
32
3. While grasping only the drive carrier handle, firmly push the assembly
into the bay until the drive docks with the backplane connector and the
carrier latch locks.

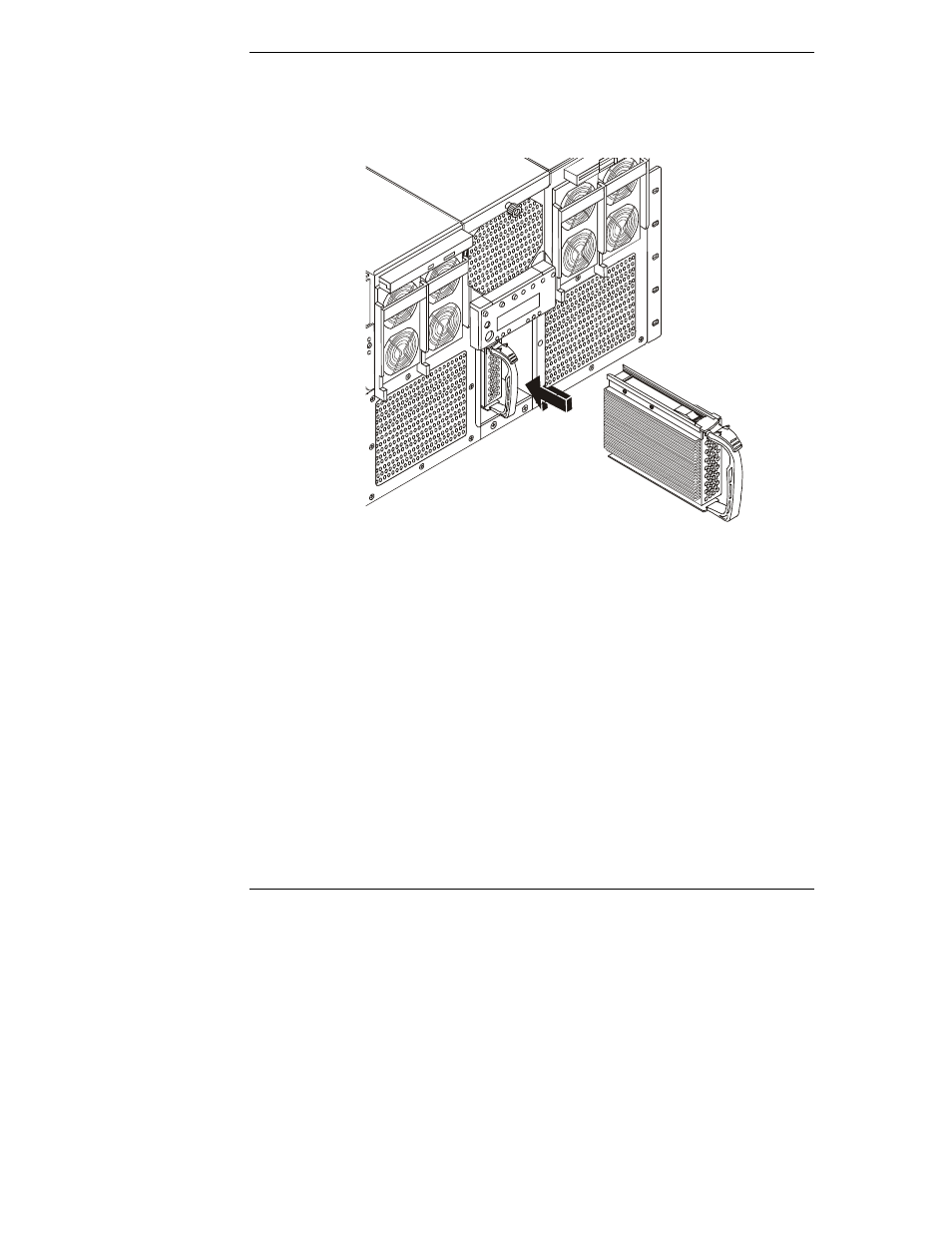

Figure 4-2 Hot Swapping a SCSI Drive
4. Replace the plastic bezel on the front of the server.
Installing Non-Hot Swap Drives
The HP Server supports a slimline IDE diskette drive for 1.44 MB and 120 MB
media and a DVD drive. Both drives are part of the standard configuration and
mount directly above the power bays on the front of the chassis. The drives are
mounted on removable trays that facilitate system assembly and service. The
server must be powered down to install these drives.
Installing the Floppy Disk Drive
The floppy disk drive is housed in a two-piece drive carrier assembly that rests on
the chassis surface. The assembly is accessible when the top cover is removed.
The following procedures describe how to remove and install the drive.
