Appendix A Specifications
208
SCSI
There is one external SCSI connector on the back of the server.
Pin 34
Pin 68
Pin
Pin 35

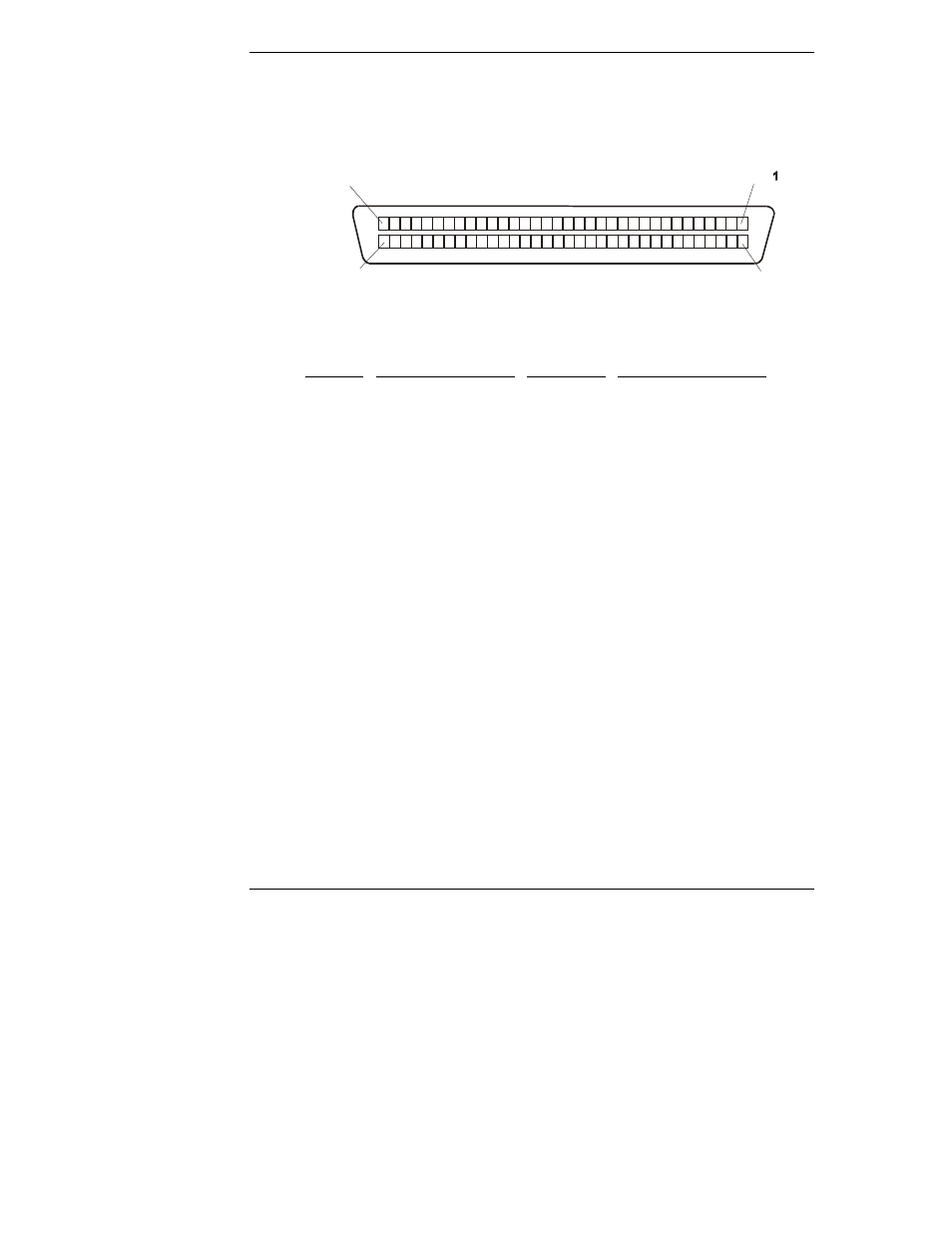

Figure A-7. SCSI Connector
Table A-11. Wide SCSI Connector Pinout
Pin Signal Pin Signal
1 S1 (+DB 12) 35 S35 (-DB 12)
2 S2 (-DB 13) 36 S36 (-DB 13)
3 S3 (+DB 14) 37 S37 (-DB 14)
4 S4 (+DB 15) 38 S38 (-DB 15)
5 S5 (+DB P1) 39 S39 (-DB P1)
6 S6 (+DB 0) 40 S40 (-DB 0)
7 S7 (+DB 1) 41 S41 (-DB 1)
8 S8 (+DB 2) 42 S42 (-DB 2)
9 S9 (DB 3) 43 S43 (-DB 3)
10 S10 (+DB 4) 44 S44 (-DB 4)
11 S11 (+DB5) 45 S45 (-DB 5)
12 S12 (+DB 6) 46 S46 (-DB 6)
13 S13 (+DB 7) 47 S47 (-DB 7)
14 S14 (+DB P) 48 S48 (-DB P)
15 S15 49 S49
16 S16 (DIFFSENS) 50 S50
17 S17 (TERMPWR) 51 S51 (TERMPWR)
18 S18 (TERMPWR) 52 S52 (TERMPWR)
19 S19 (RESERVED) 53 S53 (RESERVED)
20 S20 54 S54
