RETRIEVE 622 CRS STATUS
Summary: This procedure defines the information retrieved from the shelf level GUI card status
display for the 622 CRS card. User must have the GUI launched and accessed the shelf level
GUI display per NTP-007 prior to performing this procedure.
1. Double click on the 622 CRS card located in the shelf level GUI “Chassis View” at the top
of the window.
2. Click the small block between the Status and Configuration sections and drag it downwards
to view all the status information. Refer to Table 796-1 for definitions of status information
provided.
3. Select the Close button to close the screen and return to the shelf view.
Stop! You have completed this procedure.

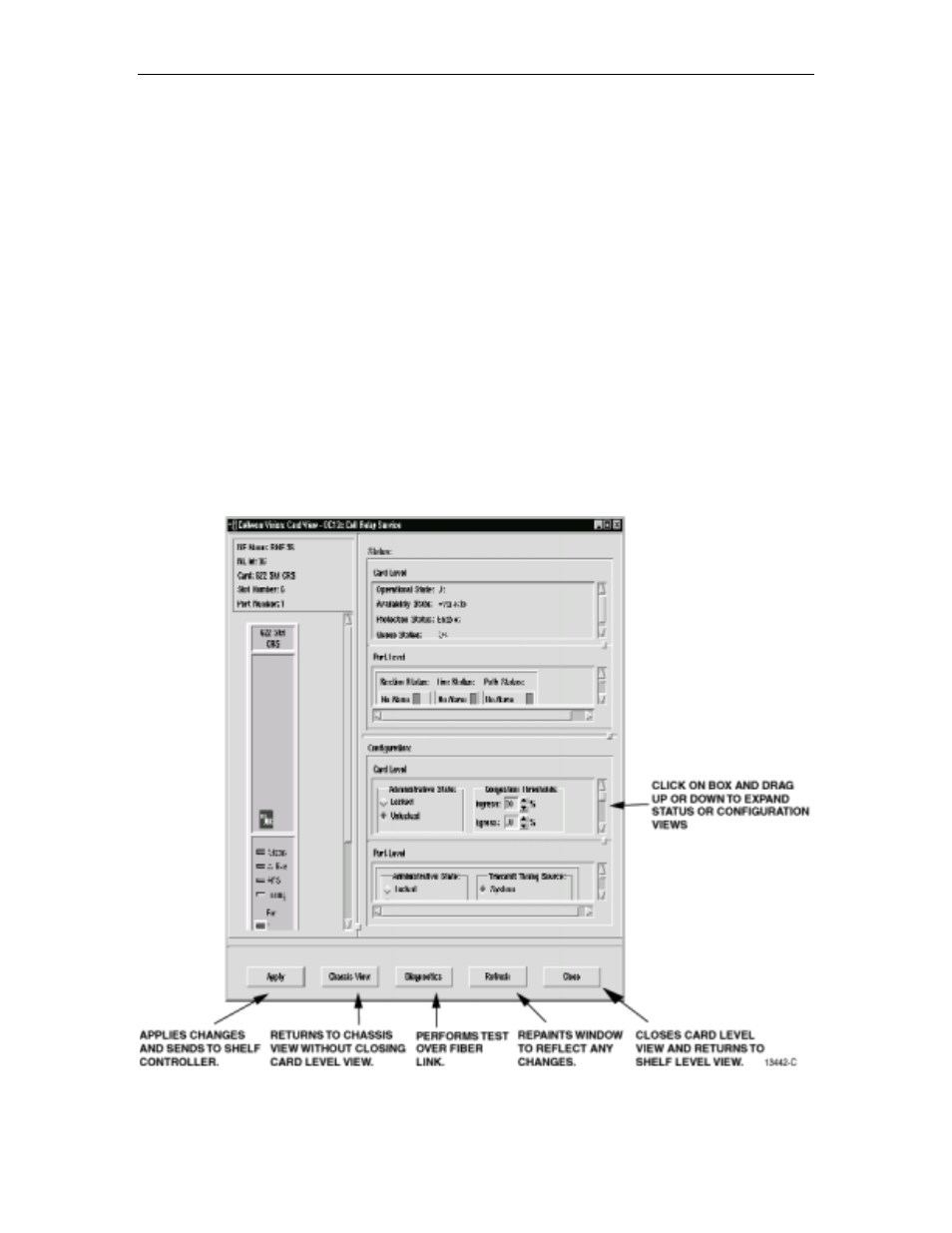

Figure 796-1. 622 CRS Card Status Window
