Cellworx Vision: Connection Configuration X
Connection Name:
Connection Type: ATM VP - ATM VP
NE-1 <--> NE-2
Apply
NE-1
UNI: ds1ces: S-3: P-3: L-atm: I-1 VPI: 1
Ingress Traffic Contract:
UNI: Slot8:Port1 OC3SM VPI: 5
Ingress Traffic Contract:
DISPLAYS NAME AND TYPE
OF SELECTED CONNECTION.
SELECT A QOS CLASS.
VERIFY INTERFACE AND VPI
BEING CONFIGURED.
SELECT A TRAFFIC CONTRACT
FROM AVAILABLE LIST OR
SELECT NEW TO CREATE A
NEW TRAFFIC CONTRACT.
VERIFY DESTINATION INTERFACE
AND VPI BEING CONFIGURED.
SELECT A TRAFFIC CONTRACT
FROM AVAILABLE LIST OR
SELECT NEW TO CREATE A
NEW TRAFFIC CONTRACT FOR
DESTINATION NE. SAME TRAFFIC
CONTRACT CAN BE USED FOR
BOTH NEs.
NE-1
SELECT A QOS CLASS.
SELECT APPLY TO CONFIGURE
THE NEW CONNECTION.
Close << Previous Refresh
Locked
Unlocked
Service Class Type CBR
Service Class Type CBR
14452-A

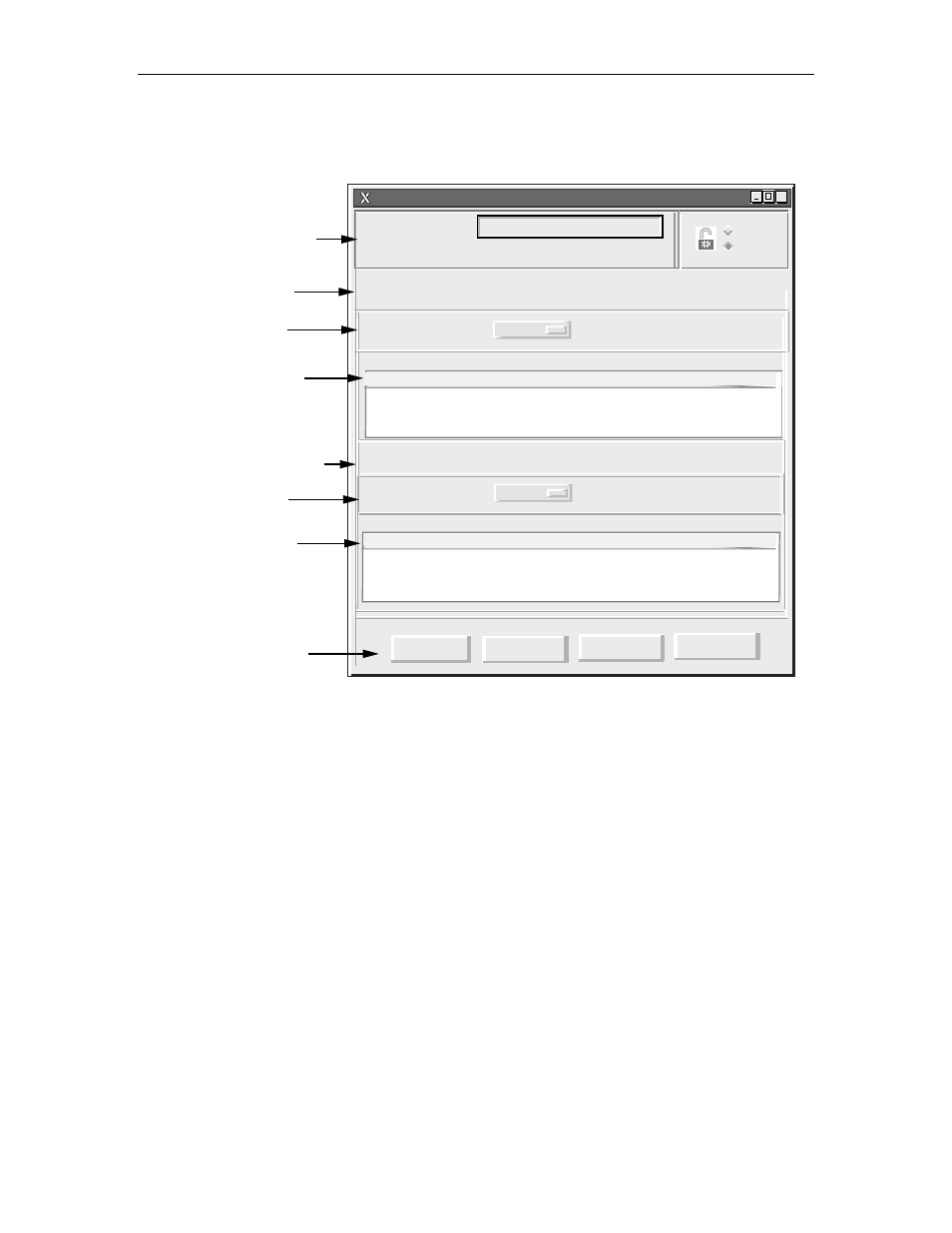

Figure 708-6. Cellworx Vision ATM Virtual Path Connection Configuration
