Cellworx Vision: Frame Relay Interface X
Delete Apply
Node Name:
Node ID:
Location:
NE-2
4
Broadway
Slot Number:
Card:
Port Number:
6
FT1 FRS
4
Double click on an interface to display it.
Select a channel number with the left mouse button to start channel selection.
Select a channel number with the right mouse button to end channel selection.
Select a port to switch ports.
Port Channel
1
2
3
4
X
X
X
X
1 2 3 4 5 6 7 8 9
Interface selection enabled
Interface creation allowed
Interface Name:
Interface Contact:
Interface Location:
Recording Interface Id:
Operational Status:
Provisioned Endpoints:
DLCI Length:
Used Bandwidth:
Ingress: % Egress: %
Effective Bandwidth: %
Interface Type: IWF Type:
UNI NNI FRF.5 FRF.8
Refresh Card View Close
DS0-E0 FRS : Slot 04 : Port 01 : Channels 01-24
default
default
0000000000000000
Up
0
2 Octets 10 Bits
0.00 0.00
100.00
Signaling Parameters
Signaling Protocol:
None LMI Rev1 Annex D: ANSI T1.617D Annex A: CCITT Q
2
Current
1
SELECT THE FIRST
CHANNEL AND/OR THE
LAST CONTIGUOUS
CHANNEL TO CREATE
AN INTERFACE.
DOUBLE-CLICK ON
A PORT TO CHANGE
TO THAT PORT FOR
INTERFACE CONFIG-
URATION.
SELECT THE APPLY
BUTTON AFTER CREATING
EACH INTERFACE ON THE
PORT.
DELETES THE INTERFACE
SHOWN AS "CURRENT"
ABOVE. RETURNS TO THE
CARD VIEW. REFRESHES
SCREEN
DATA. CLOSES THE WINDOW
AND RETURNS TO THE
CARD VIEW WINDOW.
DISPLAYS NE AND
CARD TYPE/SLOT
INFORMATION.
0026-012

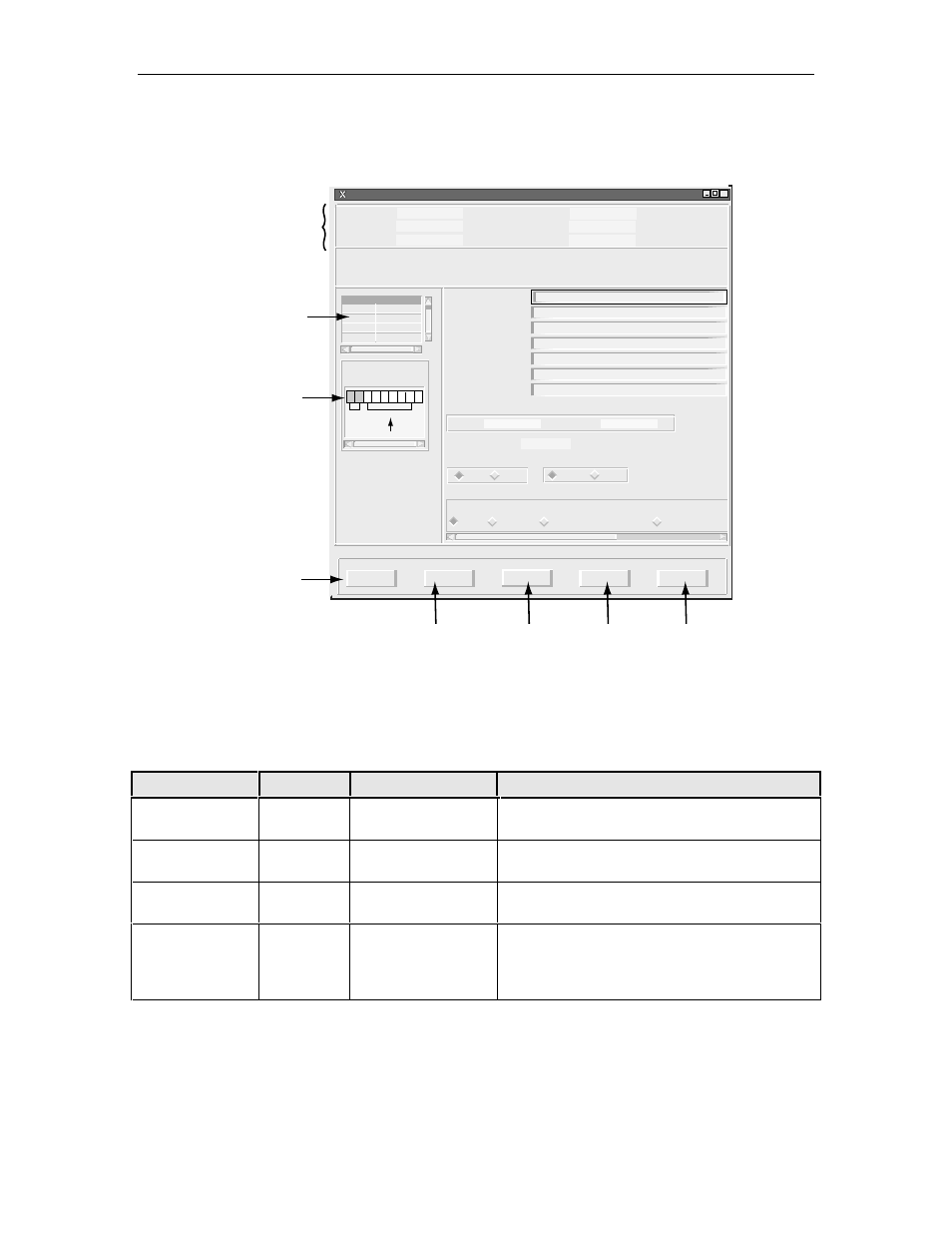

Figure 784-4. FE1 FRS Interface Configuration Window
Table 784-3. FE1 Frame Relay Interface Configuration Options
SELECTION DEFAULT OPTIONS DEFINITIONS
Interface Name Any alphanumeric
characters. User defined. Can describe the card type, slot,
port, and/or channel number, etc.
Interface Contact Any alphanumeric
characters. User defined. Can describe the name or number
of a contact person or place.
Interface
Location Any alphanumeric
characters. User defined. Can describe the location of the
interface (street, building, row, rack, shelf, etc.)
Recording
Interface ID All 0s Numeric Identifies the site card and port location for
customer billing capabilities, (allows assignment
of a customer ID for each port), limited to 15
numeric characters.
