ADC Release 3.1 - Manual (Page 301)

1152700 • Issue 1 • February 2001 • Section 2 Operations and Maintenance
Page 2-281
© 2000, ADC Telecommunications, Inc.
DLP-763
Page 1 of 3
RETRIEVE 155 RING CARD STATUS
Summary: This procedure defines the information retrieved from the shelf level GUI display for
the 155 Ring card status. User must have the GUI launched and accessed the shelf level GUI
display per NTP-007 prior to performing this procedure.
1. Double click on the 155 Ring card located in the shelf level GUI “Chassis View” at the top
of the window. These should be in slots 16 and 17.
2. The 155 Ring card display appears as shown in Figure 763-1. Click the small block
between the Status and Configuration sections and drag it downward to view all the status
information. Refer to Table 763-1 for definitions of status information provided.
Stop! You have completed this procedure.
Cellworx Vision: Card View - 155 Ring Interface Card
Status:
Apply Chassis View Refresh Close
X
Card Level
Operational State:
Availability State:
Protection State:
Port Level
NE Name: Cellworx1
NE Id: 16
Card: 155 Ring
Slot Number: 16
Port Number: 1
Status
Active
1
Port
ADC
155
Ring
Up
Available
Not Protected
Section Status: Line Status: Path Status:
No Alarm
TC Alarm Status: No Alarm
Configuration:
Port Level
Timing
LOF
LOS
No Alarm No Alarm
AIS
RDI
STS LOP
STS AIS
STS RDI
Unequipped
Signal Label
Mismatch
Synachronization Status: ST3
Recieve Path Trace:
Diagnostics
APPLIES CHANGES
AND SENDS TO SHELF
CONTROLLER. RETURNS TO CHASSIS
VIEW WITHOUT CLOSING
CARD LEVEL VIEW. REPAINTS WINDOW
TO REFLECT ANY
CHANGES. CLOSES CARD LEVEL
VIEW AND RETURNS TO
SHELF LEVEL VIEW. PERFORMS TEST
OVER FIBER
LINK.
CLICK ON BOX AND DRAG
UP OR DOWN TO EXPAND
STATUS OR CONFIGURATION
VIEWS. NE15 Slot 16 Port1 (OC3)
0026-052

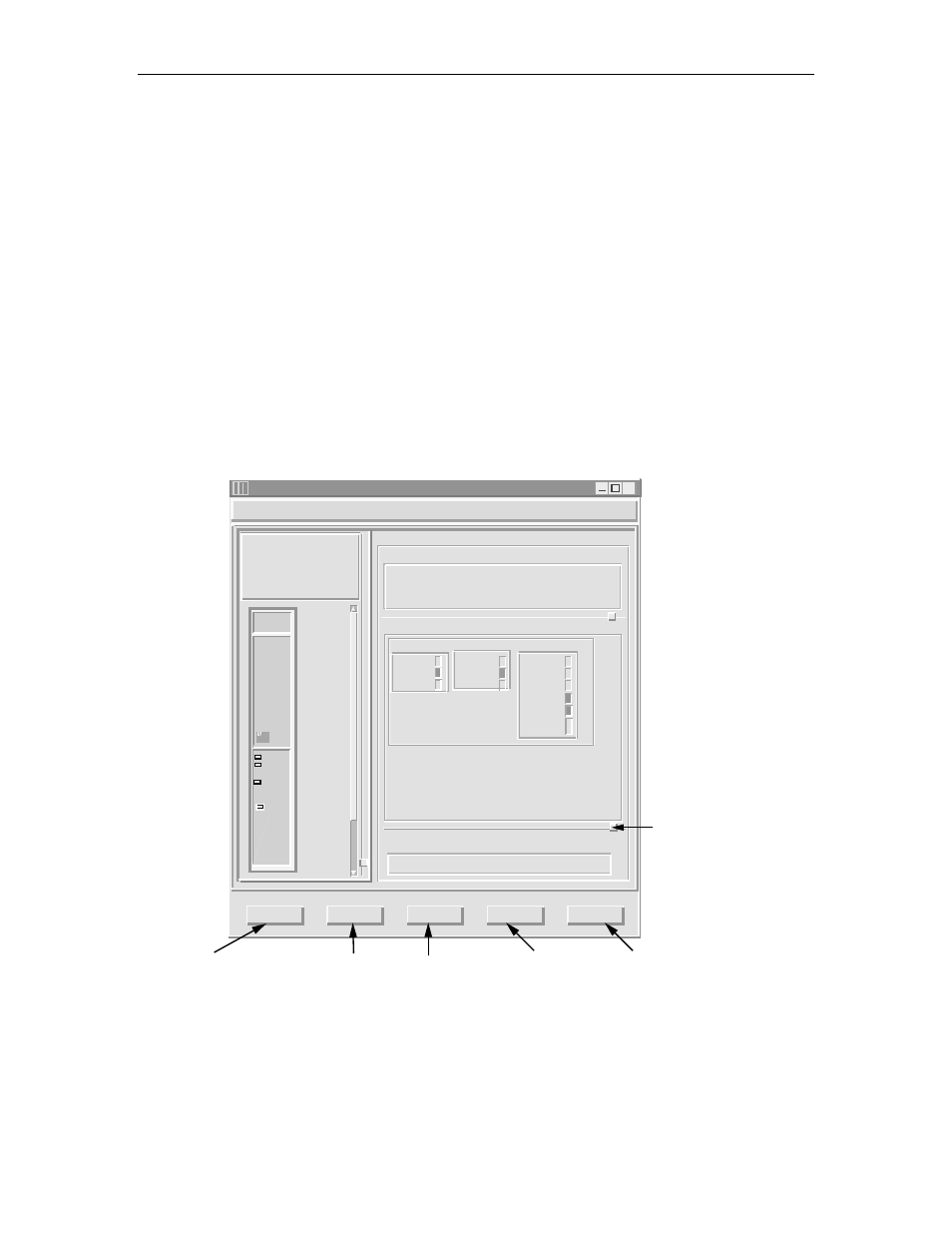

Figure 763-1. 155 Ring Card Status Display
