CONFIGURE NE ALARM THRESHOLD
Summary: This procedure describes the steps necessary to set the alarm reporting thresholds for
each NE in the network. The alarm threshold setting determines the minimum alarm severity for
a node to report to the GUI screen, for instance, if a node was set to Major, any minor conditions
would not be reported via the GUI screen icon for that node.
1. From the GUI main screen, select Fault to open the pull down menu, and select
Configure NE Alarm Threshold either using the mouse or by entering Alt+A, and Alt+C.
Refer to
Figure 717-1 . The user may also right click on an NE and select the Configure
Threshold Alarm option.
2. The Cellworx Alarm Threshold Configuration window appears. Refer to Figure 717-2 .
Select a node from the list provided under Domain.
3. Select the lowest alarm severity to be emitted from the selected node from the list
provided on the right. Refer to
Table 717-1 for definitions of each severity.
4. Select Apply to enable the new parameters. A confirmation window should appear
similar to
Figure 717-3 . Dismiss the confirmation window by clicking OK and close the
Alarm Threshold Configuration screen.
Stop! You have completed this procedure.
Cellworx Vision Subnetwork Management System
File Configuration Fault Performance
E
Alarms
NMIC Protection Restoration
NMIC Protection
Configure NE Alarm Threshold...
10916-D

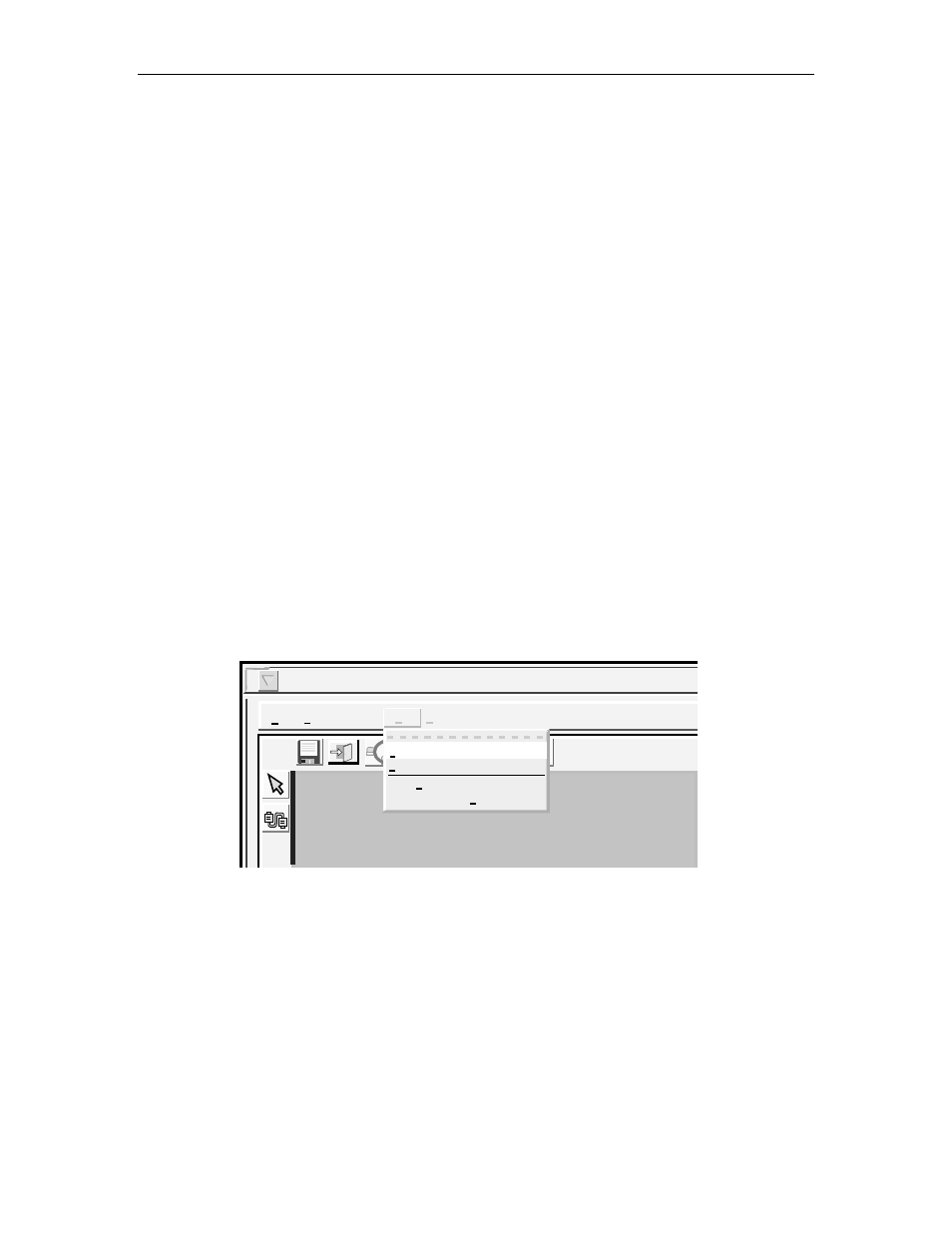

Figure 717-1. Cellworx Vision GUI Fault Pull Down Menu
