ADC Release 3.1 - Manual (Page 117)

1152700 • Issue 1 • February 2001 • Section 2 Operations and Maintenance
Page 2-97
© 2000, ADC Telecommunications, Inc.
DLP-710
Page 6 of 6
Cellworx Vision Subnetwork Connection Configuration X
Connection Name :
Connection Type : ATM VP - ATM VP
Administrative State:
Locked
Unlocked
****************
Network Element: NE-1
UNI/NNI: Slot13_Port1 OC3MM
VPI: 1
Segment Endpoint
Test Type:
Loopback Location ID:
Insert Loopback Cells:
Test Status: None
1111111111111111
Towards Acess Facility
No Test
Test Status Abort test
Network Element: NE-2
UNI/NNI: Slot2_Port1 OC3MM
VPI: 4
Segment Endpoint
Test Type:
Loopback Location ID:
Insert Loopback Cells:
Test Status: None
1111111111111111
Towards Acess Facility
No Test
Test Status Abort test
Close
10995-B
Apply
Ingress NDC
Egress NDC
Ingress NDC
Egress NDC

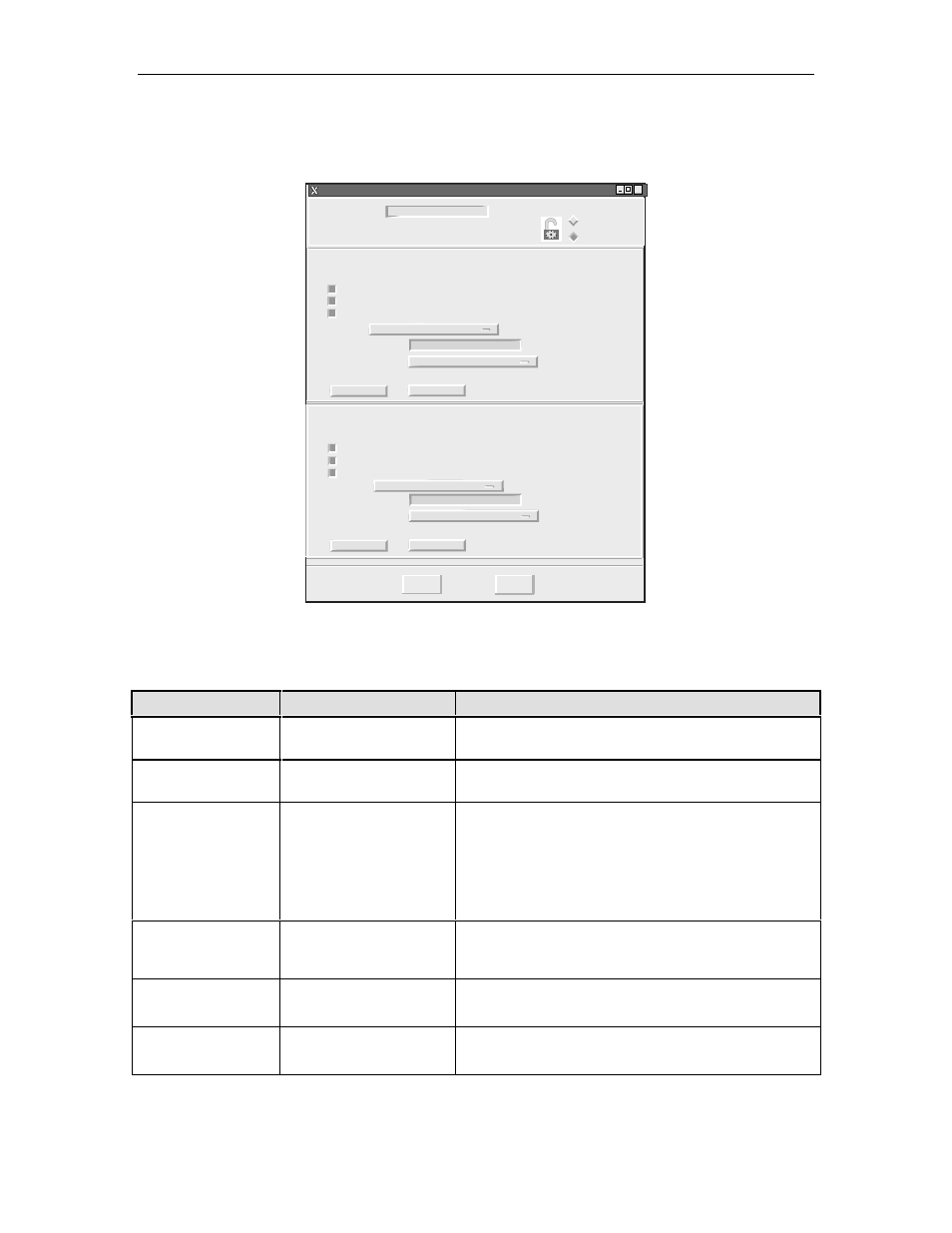

Figure 710-6. Cellworx Vision Subnetwork Connection Configuration Window
Table 710-2. Sub-network Connection Configuration Options
SELECTION OPTIONS DESCRIPTION
Segment Endpoint Single selection box Sets this end of the connection as a segment endpoint
for OAM cells.
Ingress / Egress
NDC On or Off Enables or disables the network data collection for
selected circuit.
Test Type End to End OAM
Segment OAM
Continuity Check Source
Continuity Check Sync
No Test No test is currently being administered.
Loopback Location
ID Customer assigned Used to loopback the incoming signal and transmit it
back to the customer equipment. The code is limited to
16 numeric characters.
Insert Loopback
Cells Towards Access Facility
Towards Ring Facility
Defines the direction for the cells to be transmitted.
Test Status None
Active
Test is not currently active.
Test is currently in progress.
