9. To configure the thresholds, place the cursor in the individual count boxes and type in the
new threshold value. Refer to Table 730-1 for valid values. Once all counts are entered in
each box, select the Apply button at the bottom of the screen to send the new data to the
database.
Stop! You have completed this procedure.
Cellworx Vision: Performance Monitoring Selection Criteria
Close
X
Resource:
NE 1: Cellworx1
NE 2: Cellworx2
NE 4: CellworxEXP
Port Layer Interval
current
00:00 - 00:15
00:15 - 00:30
00:30 - 00:45
01:45 - 02:00
01:00 - 01:15
01:30 - 01:45
01:15 - 01:30
00:45 - 01:00
02:00 - 02:15
Apply
Slot / Card Type
Slot 7 / T3 CRS
Slot 4 / Port 1
Slot 4 / Port 2
NE 3: Cellworx3
Slot 10 / T3 CRS
Slot 4 / Port 3
ATM/TC
Slot 4 / T1 MULTI 1
Slot 5 / E1 MULTI 1
Slot 6 / T3 TMUX MULTI
Slot 12 / 155 MM CRS
Slot 16 / 622 Ring
Slot 17 / 622 Ring
DS1
Slot 4 / Port 4
Slot 4 / Port 5
Slot 4 / Port 6
Slot 4 / Port 7
Slot 4 / Port 8
Slot 4 / Port 9
Slot 4 / Port 10
AAL1
13564-B

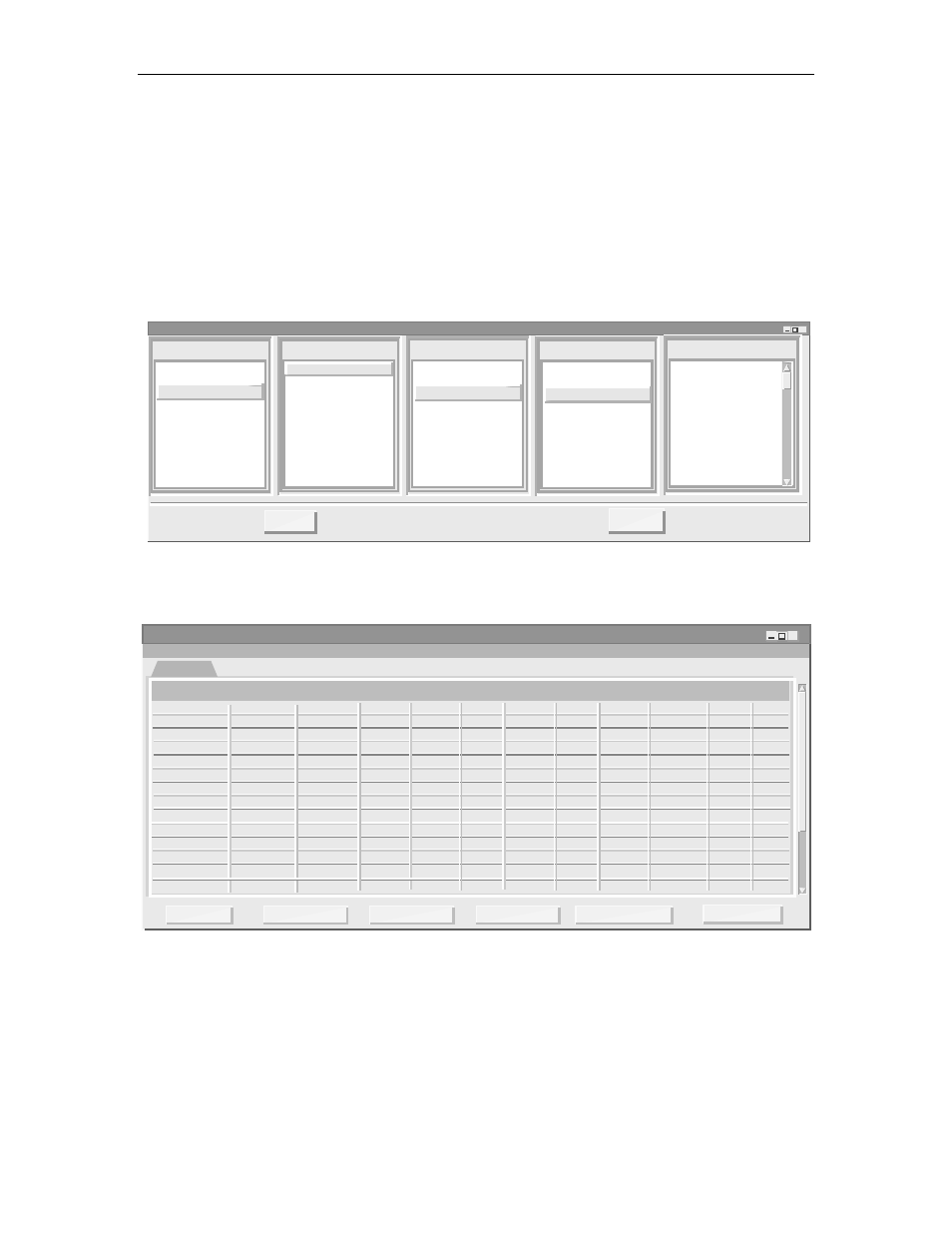

Figure 729-1.T1 Multi 1 CRS PM Selection Criteria Window
Cellworx Vision: Performance Monitoring Data NE 2
Card Type
X
T1 Multi 1 CRS
Resource Interval ESs SESs SEFSs UASs CSSs PCVs LESs
S4-P1 current 0 0 0 0 0 0 0 0 900
DS1
Only non-zero selected intervals are displayed.
13554-B
Refresh All Configure Thresholds Close Refresh Reset Selected Clear Selected
BESs DMs
Figure 729-2. Performance Monitoring Data T1 Multi 1 CRS Port Window
