ADC Release 3.1 - Manual (Page 268)

1152700 • Issue 1 • February 2001 • Section 2 Operation and Maintenance
Page 2-248
© 2000, ADC Telecommunications, Inc.
DLP-754
Page 4 of 7
Cellworx Vision: Card View - T3 TMUX Multi 1 Mother Card
Status:
Apply Chassis View Refresh Close
X
Configuration:
Card Level
Congestion Thresholds:
Ingress:
Egress:
80
80
%
%
Port Level
Administrative State: Service Type:
Locked
Unlocked
Circuit Emulation (CES)
Cell Relay (CRS)
NE Name: Cellworx1
NE Id: 1
Card: T3 TMUX MULTI 1 / TMUX E
Slot Number: 9
Port Number: 1
Circuit Identifier: default
Line Coding: AMI
Status
Active
Protect
1
Port
ADC
T3 TMUX
MULTI 1
Status
Active
Protect
ADC
TMUX
EXP
Slot: 3 Slot: 4
Locked
Unlocked
Line Type:
Extended Superframe
Superframe
CLICK ON BOX AND DRAG
UP OR DOWN TO WIDEN
STATUS OR CONFIGURATION
VIEWS.
Administrative State:
CLICK ON BOX AND DRAG UP
OR DOWN TO WIDEN PORT
LEVEL VIEW.
USE SLIDERS TO VIEW
HIDDEN SELECTIONS.
APPLIES CHANGES
AND SENDS TO SHELF
CONTROLLER. RETURNS TO CHASSIS
VIEW WITHOUT CLOSING
CARD LEVEL VIEW. REPAINTS WINDOW
TO REFLECT ANY
CHANGES. CLOSES CARD LEVEL
VIEW AND RETURNS TO
SHELF LEVEL VIEW.
NE AND CARD TYPE/
SLOT INFORMATION.
CARD REPRESENTATION
WITH REAL TIME ALARM
INDICATIONS.
DS1 CHANNEL LEVEL
CONFIGURATION OPTIONS.
CARD LEVEL
CONFIGURATION OPTIONS.
DS3 Port DS1 Channel
Facility Data Link (FDL):
Loopback Config:
None
Facility Line
Far End Loopback: None
Channel Number: SELECT DS1 CHANNEL
None
TOGGLE BETWEEN DS3 PORT
AND DS1 CHANNEL USING TABS.
14589-A

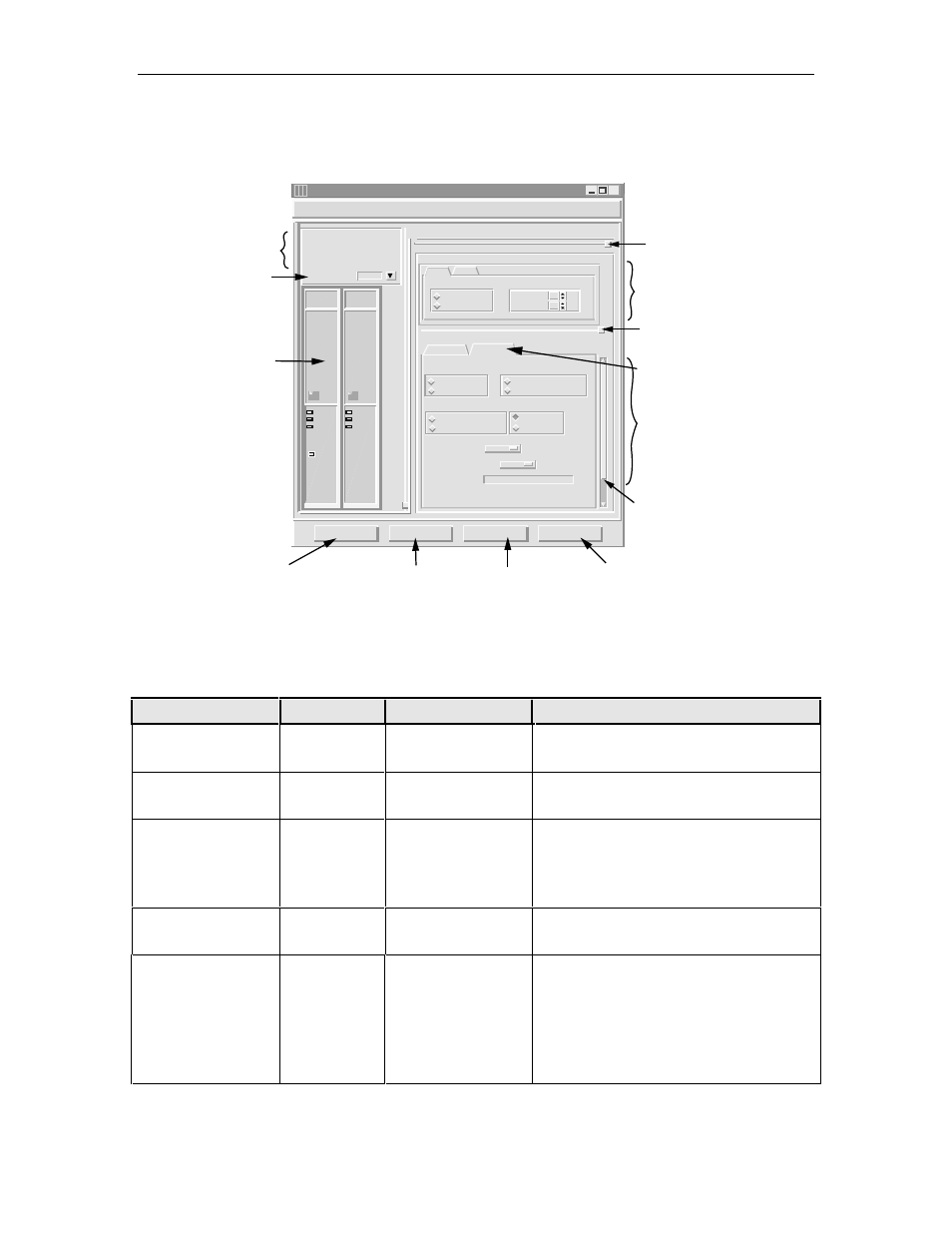

Figure 754-2. T3 TMUX Multi 1 T1 Level Configuration Screen
Table 754-2. T3 TMUX Multi 1 T1 Channel Configuration Options
SELECTION DEFAULT OPTIONS DEFINITIONS
Administrative State Unlocked Unlocked
Locked
Enables or disables channel for service,
respectively.
Service Type CRS CES
CRS
Circuit Emulation Service.
Cell Relay Service.
Line Type Extended
Superframe Extended
Superframe
Superframe
NotApplicable Only for CES mode.
Loopback Config None None
Facility Line
No Loopback has been activated.
Activates a facility loopback.
Far End Loopback None None
Payload
Reset
Line
No loopback has been requested for far
end. Options only available with FDL on.
Requests a Payload loopback for far end.
Resets a loopback at the far end.
Requests a loopback for the line at the far
end.
(continued)
