ADC Release 3.1 - Manual (Page 299)

1152700 • Issue 1 • February 2001 • Section 2 Operations and Maintenance
Page 2-279
© 2000, ADC Telecommunications, Inc.
DLP-762
Page 5 of 6
Cellworx Vision: Card View - T3 TMUX Multi 1 Mother Card
Status:
Apply Chassis View Refresh Close
X
Card Level
Operational State:
Availability State:
Protection State:
Port Level
NE Name: Cellworx1
NE Id: 1
Card: T3 TMUX MULTI 1 / TMUX E
Slot Number: 3 / 4
Port Number: 1
Status
Active
Protect
1
Port
ADC
T3 TMUX
MULTI 1
Up
Available
Unknown
Line State:
Configuration:
Port Level
Recieve:
No Alarm
Rcv AIS
LOF
Loopback State
Rcv Test Code
Other:
Status
Active
Protect
ADC
TMUX
EXP
Slot: 3 Slot: 4
APPLIES CHANGES
AND SENDS TO SHELF
CONTROLLER. RETURNS TO CHASSIS
VIEW WITHOUT CLOSING
CARD LEVEL VIEW. REPAINTS WINDOW
TO REFLECT ANY
CHANGES. CLOSES CARD LEVEL
VIEW AND RETURNS TO
SHELF LEVEL VIEW.
CLICK ON BOX AND DRAG
UP OR DOWN TO EXPAND
STATUS OR CONFIGURATION
VIEWS.
13438-B
DS3 Port DS1 Channel
Other Failure
TC Alarm Status:
LCD Alarm
Channel Number: 1

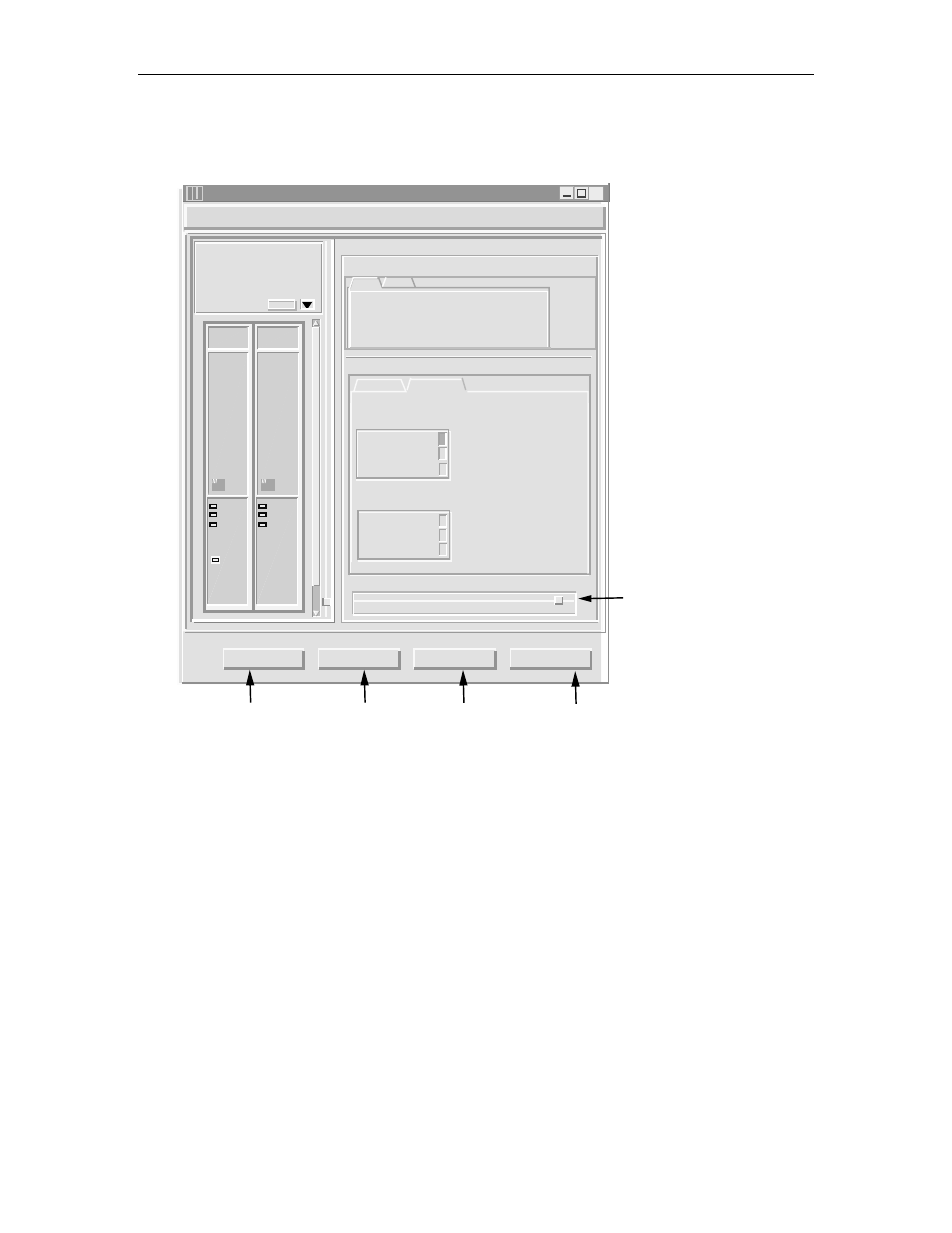

Figure 762-2. DS1 Channel Status Window
