3.1 Technology unit
BU 0700 GB-1411 Subject to technical alterations 23

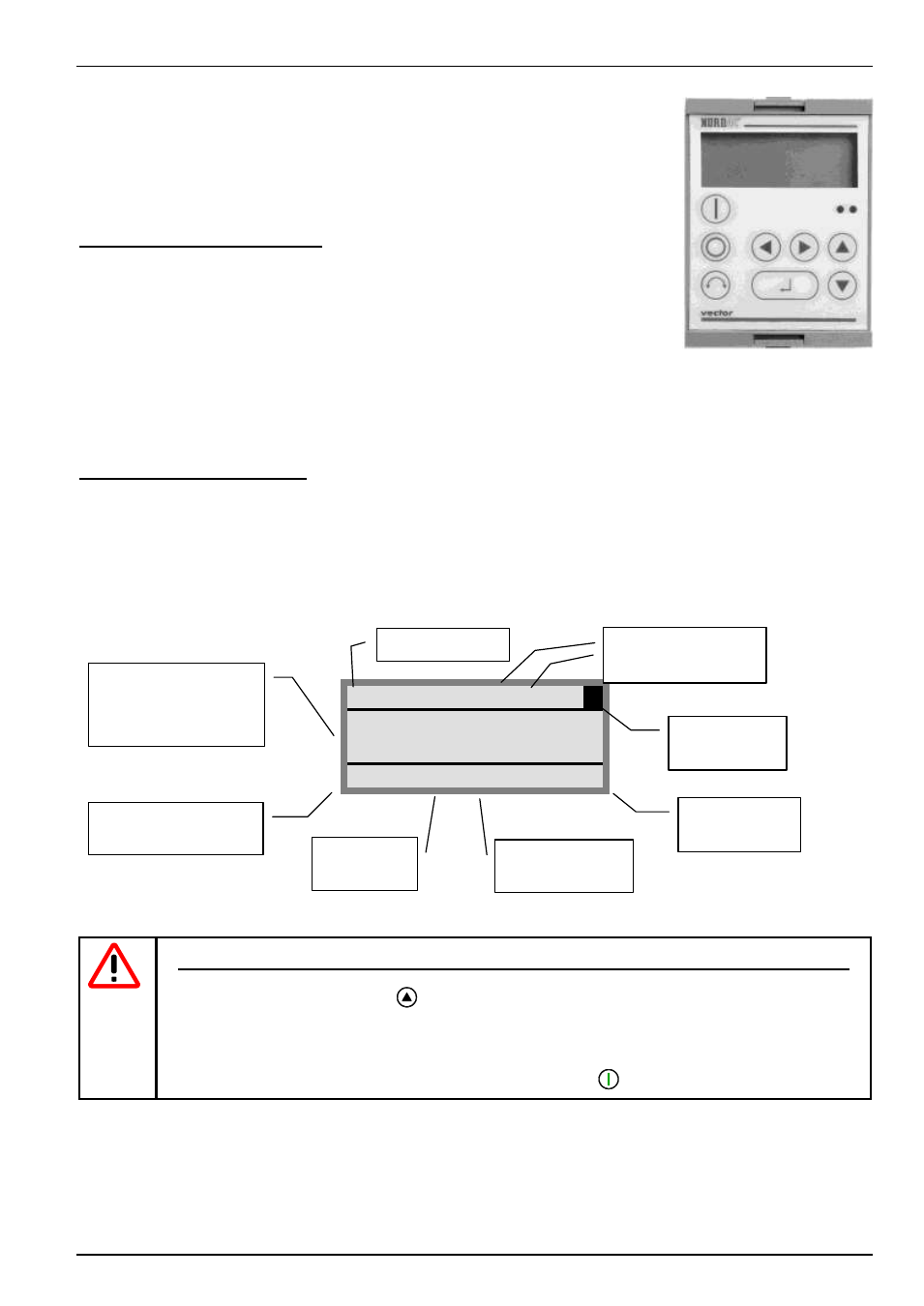

3.1.1 ParameterBox
(SK TU1-PAR, Option)
This option is for simple parameterisation and control of the frequency inverter, as well as the
display of current operating settings and states.
Up to 5 data sets can be stored and managed in this device.
Features of the ParameterBox

Illuminated, high resolution LCD graphics screen

Large-screen display of individual operating parameters

6 language display

Help text for error diagnosis

5 complete inverter data sets can be stored in the memory, loaded and processed

For use as a display for various operating parameters

Standardisation of individual operating parameters to display specific system data

Direct control of a frequency inverter
Mounting the ParameterBox
Following the mounting and switch-on of the ParameterBox, an automatic "Bus scan
" is carried out. The ParameterBox
identifies the connected frequency inverter.
In the display that follows, the frequency inverter type and its actual operating status (if released) are displayed.
In the standard display mode, 3 operating values and the actual inverter status can be displayed simultaneously.
The operating values displayed can be selected from a list of 8 possible values (in the >Display< / > Values< menu).
700E 3,0kW/3 POS STD 1
Fi/Hz U/V I/A
45.0 360 3.4
ONLINE FI P1 R RUNNING
NOTE
The digital frequency setpoint is factory set to 0Hz. To check whether the motor is working, a frequency
setpoint must be entered with the key or a jog frequency via the respective menu level
>Parameterization<, >Basic parameters< and the respective parameter >Jog frequency< (P113)
Settings should only be implemented by qualified personnel, strictly in accordance with the warning and
safety information.
ATTENTION : The motor may start immediately after pressing the START key!
Current actual values for
the selected operating
values and their
applicable units
Actual status of the
ParameterBox
Inverter
selected Active parameters
in inverter
Actual status of
the inverter
Inverter type
Menu structure
level
Special extension unit
customer unit
