Appendix I
228 Seed Hawk™ Viper Pro™ Installation & Operation Manual

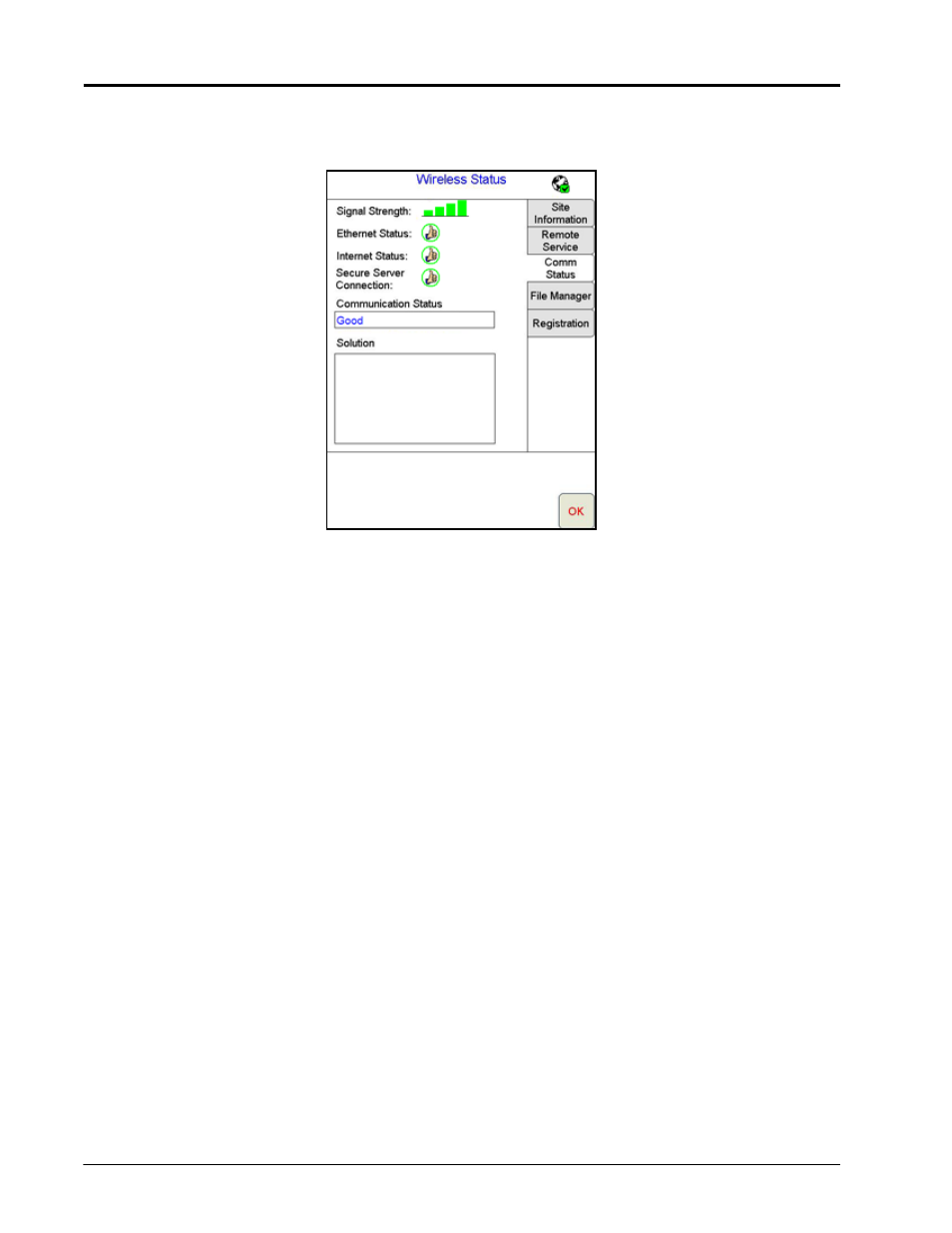

Comm. Status Tab
The connection status tab displays the following information:
• Current Alarms -
Any current communication errors or alerts are displayed in this area.
• Signal Strength -
Displays bars to represent the current strength of wireless signal. Four bars
represent a strong signal.
• Ethernet Status -
Displays the status of the connection via the ethernet port on the back of the
Viper Pro.
• Internet Status -
View the status of communication with the world wide web in this area.
• Secure Server Connection -
The connection status with the secure server is displayed in this
area.
Note:
If any error conditions are encountered, the Communication Status screen will display possible
solutions.
