EZwarePlus Programming Manual 37
3. In the Attribute section, select the following:
Set Style: Press and hold increment (JOG++)
(this will cause the value in the register to increase while the button is pressed)
Inc. value: 1
Upper limit: 100
JOG delay: 0.5 second(s)
JOG speed: 0.1 second(s)

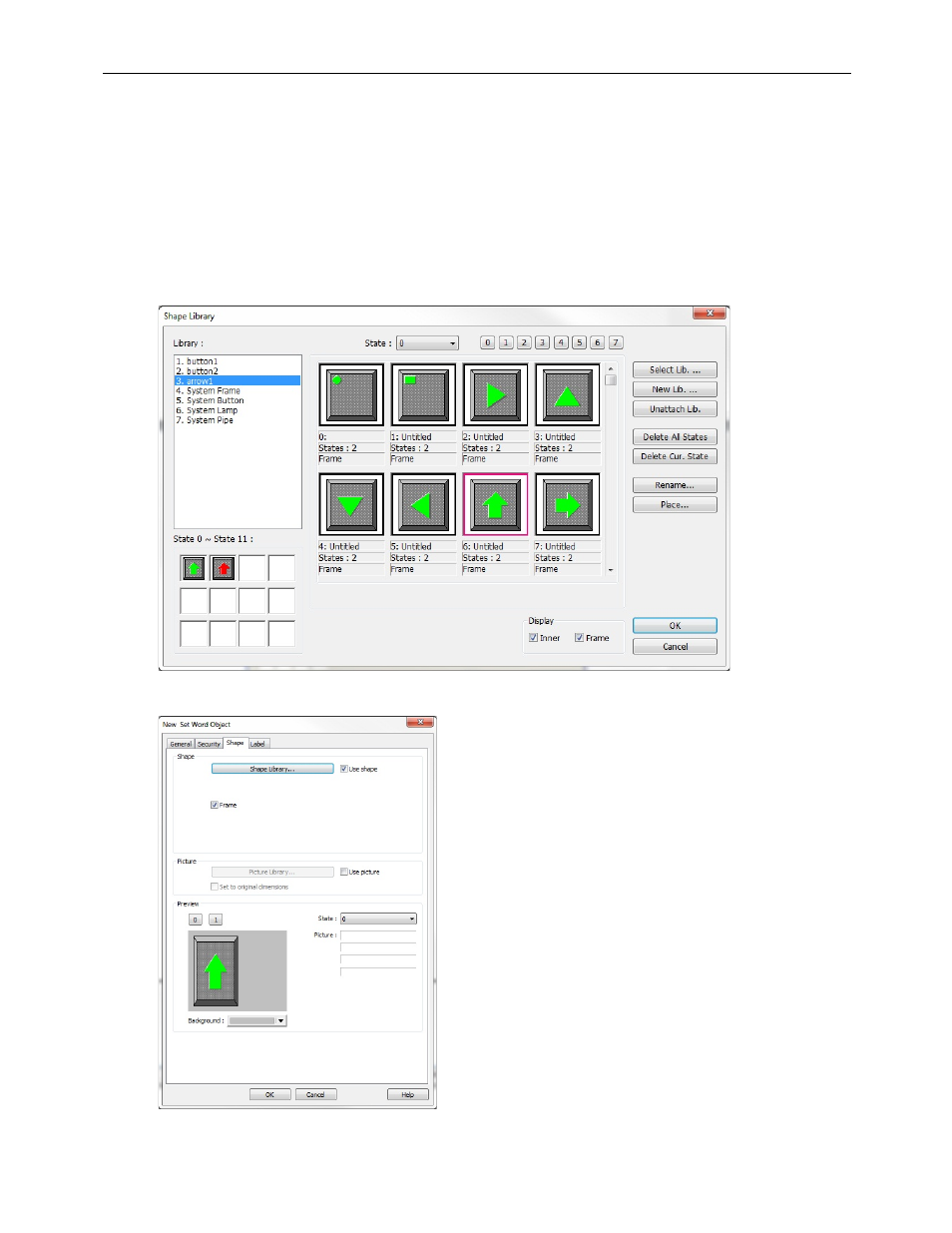

4. Click the Shape tab. Click the Use Shape checkbox and click the Shape Library… button. Select the arrow1
library. Select shape number 6 and click OK.
11. A preview of the selected shape appears in the properties window.
1010-1015, Rev. 03
