Watlow EZwarePlus Programming User Manual
Page 43
EZwarePlus Programming Manual
35

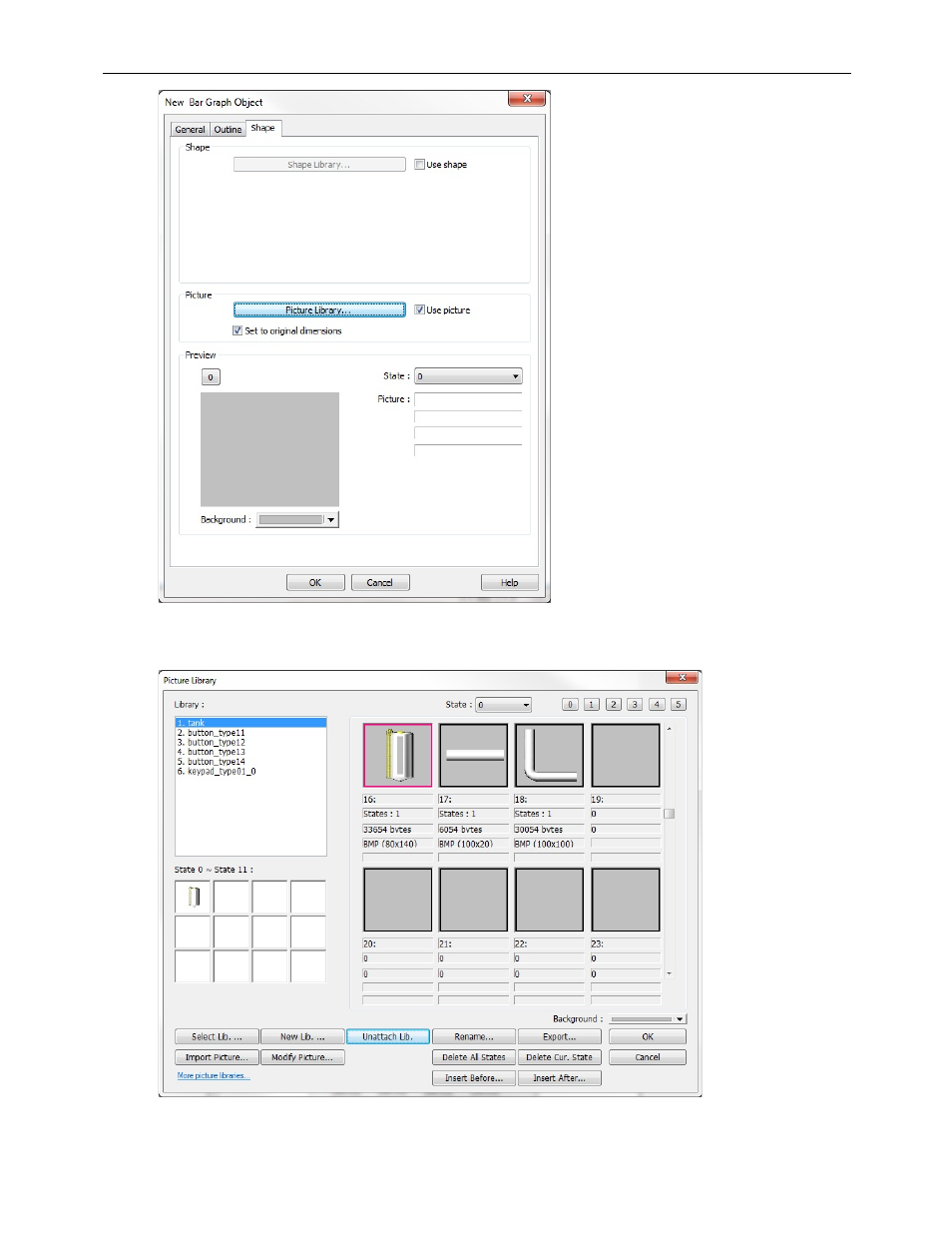

8. Click the Picture Library… button and click the Select Lib… button. Locate tank.flb in the Library folder. Select
it and click Open to add it to the list.
9. Select picture number 16 and click OK. This is the picture that will appear over the bar graph on the screen.
1010-1015, Rev. 03
