Watlow EZwarePlus Programming User Manual
Page 224
216
EZwarePlus Programming Manual

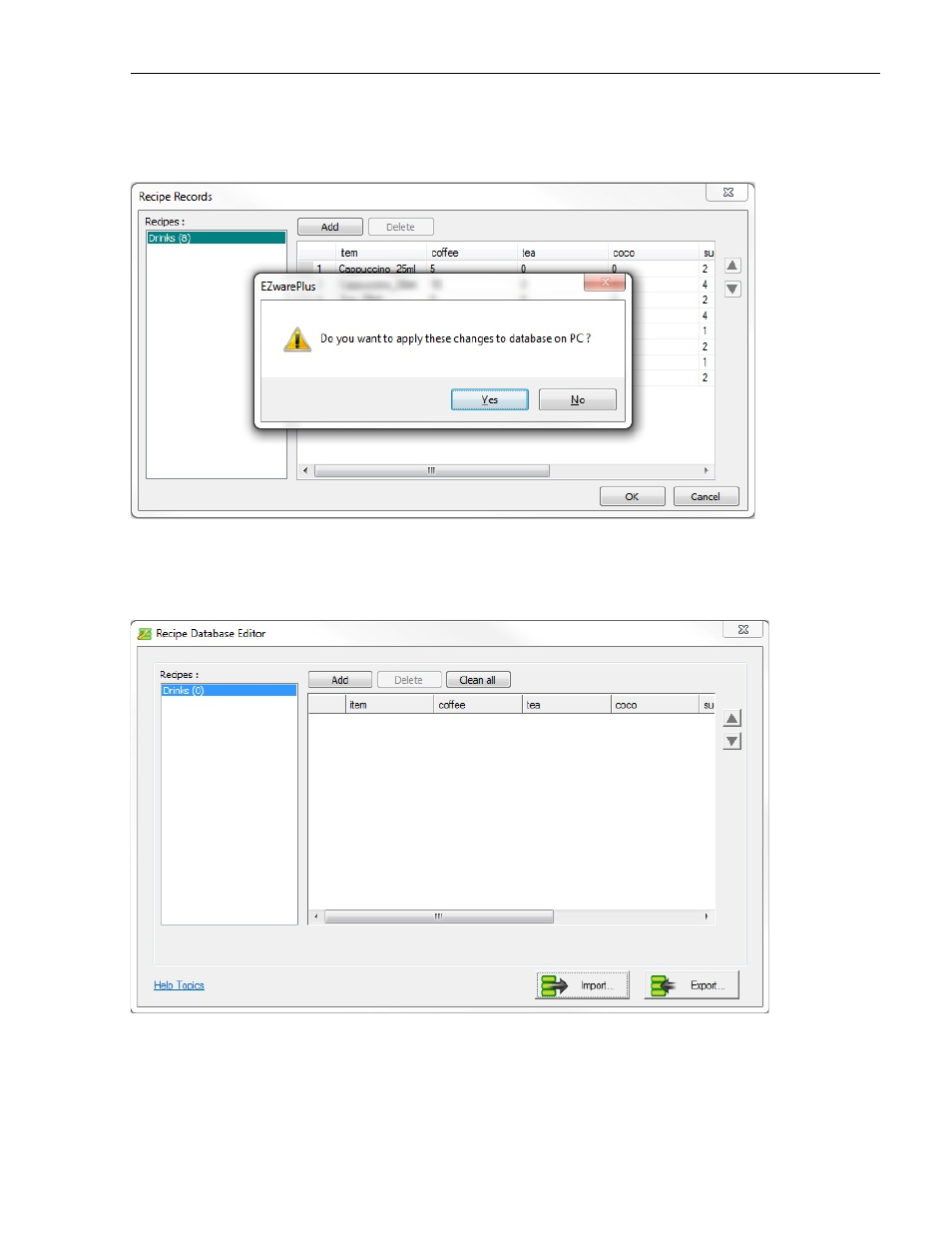

When changes have been made, a popup window will ask if you want to apply the changes to the recipe database. If
you select Yes, the recipe database file will be updated with the changes. This is stored as recipe.db in the EZPlus >
HMI_memory > Recipe folder. If you select No, the database file will not be updated but the data is stored in the MTP
file (and the XOB file when compiled).
Adding and Editing Data in a Recipe in the Recipe Database Editor
The Recipe Database Editor can be used to enter data in a recipe. To open the Recipe Database Editor, click on the
Tools menu in EZwarePlus and select Recipe Database Editor.
Click the Import button to import a recipe definition file (*.rdef) saved from the System Parameters > Recipes tab.
The Item names that were created for the recipe in the System Parameters > Recipes tab appear along the top of the
Recipe Database Editor.
1010-1015, Rev. 03
