234 EZwarePlus Programming Manual

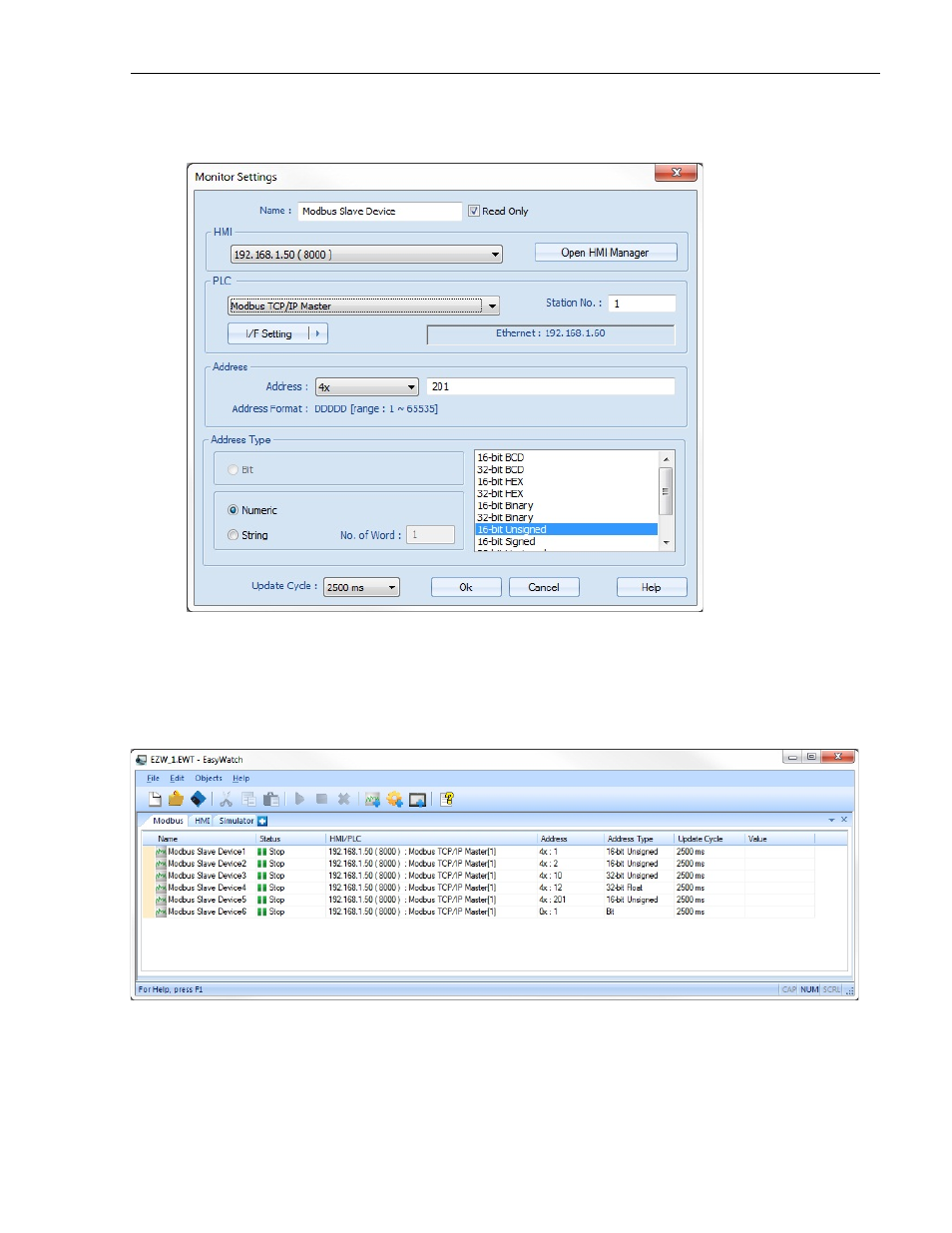

5. Select the PLC to monitor. If you want to monitor a register in the HMI, select HMI5000 Series HMI. If you
want to monitor a register in a PLC connected to the HMI, select the PLC type from the drop-down list and
enter the appropriate communication settings.
6. Select the Address you wish to monitor and the appropriate Address Type.
7. Select the Update Cycle. This determines how often the monitor is updated in EasyWatch, with a range from
500 ms to 5000 ms.
8. Click OK and repeat for each register you want to monitor.
You can create multiple pages in EasyWatch. Click the “+” tab at the top of EasyWatch to create additional pages.
Double-click on the tab name to rename it. In this example, three pages have been created to monitor a Modbus TCP
device, the local HMI, and a Simulator running on the PC.
1010-1015, Rev. 03
