Watlow EZwarePlus Programming - Manual (Page 197)

EZwarePlus Programming Manual 189

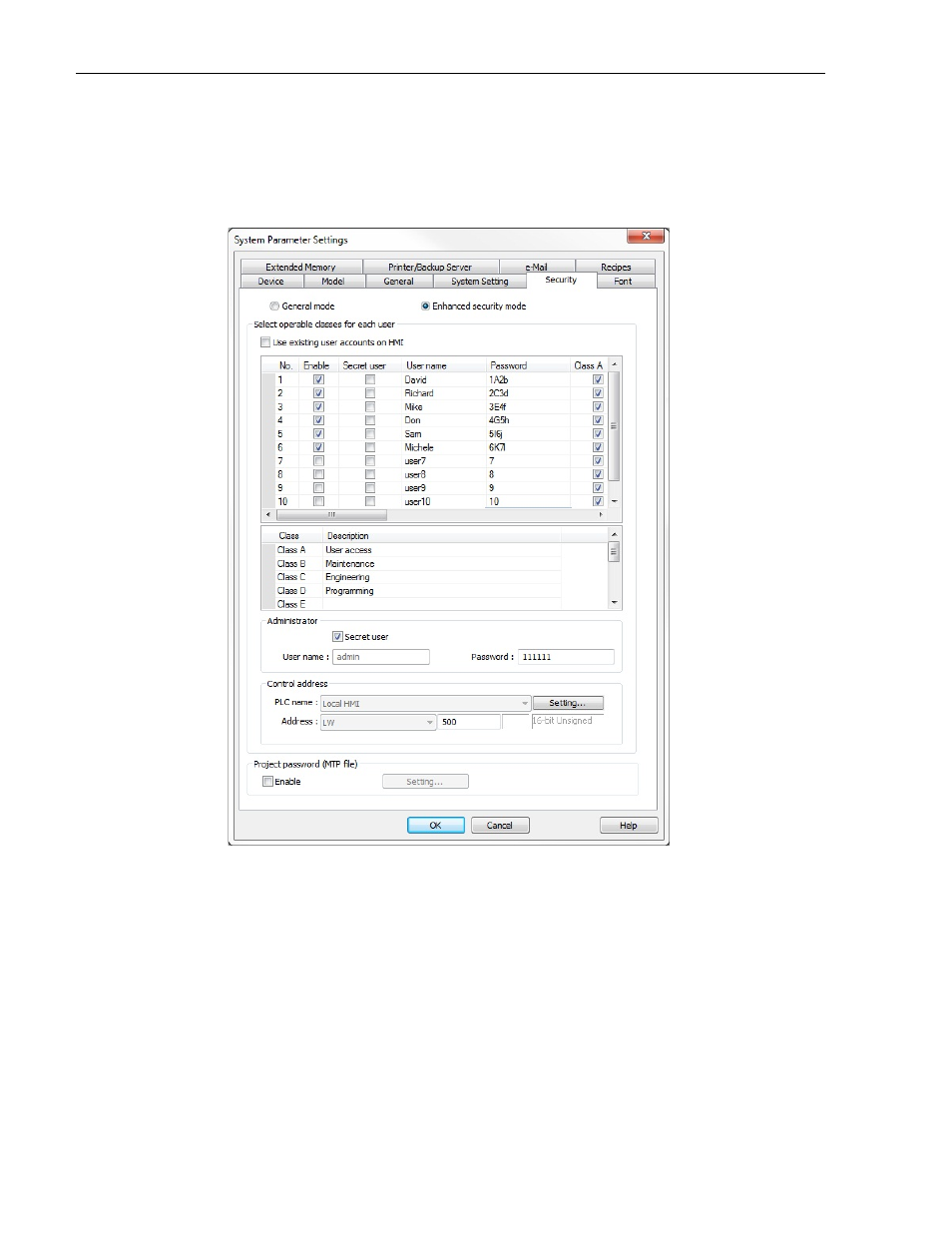

Enhanced Security Mode
When Enhanced security mode is selected, up to 11 users can be enabled along with a default Administrator. Each
user can be assigned up to twelve access classes (A-L). The Administrator has full access (all access classes).
Passwords and User Names can be alphanumeric, which are stored in local memory as assigned by the Control
address (see below for a description of the Control address). The Option List object can be configured to display the
User Names, providing a quick way to select a user to log-in.
Use existing user accounts on HMI: User accounts can be created and stored on a USB flash drive or SD card using
the Administrator Tools and imported into the HMI via a Function Key. Check the Use existing user accounts on HMI
checkbox to use the user accounts already stored in the HMI. This disables the user selection capability in the Security
tab.
When Use existing user accounts on HMI is unchecked, you can enable users by selecting the Enable checkbox for
each user. Enter the User name and Password, and select the access classes for each user. User names and
passwords can be alphanumeric, up to 16 characters long, and are stored in the HMI’s local memory as defined by the
Control address. Passwords are case sensitive.
Selecting Secret user will hide the User name from being displayed in the Option List. The User name would then
have to be manually entered to log in that user. (Note: The Option List does have a Secret User override.)
1010-1015, Rev. 03
