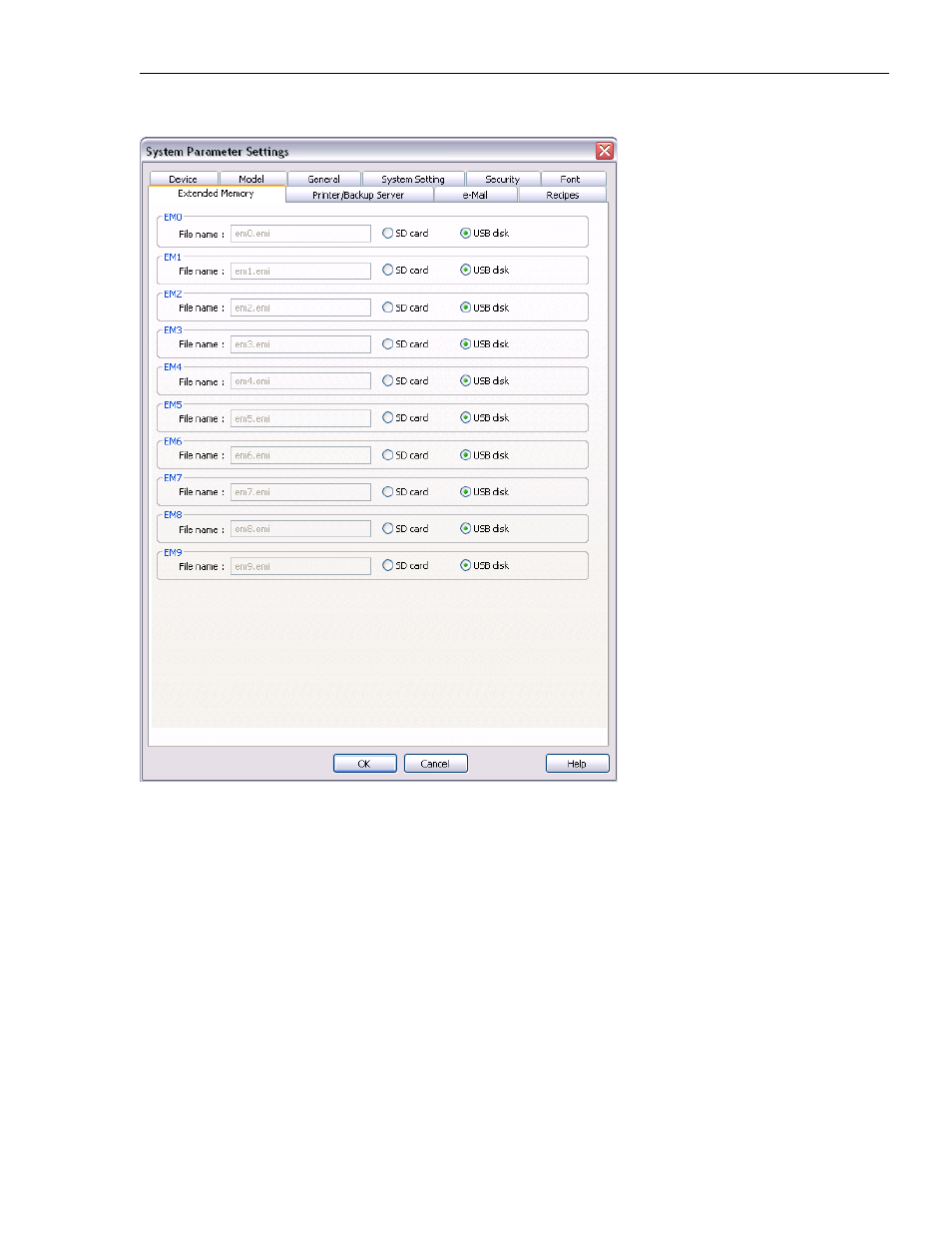

Extended Memory tab settings:

The Extended Memory tab is used to configure the extended memory for saving data to an SD card or USB

flash drive. There are 10 files that can be configured for saving data, em0.emi through em9.emi. Each

extended memory location can be accessed using the Device Type setting in an object’s properties. There is no

address limitation for the extended memory other than the size of the SD card or USB drive connected to the

HMI. The HMI will assume 16-bit data registers for unused addresses, so if address 100 is used for em0.emi,

the memory storage must have at least 200 bytes of available memory.

Extended memory files (*.emi) can be edited and converted to *.csv file format using the Recipe/Extended

Memory Editor, which can be opened with Utility Manager.
