Watlow EZwarePlus Programming User Manual
Page 226

218
EZwarePlus Programming Manual

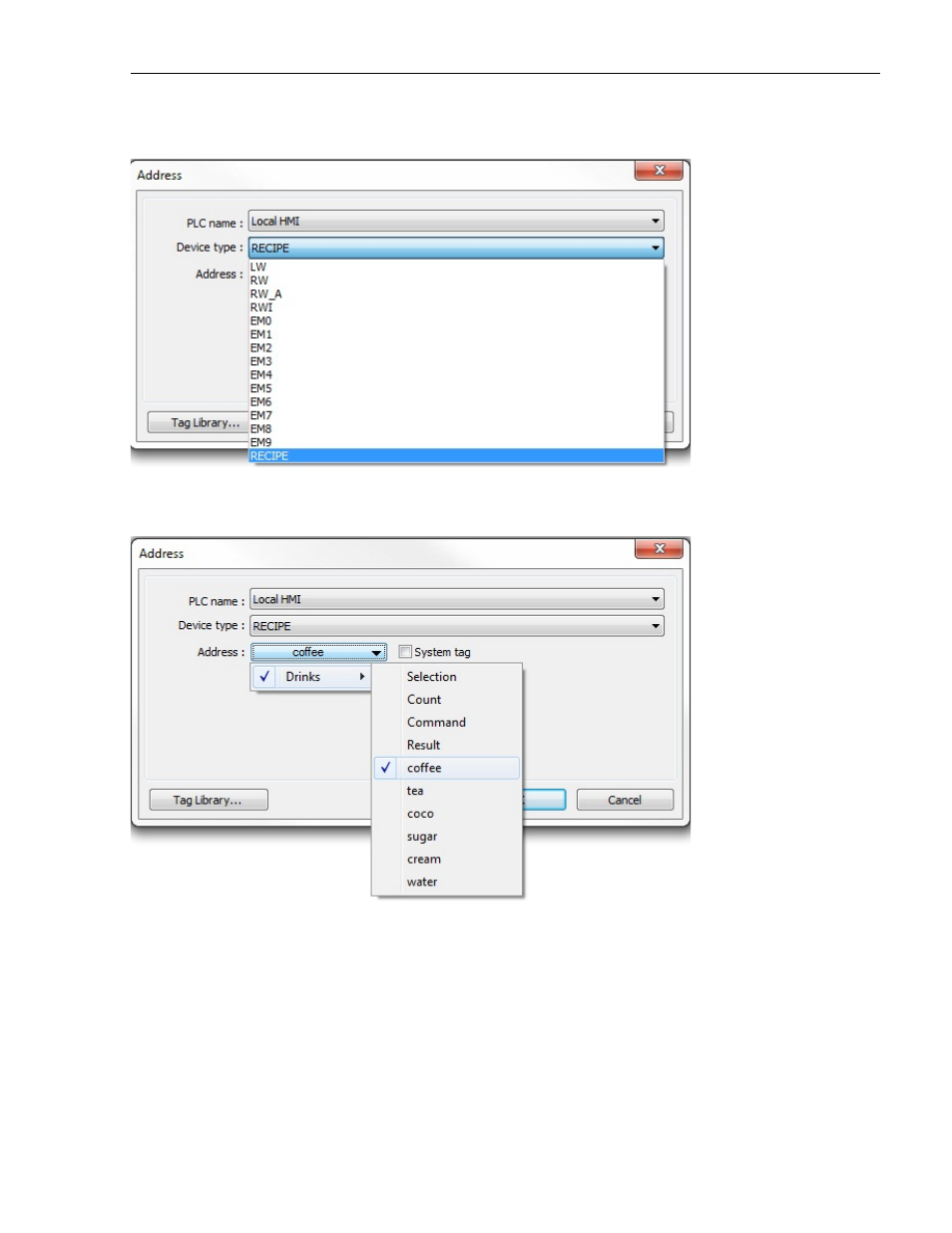

Create a new Numeric Input or ASCII Input object and select Recipe for the Device type.
A recipe must be created in the System Parameters > Recipes tab for the Recipe Device type to be available.
Select the individual item in the Address field. If the item is ASCII, it will only be available in the ASCII Input object. If
the item is numeric, it will only be available in the Numeric Input object.
When a recipe record is selected (highlighted) in the Recipe View object on the HMI or when running the Simulator,
the data for the selected recipe record will appear in the various ASCII and Numeric Input objects on the screen.
There are four additional choices in the Address field for the Recipe Device type in a Numeric Input object.
Selection: This displays the zero-based index of the selected record. Writing a value into this field will set the Recipe
View to that record.
Count: Displays the number of records in the selected recipe.
1010-1015, Rev. 03
