Chapter 17 – easydiagnoser and easy watch, Easydiagnoser – Watlow EZwarePlus Programming User Manual
Page 234
226
EZwarePlus Programming Manual
Chapter 17 – EasyDiagnoser and Easy Watch
EasyDiagnoser is a diagnostic utility that monitors the read and write commands between the HMI and the PLC and
indicates when an error occurs in the communication.
EasyWatch provides a method of displaying and editing registers in the HMI and PLC in a tabular format. An existing
macro in an HMI can also be triggered with EasyWatch for troubleshooting and debugging purposes.
EasyDiagnoser and EasyWatch require an Ethernet connection between the PC and HMI.
EasyDiagnoser

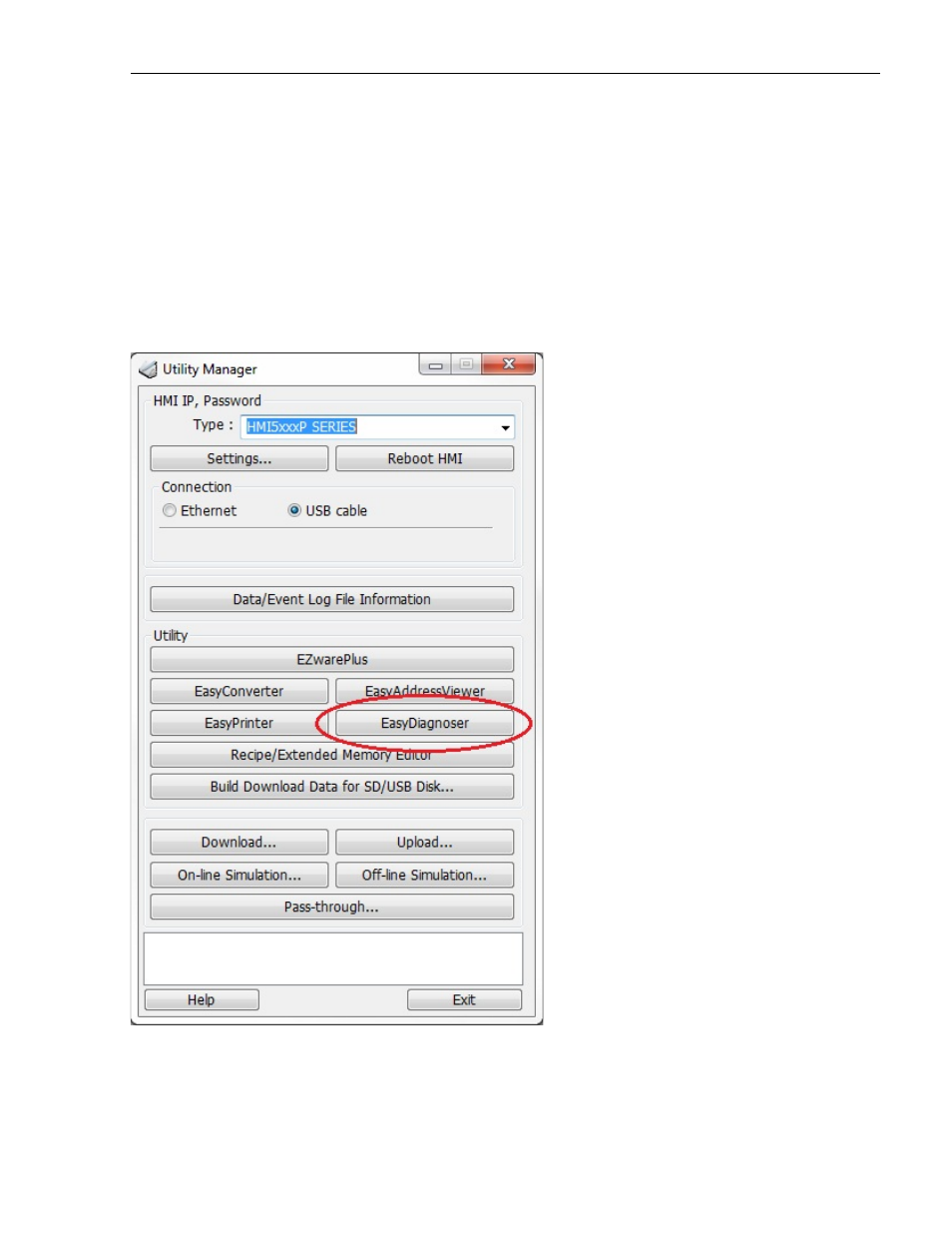

Open EasyDiagnoser from Utility Manager. You can also open it from the Online Simulator by right-clicking on the
simulator window and selecting Run EasyDiagnoser.
