228

EZwarePlus Programming Manual

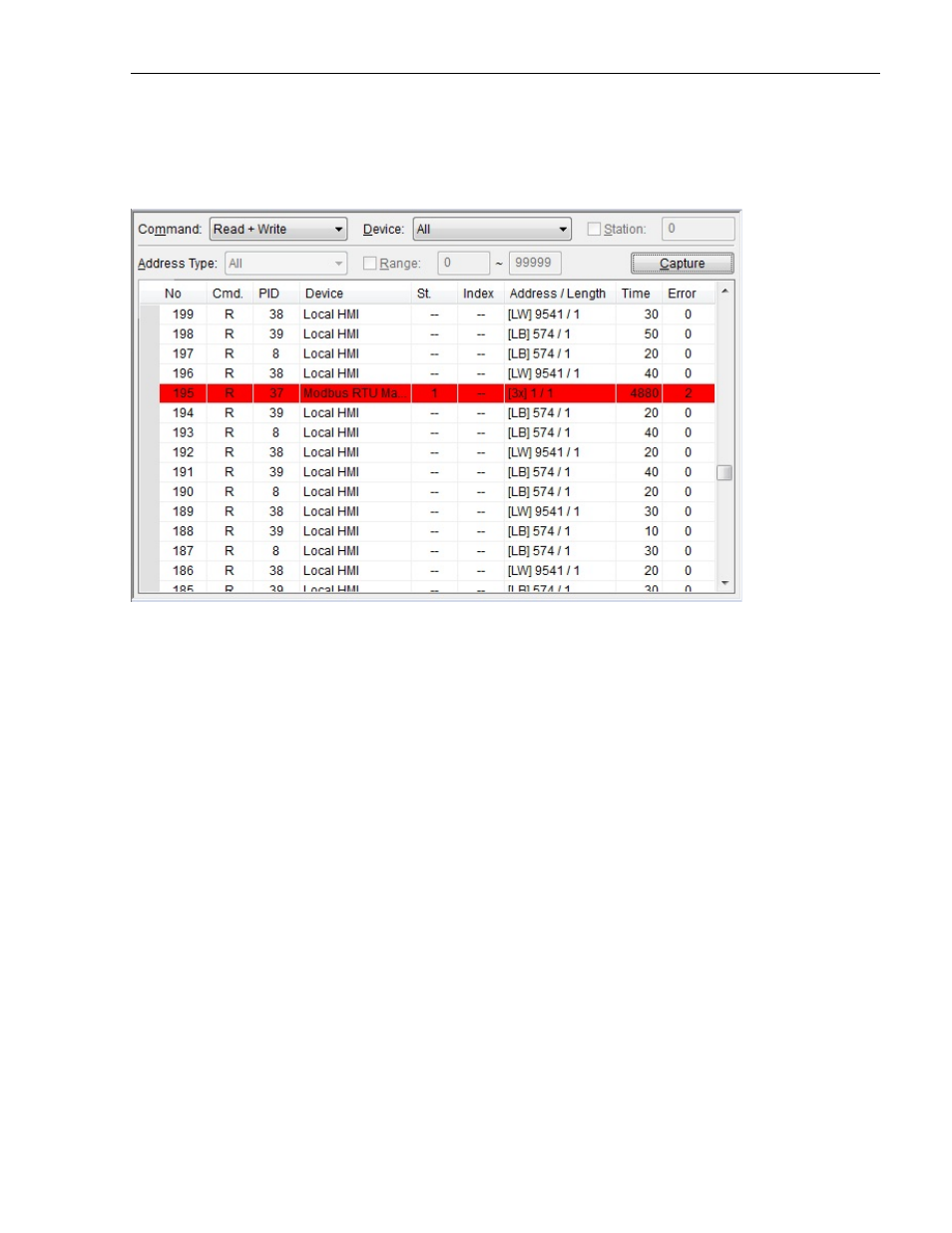

Main Window

The main window in EasyDiagnoser is where you set the parameters for monitoring the communications and see the

results.

To begin monitoring communications:

1. From the Command drop-down list, select whether to monitor Read and Write commands, Read commands

only, or Write commands only. The default is Read + Write commands.

2. In the Device drop-down list, select which device to monitor. Local HMI will always be an option, along with

the other controllers and protocols configured in the HMI project. The default is All.

3. If Device is set to something other than All, a unique Station Number can be selected. If enabled,

EasyDiagnoser will monitor communications to the controller with the specified station number only.

4. Select which Address Type to monitor. If All is selected, communications to every address used in the

project will be monitored. The drop-down list will present every available address type, based on the

selection in the Device drop-down list. The default is All. This option is available only when the Device

selection is something other than All.

5. If Address Type is set to something other than All, a range of addresses to monitor can be selected. If

enabled, communications are monitored only for the selected Address Type and Range.

6. Click the Capture button to start monitoring communications. Click the Capture button again to stop.

Interpreting the Communication Status:

• Each line in the table represents a data read or write command.

• Any line in

red

indicates a communications error. The Error column indicates the type of error (see below).

• The No column is a sequential number for that read or write command.

• The Cmd column is R for Read, W for Write.

1010-1015, Rev. 03
