Using the Trend Plot Screen
Print Trend Plot: Click Print Trend Plot to print the trend plot
(graphing window) on the current printer.
Color Palette: Use the Palette pull-down list box in the Color Palette
panel to choose a color palette.
Export: Use the options in the Export panel to copy an image of the
trend plot to disk or the clipboard.
Trend Plot Settings
Select Trend Plot Settings to display the Plot Setup screen, shown in
Figure 7-14. This screen allows you to set up the parameters to be
plotted. You can display up to nine trends or data sets.

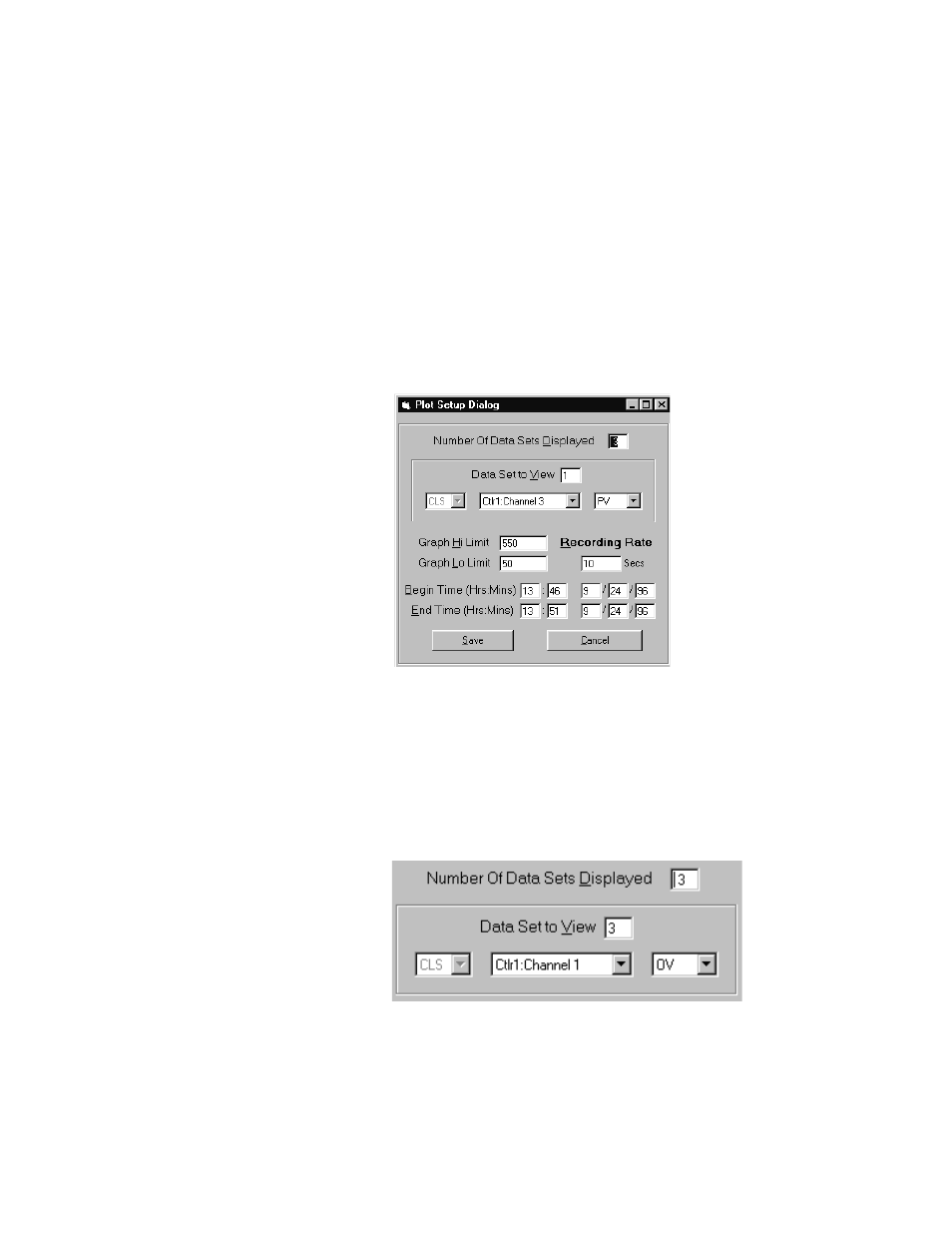

FIGURE 7-14 Plot Setup Screen
Data Sets
The data sets parameters, shown in Figure 7-15, refer to a specific plot
entry. For instance, a data set could be the Process Variable (PV) for
Controller 1, Channel 3. Up to nine data sets can be displayed on the
plot at one time. You must set up each data set individually.
FIGURE 7-15 Data Sets Parameters
