Using the Developer
AnaWin User’s Guide 10-7
You can set the following form properties:
Caption: Use the Caption field to enter a name for the custom overview
screen, then press Enter. If you do not enter a name for the screen,
AnaWin will assign it the default name Custom View. When you save
the custom overview and return to AnaWin, the screen name you
entered will appear under the Custom Overviews submenu on the View
menu.
Bkgrnd Color: Click the Bkgrnd Color setting to display a color
selection dialog box from which you can specify a color to be used as
the background for the custom overview screen.
Graphic Image: Click the Graphic Image setting to display the Add
Graphic screen, shown in Figure 10-6. From this screen, you can select
a bitmap (BMP), windows metafile (WMF), or icon (ICO) file to add to
your custom overview screen.

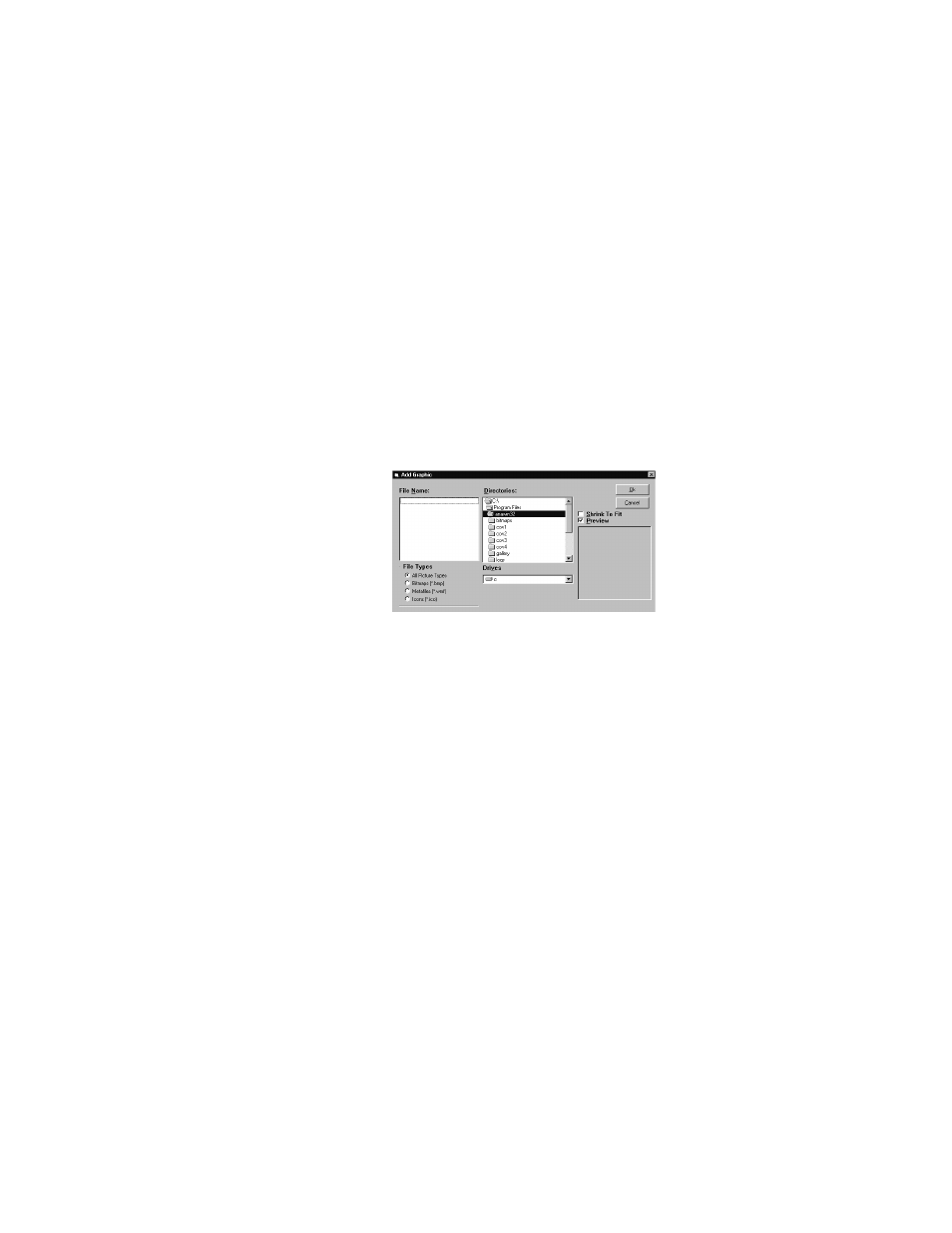

FIGURE 10-6 Add Graphic Screen
To add a graphic to a custom overview screen, follow these steps:
1. Select an option from the File Types panel to specify the type of file
that you want to add.
2. Enter the file name in the File Name field or use the Directories and
Drives scroll boxes to browse for the desired file.
3. Select the file by clicking on its name in the File Name field.
4. If desired, select Preview to display the graphic in the preview box.
For larger graphics, you may need to select Shrink To Fit in order to
fit the graphic into the preview window. The Shrink to Fit option
affects the preview only.
5. Click OK to add the graphic to your custom overview screen.
Label Properties
Use the Label Properties table, shown in Figure 10-7, to format the
labels you add to your custom overviews. Labels are text-only
references.
