5-2 AnaWin User’s Guide
Setting Channel Parameters

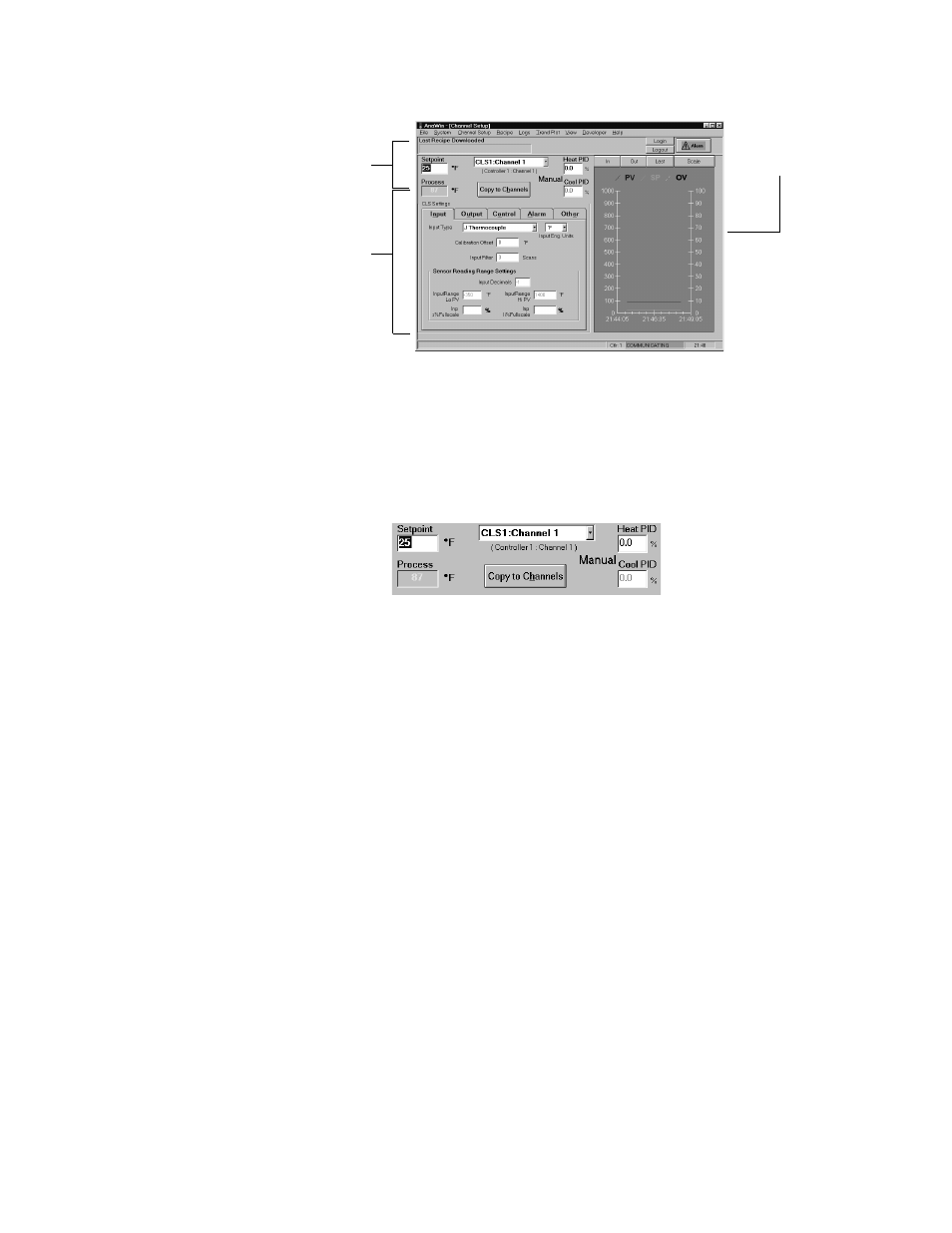

FIGURE 5-1 Channel Setup Screen
Channel Summary
The top portion of the Channel Setup screen, shown in Figure 5-2,
allows you to choose a channel to set up and provides some basic
information about the channel being edited.
FIGURE 5-2 Top Portion of Channel Setup Screen
Channel Number
Use the channel number pull-down list box to choose the channel you
want to edit or view.
Setpoint
Use the Setpoint field to enter a setpoint for the selected loop. The
setpoint range appears at the bottom of the screen when you position the
cursor over the field. If you enter a setpoint that is out of the defined
range, the controller will assign the closest number within the range.
Press the Enter key to send your new setpoint to the controller.
Process
The Process field displays the process variable in real time. It is a read
only field.
Channel
Summary
Channel Setup
Tabs
Real-time Trend
Plot
