Installation and Setup

AnaWin User’s Guide 1-5

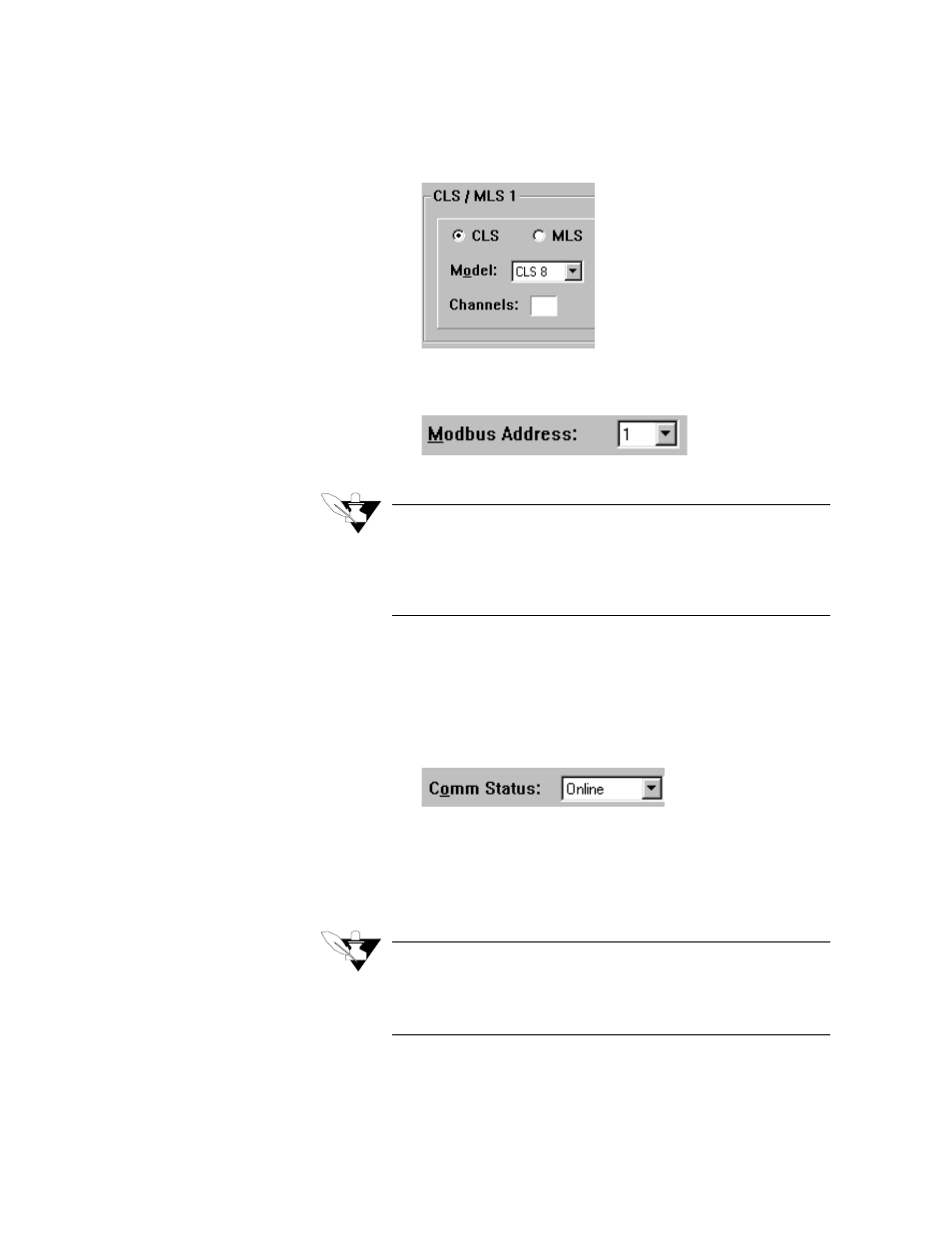

Choose the controller type and model. AnaWin automatically sets
the number of channels based on this data.

Set the ModBus address for the controller. Note that each controller
must have a unique ModBus address.

NOTE

You can use the Detect button to automatically set up each ModBus
address, but this operation takes considerable time to complete.
Refer to “Other Configuration Options” later in this chapter for
details about the Detect button.

If the controller is equipped for ramp/soak, select the Ramp Soak
Option check box.

Ensure the Comm Status of the controller has been set to Online.
Set a controller Off-line to speed up communications when you
remove the controller from the system or at other times when it can-
not communicate.

If necessary, repeat steps 2-5 to configure other controllers.

If desired, set up channel grouping or other configuration options,
as described in the following subsections.

Click Save to save the configuration.

NOTE

When changing the number of controllers or controller type,
AnaWin will automatically restart itself when the information is
saved.
