Watlow ANAWIN 2 - Manual (Page 35)

Setting System Parameters
AnaWin User’s Guide 4-7

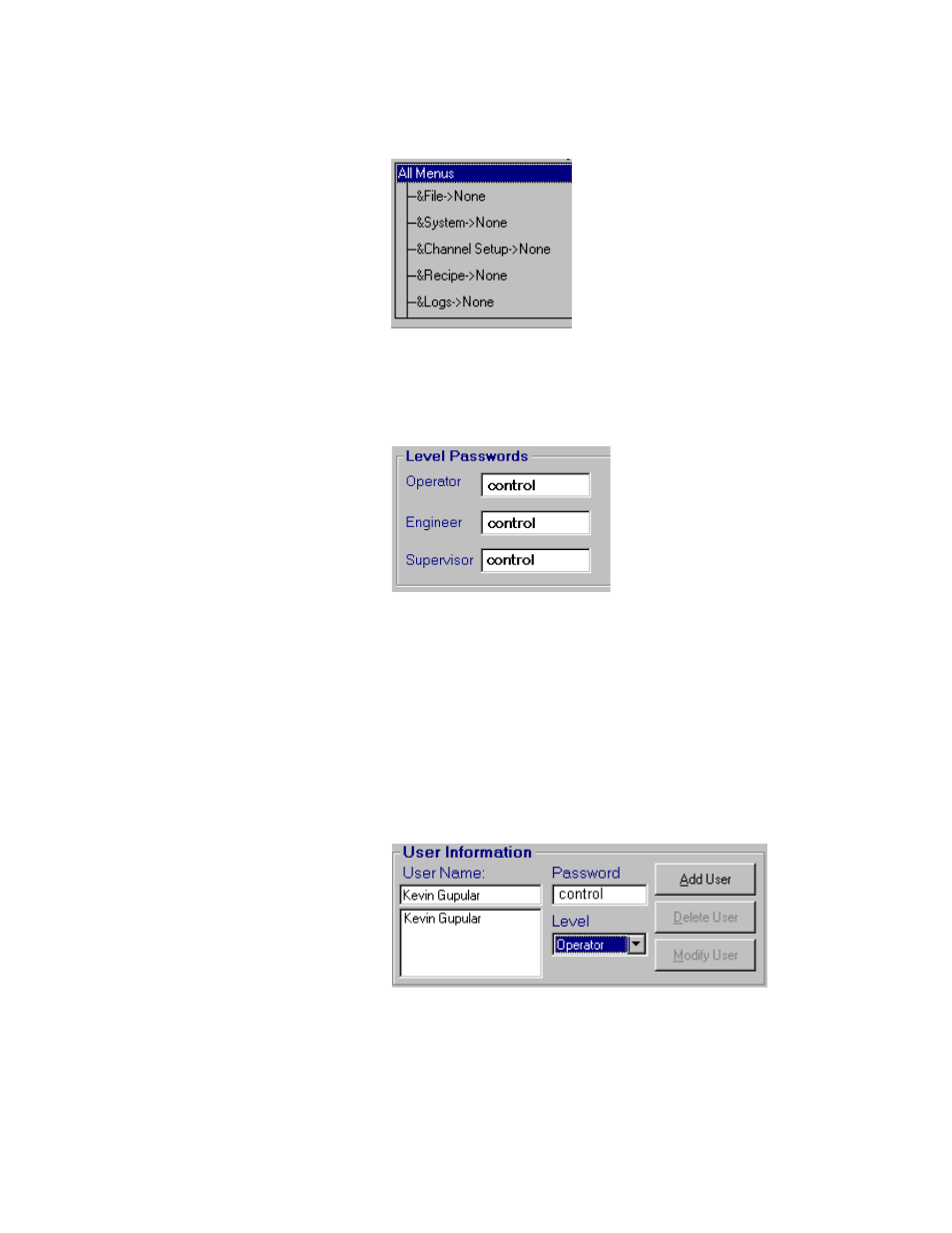

FIGURE 4-8 AnaWin Menu Tree with Assigned User Levels
Level Passwords: The Level Passwords panel, shown in Figure 4-9
allows you to set the passwords for the three user levels.
FIGURE 4-9 Level Passwords Panel
Setting Passwords by User
If you select the User option, the user information panel, shown in
Figure 4-10, appears on the Password Setup screen, and you can assign
a password and security level to each user. User security mode allows
you to assign each user a unique password. In user security mode, the
Administrator user is always present. Change the default password to
prevent unauthorized access.
FIGURE 4-10 User Information Panel
