1-4 AnaWin User’s Guide
Installation and Setup

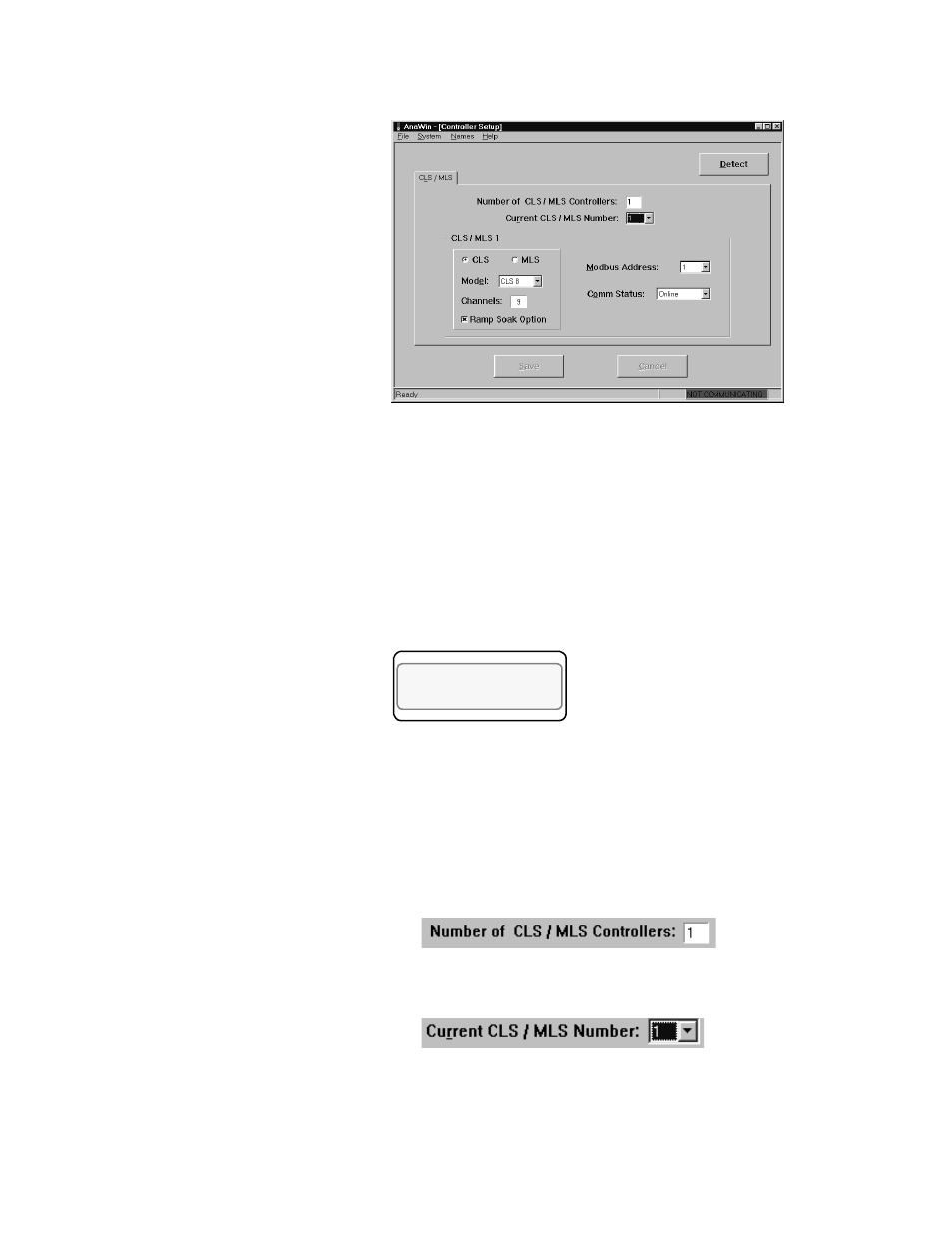

FIGURE 1-2 Controller Setup Screen
Setting the Controller to ModBus Protocol
Before configuring the software, set your controller(s) to ModBus
Protocol. Do this using the controller keypad and display shown in
Figure 1-3. Select the Global Parameters menu and set the
Communication Protocol screen to MOD, as show in the figure. Set a
unique address in each controller. Refer to your controller manual for
more detailed instructions.
FIGURE 1-3 Setting a Controller to ModBus Protocol
Configuring your Controllers
To configure AnaWin to communicate with your controller(s), follow
these steps:
1. On the Controller Setup screen set the total number of controllers,
with which Anawin must communicate.
2. Set the series number of the first controller you wish to
configure.
LOOP PROCESS UNITS
ALARM SETPOINT STATUS OUT%
COMMUNICATIONS
PROTOCOL? MOD
