Setting Channel Parameters
AnaWin User’s Guide 5-9
Location
Use the Location column to select a memory location in the controller to
which to download a profile.
Profile Name
The Profile Name column indicates whether or not a profile has been
assigned to the corresponding channel.
If the Profile Name button is blank, clicking the column displays the
Select File window, shown in Figure 5-12. Use this window to assign a
profile to the loop.

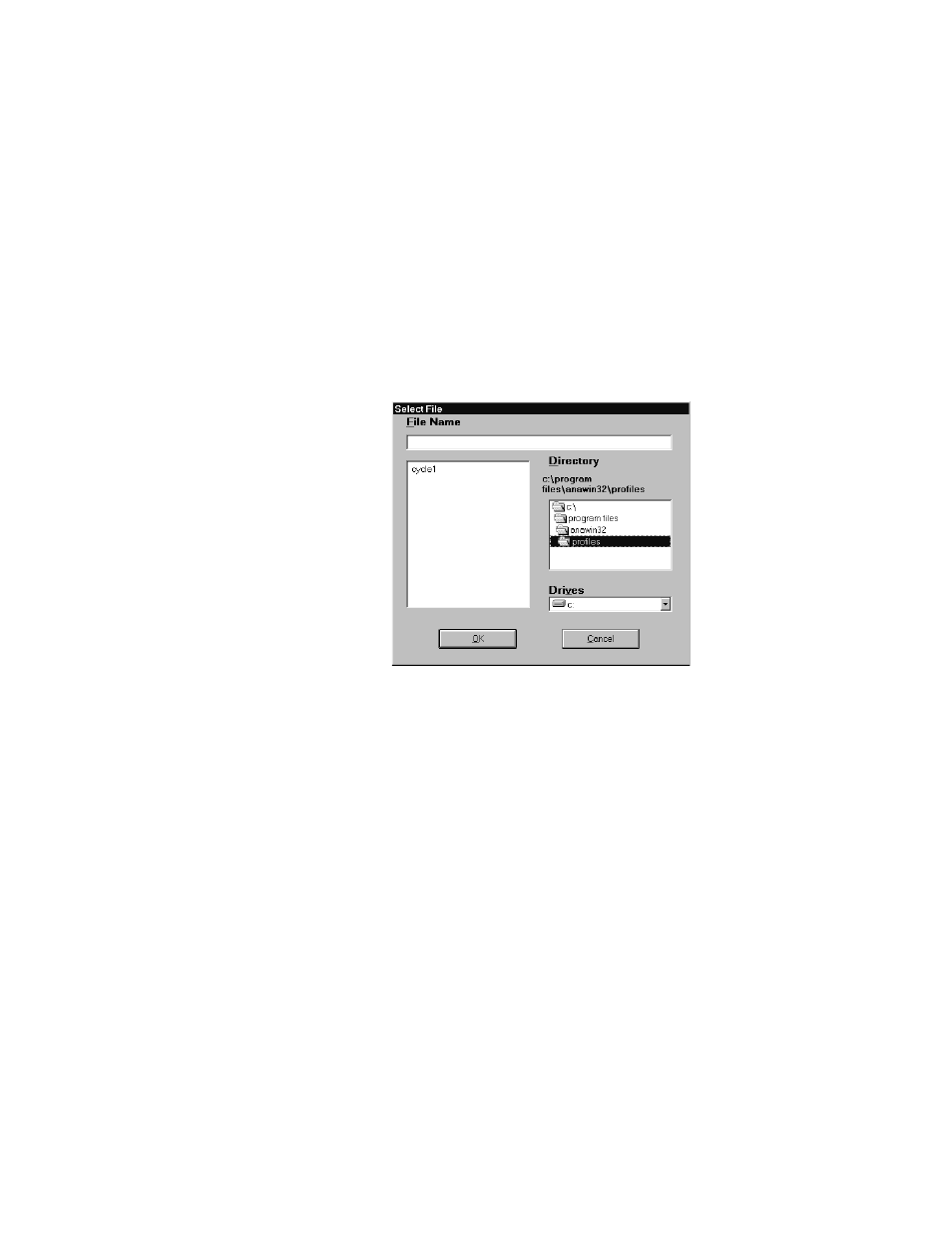

FIGURE 5-12 Select File Window
• To assign a an existing profile to the loop, select a file name from the
list of valid profiles, then click OK to return to the Ramp Soak
Assignment screen.
• To create a new profile with default values, type in a non-existent
profile name in the File Name field, then click OK to return to the
Ramp Soak Assignment screen.
If a valid profile is Assigned, clicking the Profile Name button displays
the Special Ramp-Soak Functions screen, shown in Figure 5-13.
Refer to “Using Special Ramp/Soak Functions,” below for details about
the menu options and screens you can access from the Special Ramp-
Soak Functions screen.
Using Special Ramp-Soak Functions
To display the Special Ramp-Soak Functions window, shown in
Figure 5-13, click the Profile Name column on the Ramp Soak
Assignment screen for a channel to which a profile has been assigned.
