A-4 AnaWin User’s Guide
Using AnaMator
Status Bar
The status bar at the bottom of the screen displays the status of the
AnaMator program. The Ready status means that AnaMator is ready for
you to use.
Frame Setup
If you select Frame Setup, the AnaMator Frame Setup screen, shown in
Figure A-3, appears. You use this screen to create an animation by
assigning bitmap files to each frame.
To create an animation, follow these steps:
1. Use the Sequence and Frame indicators to select the frame to which
you want to assign a bitmap.
2. Click Change to display a standard Windows 95 Open File dialog
box.
3. Select a bitmap file for that frame. AnaMator copies the bitmap file
and assigns it an unchangeable animation file name.
4. Repeat steps 1-3 to assign bitmaps to the other frames in the anima-
tion.

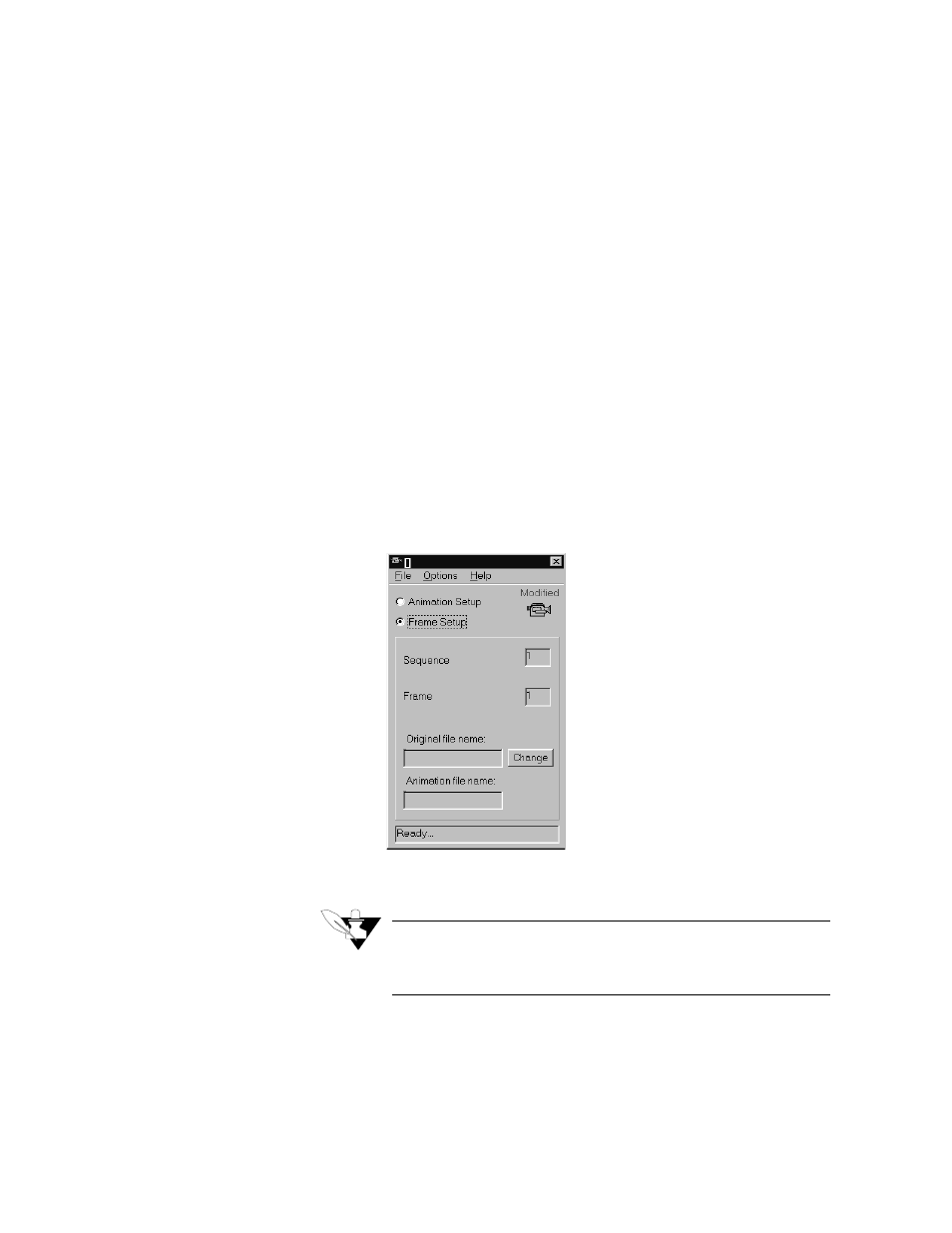

FIGURE A-3 AnaMator Frame Setup Screen
NOTE
If you want the animation to repeat automatically, select Auto
Repeat from the Options menu.
