1-8 AnaWin User’s Guide

Installation and Setup

The following subsections describe these options.

Automatic ModBus Address Setup

Click Detect to direct AnaWin to automatically attempt to communicate
to each ModBus address. AnaWin checks each address and sets up any
controllers it finds.

Configuring Communications Options

Use the Communications option on the System menu to select the port to
which you have connected your controller(s) and the baud rate for
which you have configured your controller(s).

From the System menu, select Communications, then Port to select

the port to which you have connected the controller(s).

From the System menu, select Communications, then Baud Rate to

select the baud rate for which you have configured your control-
ler(s).

Customizing Displayed Names

Use the options on the Names menu to customize displayed names of
specific global and channel parameters or names of channels and digital
inputs and outputs.

From the Names menu, select Parameter Names to display the
Parameter Names screen, shown in Figure 1-5. Use this screen to
customize channel, global, and ramp/soak parameter names.

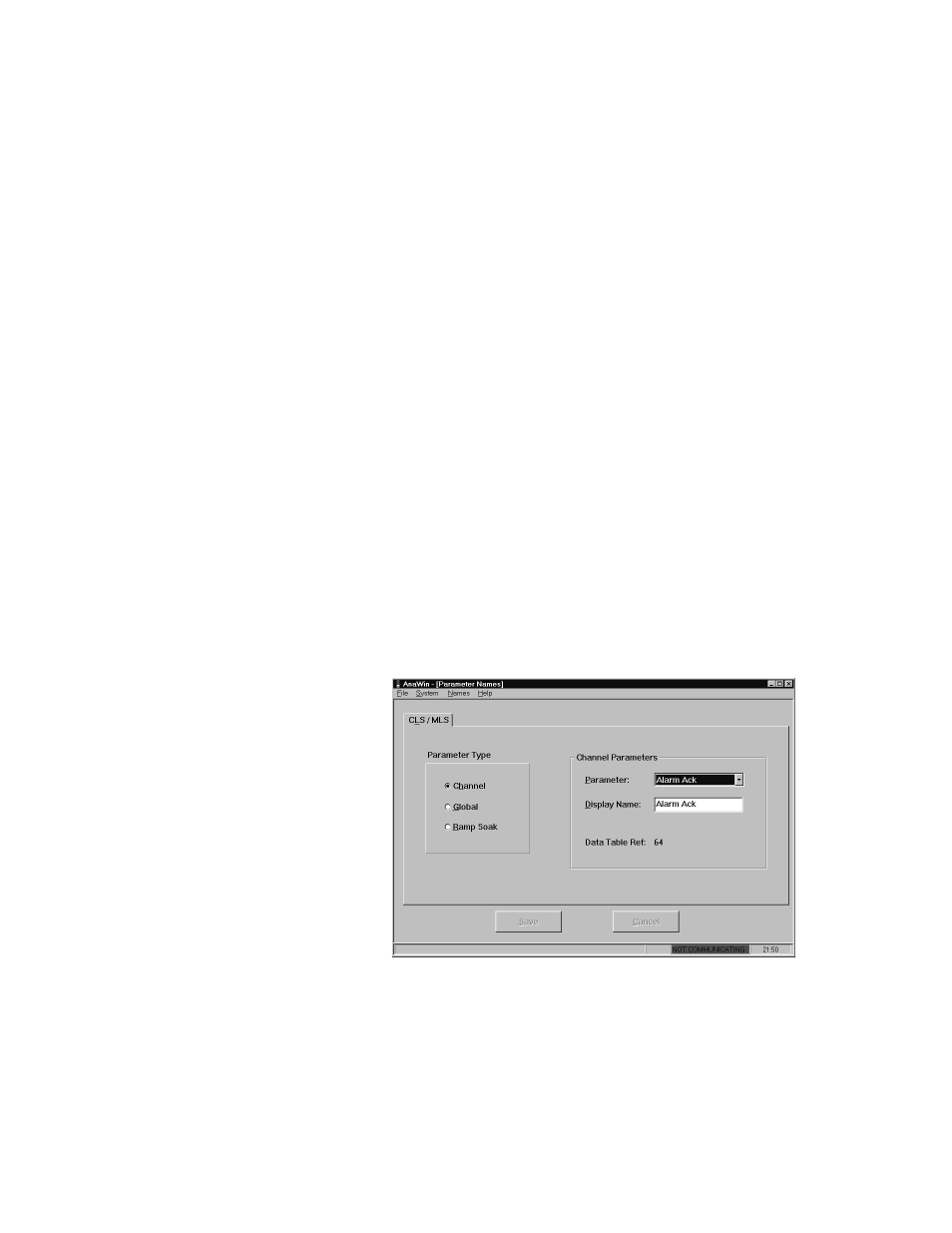

FIGURE 1-5

Parameter Names Screen
