Using AnaMator
AnaWin User’s Guide A-3

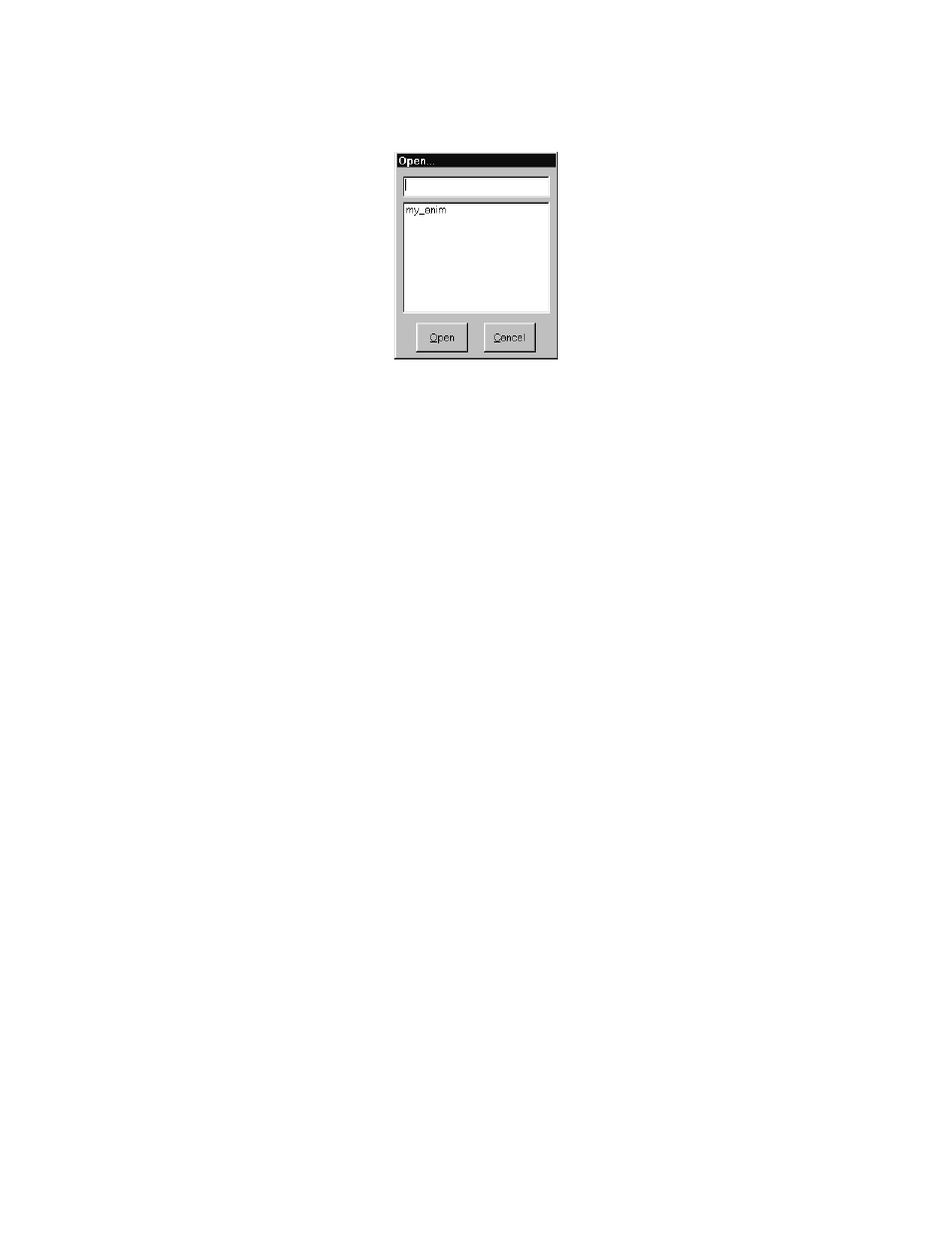

FIGURE A-2 Open Animation Window
Editing Animations
The AnaMator Setup screen includes two setup options—Animation
Setup and Frame Setup. These options display setup controls that allow
you to specify parameters for the animation as a whole and to assign
bitmap files to the individual frames that comprise the animation.
Animation Setup
If you select Animation Setup, the AnaMator Animation Setup screen
shown earlier, in Figure A-1, appears. Use this screen to set parameters
for the animation as a whole. The AnaMator Animation Setup screen
includes the following controls:
Number of Sequences
Drag the indicator to set the number of sequences in the animation. The
number you set appears in the display field.
Number of Frames in each Sequence
Drag the indicator to set the number of frames per sequence in the
animation. The number you set appears in the display field.
Update Speed
Drag the indicator to set the update speed (in seconds) for the animation.
The number you set appears in the display field.
Physical Memory (RAM) Used
The Physical Memory Used field lists the amount of memory used by
the animation.
