Maple Systems HMI5000 Series - Manual (Page 94)

88 EZware5000 Series Programming Manual
1010-1007, Rev. 10
Auto Resizing Using the Model Tab
This tab can be used to automatically resize your project when changing to another HMI model with a different size
touchscreen. The project and all objects and graphics will be proportionately resized automatically.
 To auto resize your project using the Model tab in the System Parameters dialog:
1. In the Model tab, select a different display size from the HMI model drop-down box and click OK.

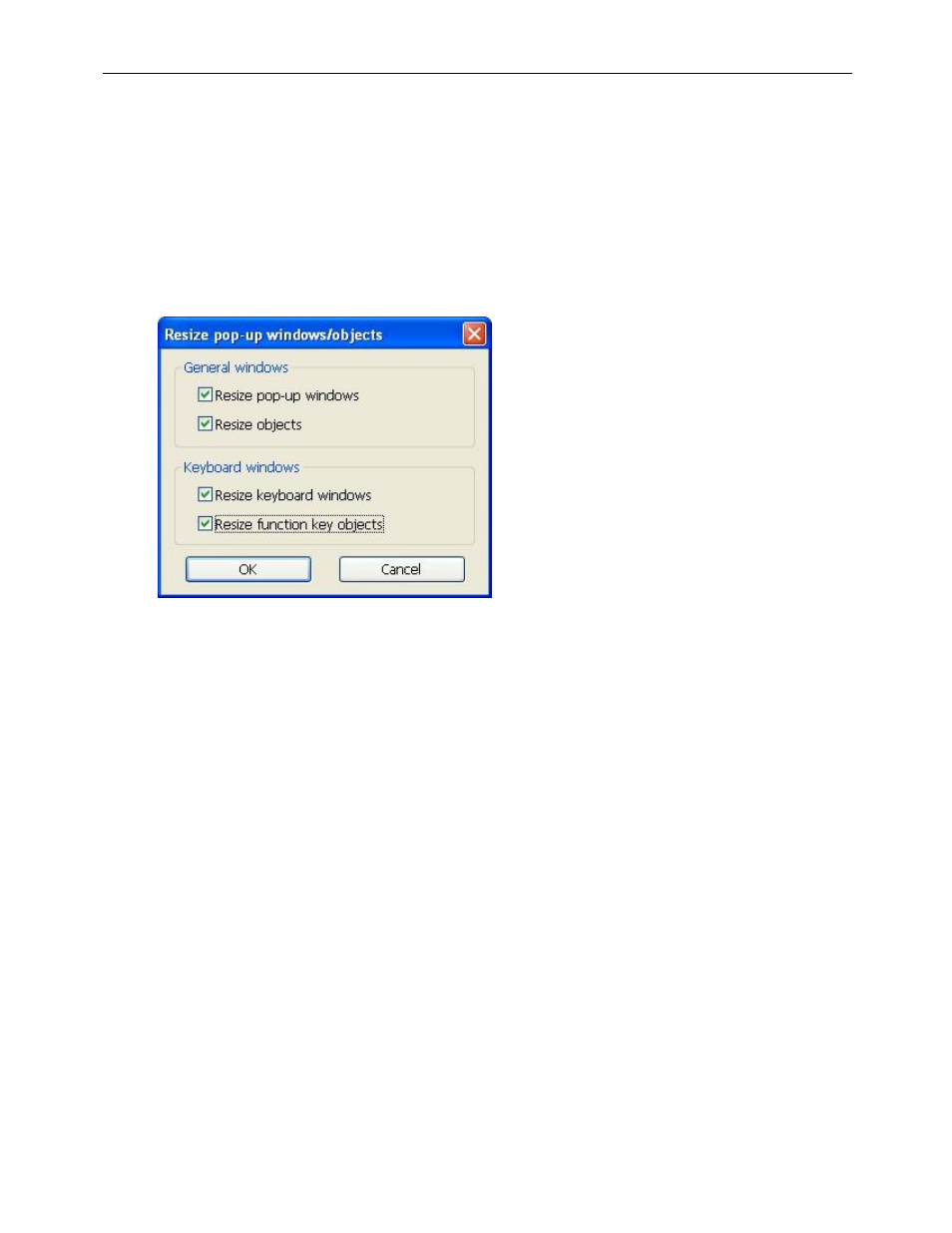

2. The Resize popup windows/objects dialog appears.
3. Check all the resize options and then click OK. The project will automatically resize.
