Creating a Sample Project 39
1010-1007, Rev. 10
19. In the Attribute section, select the following:
Set Style: Press and hold decrement (JOG--)
(this will cause the value in the register to decrease while the button is pressed)
Dec. value: 1
Bottom limit: 0
JOG delay: 0.5 second(s)
JOG speed: 0.1 second(s)

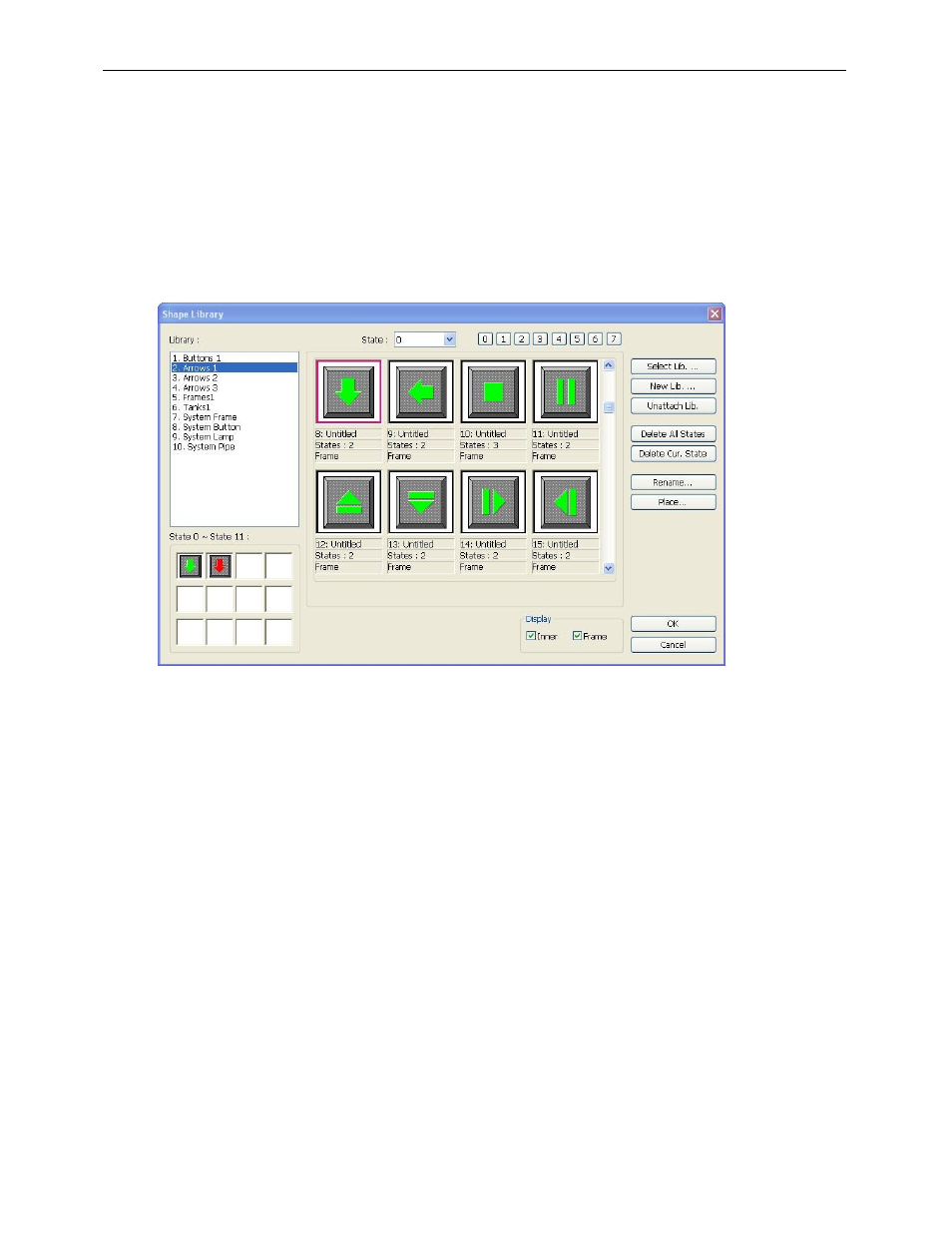

20. Click the Shape tab. Click the Shape Library… button. Select the Arrows 1 library. Select shape number 8 and
click OK.
21. Click OK to accept the properties settings.
Next we will create a Bit Lamp Object to represent a pump and another to represent a pipe connecting the pump to
the tank.

To create a Bit Lamp:
1. In the top menu bar in EasyBuilder-5000, click Objects > Lamp > Bit Lamp (or select the Bit Lamp icon in the
Object 1 Toolbar).
2. In the Bit Lamp Object’s Properties General tab, you can enter a description of the object such as Pump.
Select LB for the Device Type and 0 for the Write address.
