Object security, User restriction – Maple Systems HMI5000 Series User Manual
Page 185
Security
179
1010-1007, Rev. 10
Object Security
Many objects in EasyBuilder-5000 can be secured using the Security tab in the object’s properties window. For
example, a Function Key can be secured so that only user’s with a specified access class can operate the Function Key
and open a particular window.

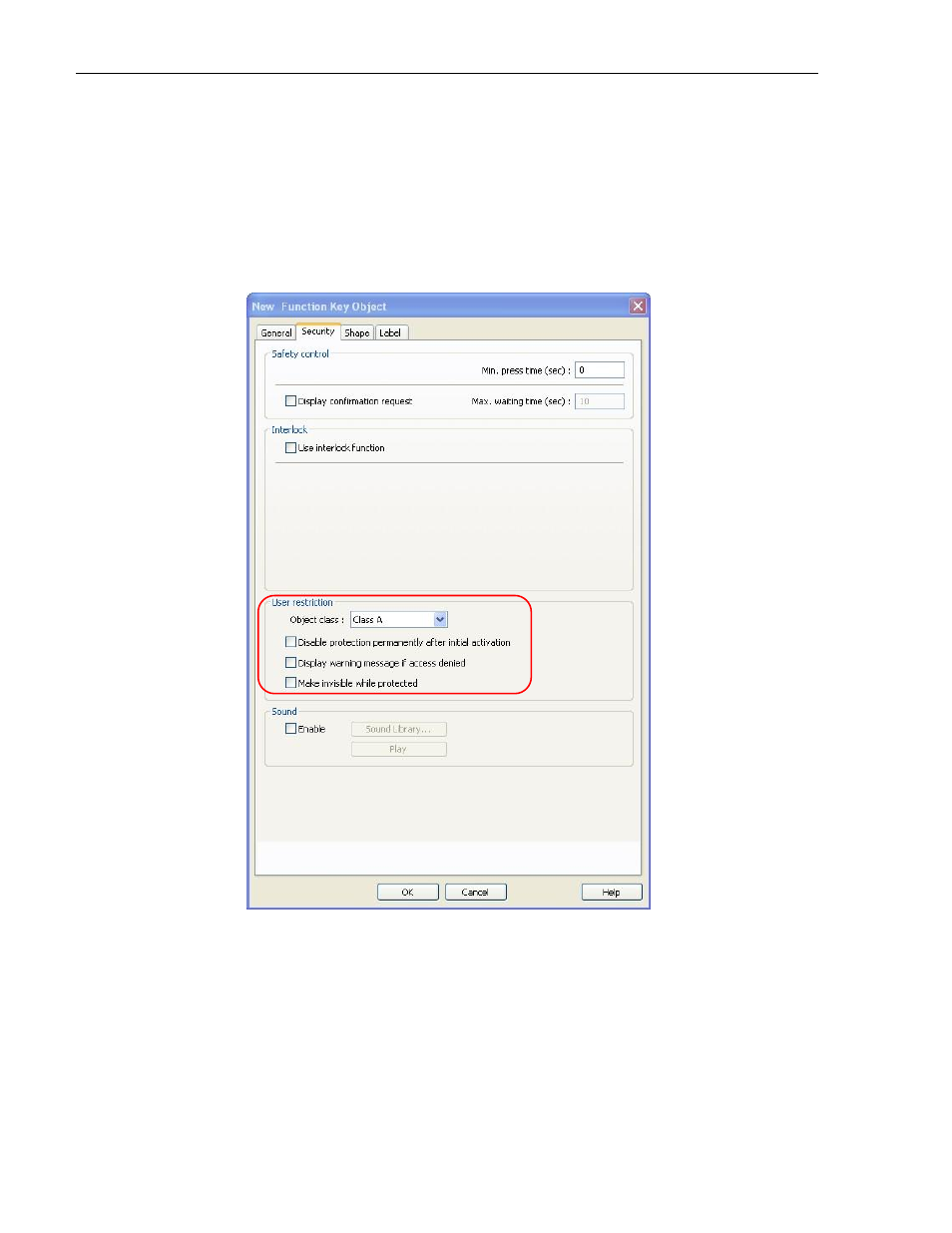

User Restriction
The User restriction area is where the security class for the object is set.
Once an Object class is selected in the User restriction area, three options become available. With no option checked,
the object simply will not operate when touched unless a user with the correct access class is logged in.
Disable protection permanently after initial activation: This option removes the user restriction from the object
once the object has been activated by a user with the correct access class, even after that user logs out. The
protection is disabled until the HMI is rebooted.
