Using EZware-5000 103
1010-1007, Rev. 10

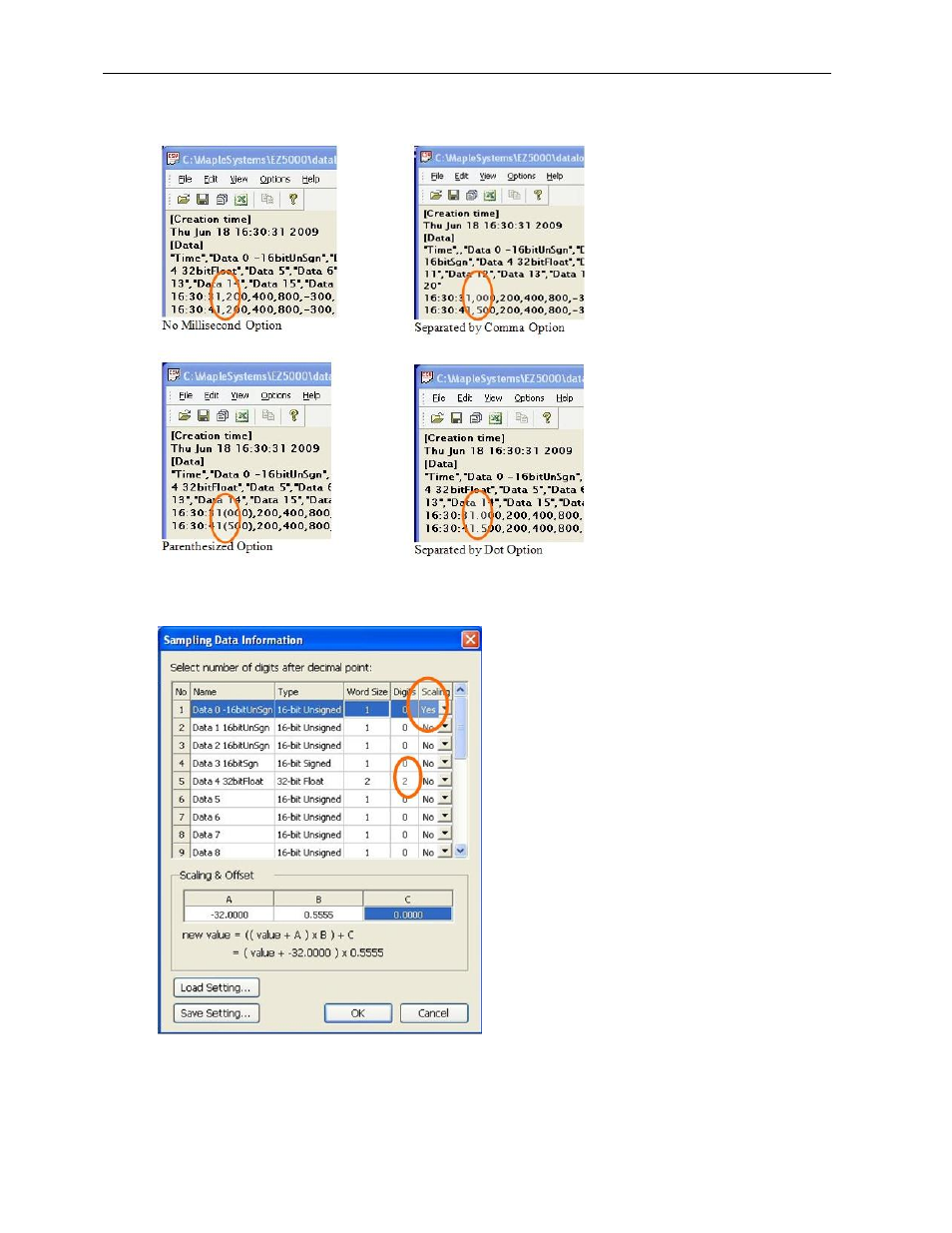

2. Display Milliseconds: This option determines how the time value for each data record is displayed. In this
window you have four options:
3. Decimal display and Scaling option: The dialog box below allows you to select different formats for the data
before it is displayed.
4. For this example, we have elected to use the linear scaling formula on Data 0 to convert the raw data (which
is measuring temperature in °F) to °C.
5. Also, the raw data collected for Data 4 is a floating point number calculated to three decimal places.
However, we are only concerned with a two decimal accuracy, so we change the ‘Digits’ field from 3 to 2. If
