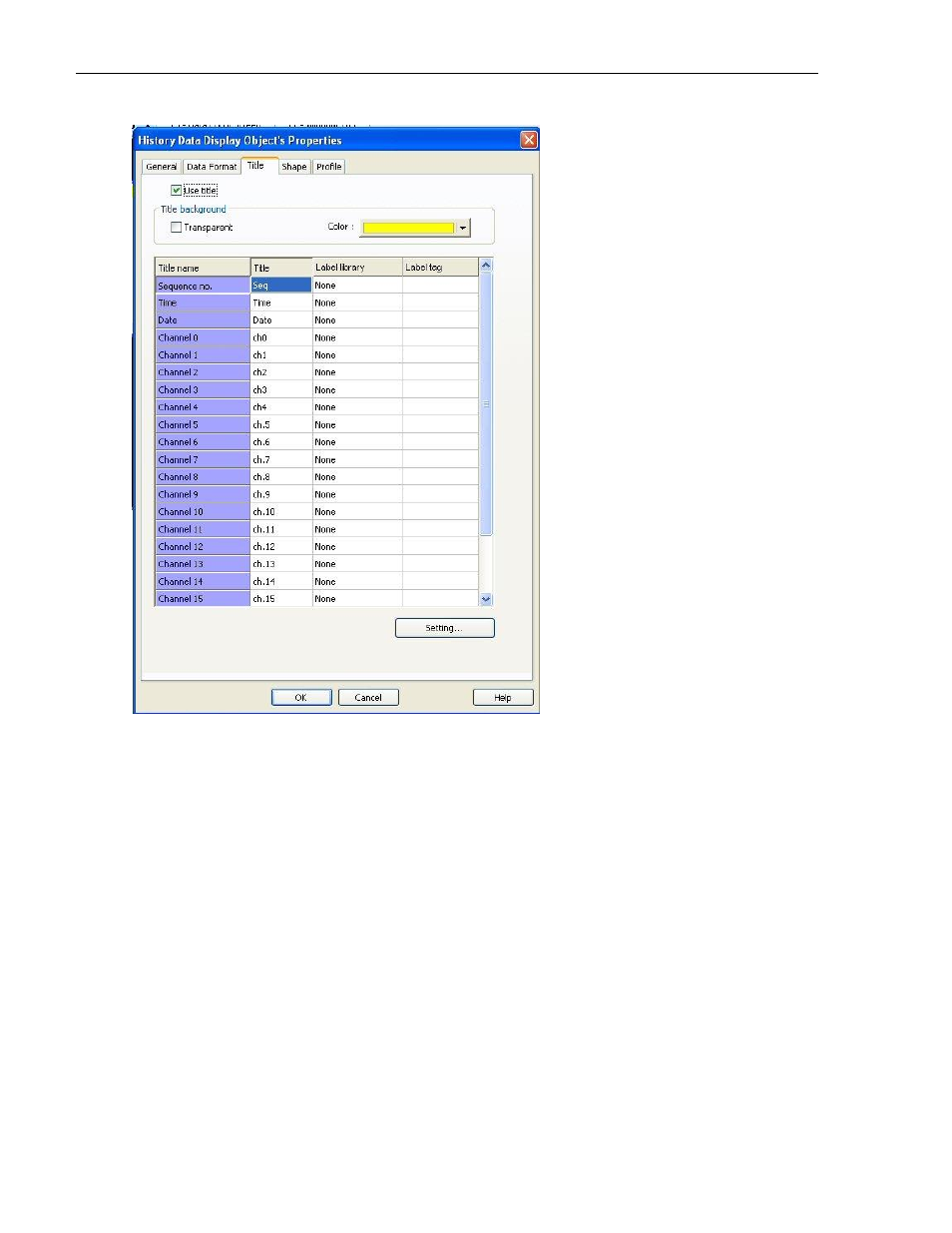

Title tab: Used to configure a title bar or legend at the top of the data columns:
1. Use title: Check to use the Title bar option.
2. Title background: Determines color of background on title bar.
a. Transparent: Check to remove background color.
b. Color: Select from drop-down color box.
3. Title name: Default name of each column.
4. Title: Name assigned to appear at the top of each column.
5. Label library: None = not used, Used = Label Library used instead of direct text entry. To assign a Label Tag,
highlight the channel you wish to modify and click on the Setting… button.
 For more information on using Label Libraries, see “Chapter 8 – Creating and Using Databases and
Languages.”
Label tab: Blank = not used, or the particular name of the label tag used.
Shape tab: Use to configure the frame and background color of the display.
