130 EZware5000 Series Programming Manual
1010-1007, Rev. 10

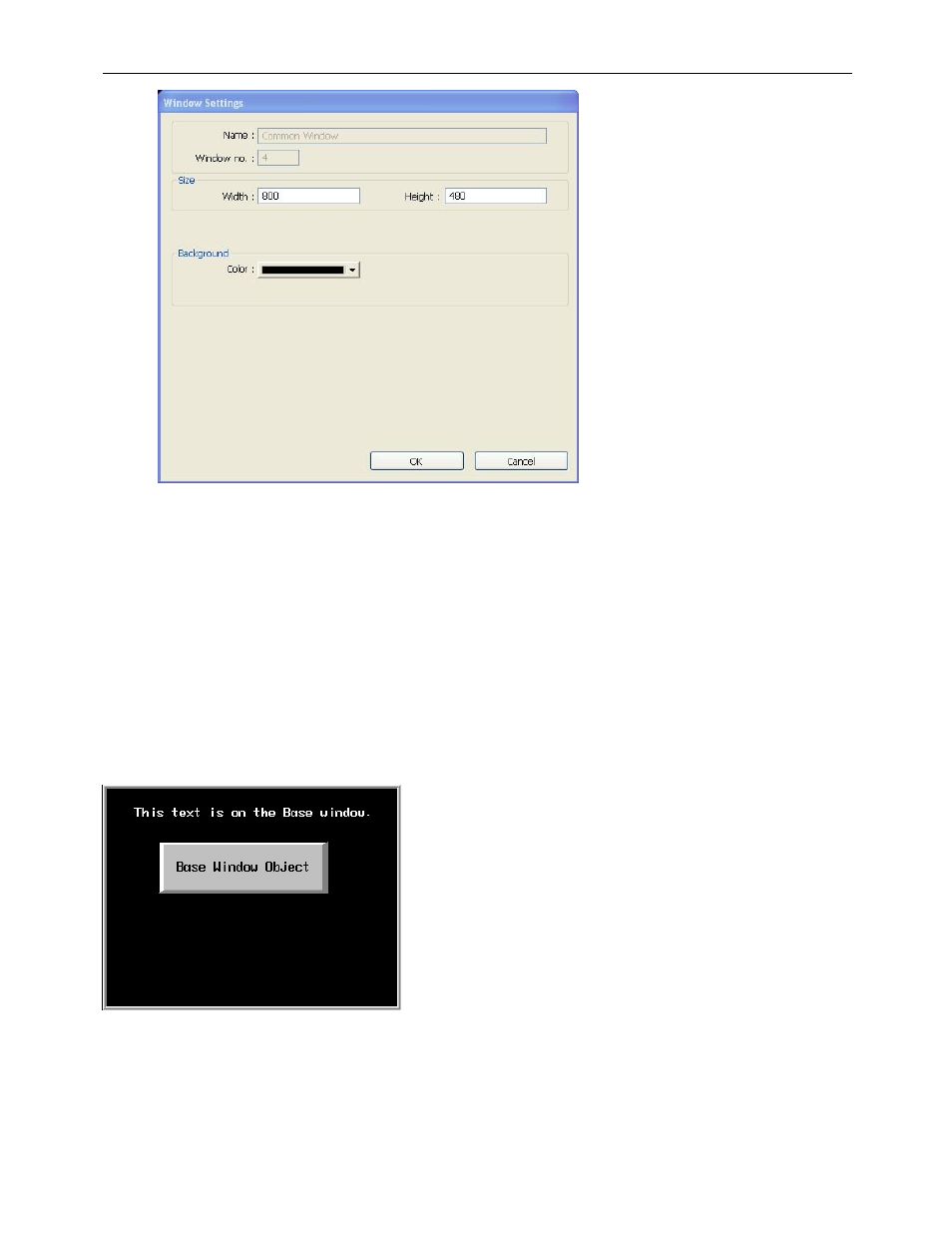

3. As you can see, some of the parameters for a common window are disabled and cannot be changed.
Window #4 is always reserved for the Common Window. Although the Background settings are active, none
of these settings affects the operation of the common window.
4. Click OK. The Open Window dialog box reappears with the Common Window selected.
5. If you wish to open the common window, click Open. Otherwise, click Close to return to the main screen of
EasyBuilder.
Displaying the common window above/below the base window
This setting resolves the conflict that can occur if a graphics object on the common window occupies the same space
on the HMI display as a graphics object on a base window. Using the Above base window attribute forces the
graphics object on the common window to cover the base window graphics object. Using Below base window has the
opposite effect.
Base Window
