108 EZware5000 Series Programming Manual
1010-1007, Rev. 10
To create a new Recipe/Extended Memory file:

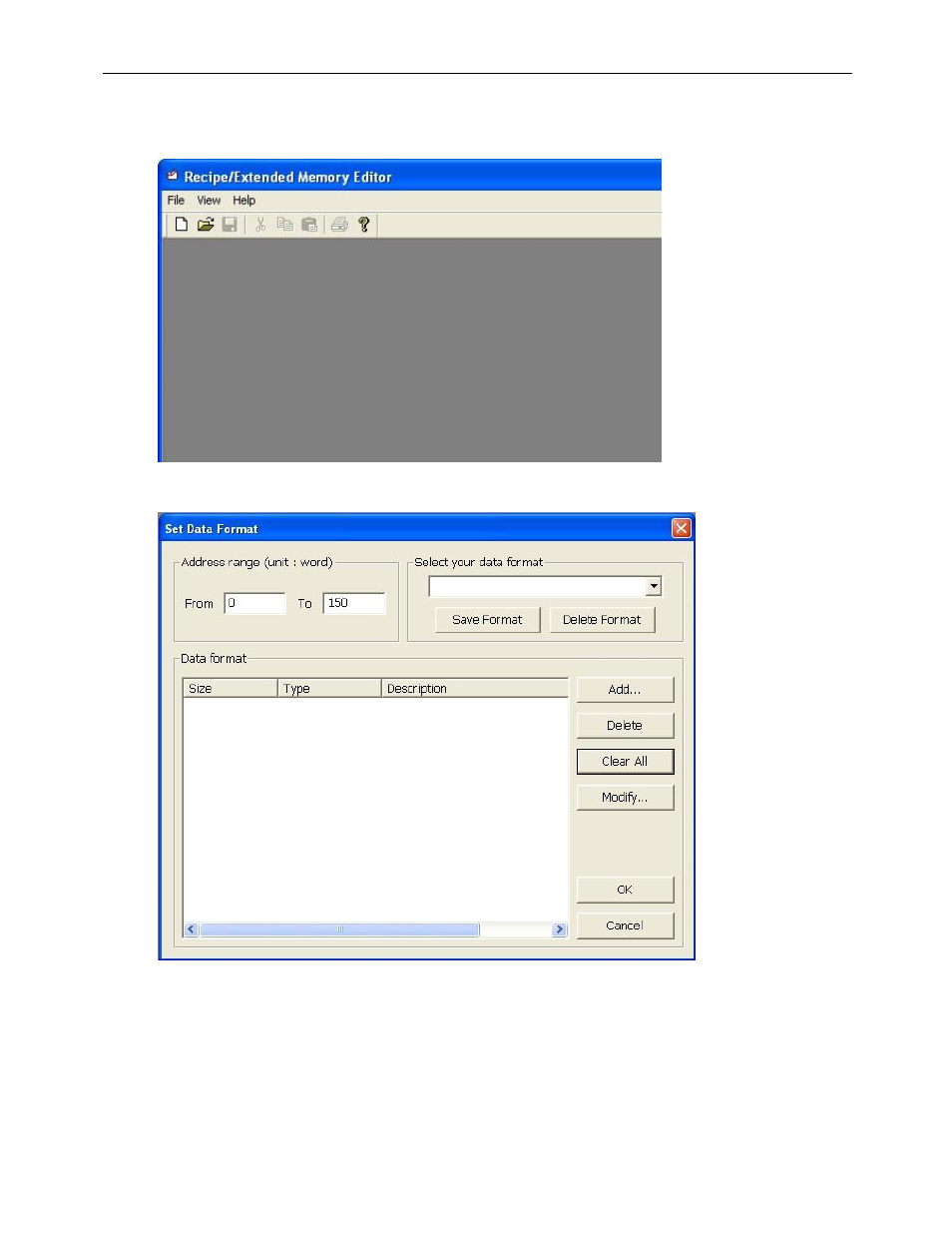

From the Project Manager application, click Recipe/Extended Memory Editor:
1. Click File > New. The following dialog box appears:
2. Address range (unit: word): Use this area to select the total number of RW (recipe word) registers or EMx
(Extended Memory) registers that are used for the recipe or extended memory file. In the example above,
RW0 thru RW150 will be used.
3. Select your data format: Use this area to enter how each data register element is be interpreted by the HMI.
The data collected and stored in recipe/extended memory files is in binary format and does not contain any
information about how each data should be interpreted by the HMI (for example, is the data in 16-bit signed
