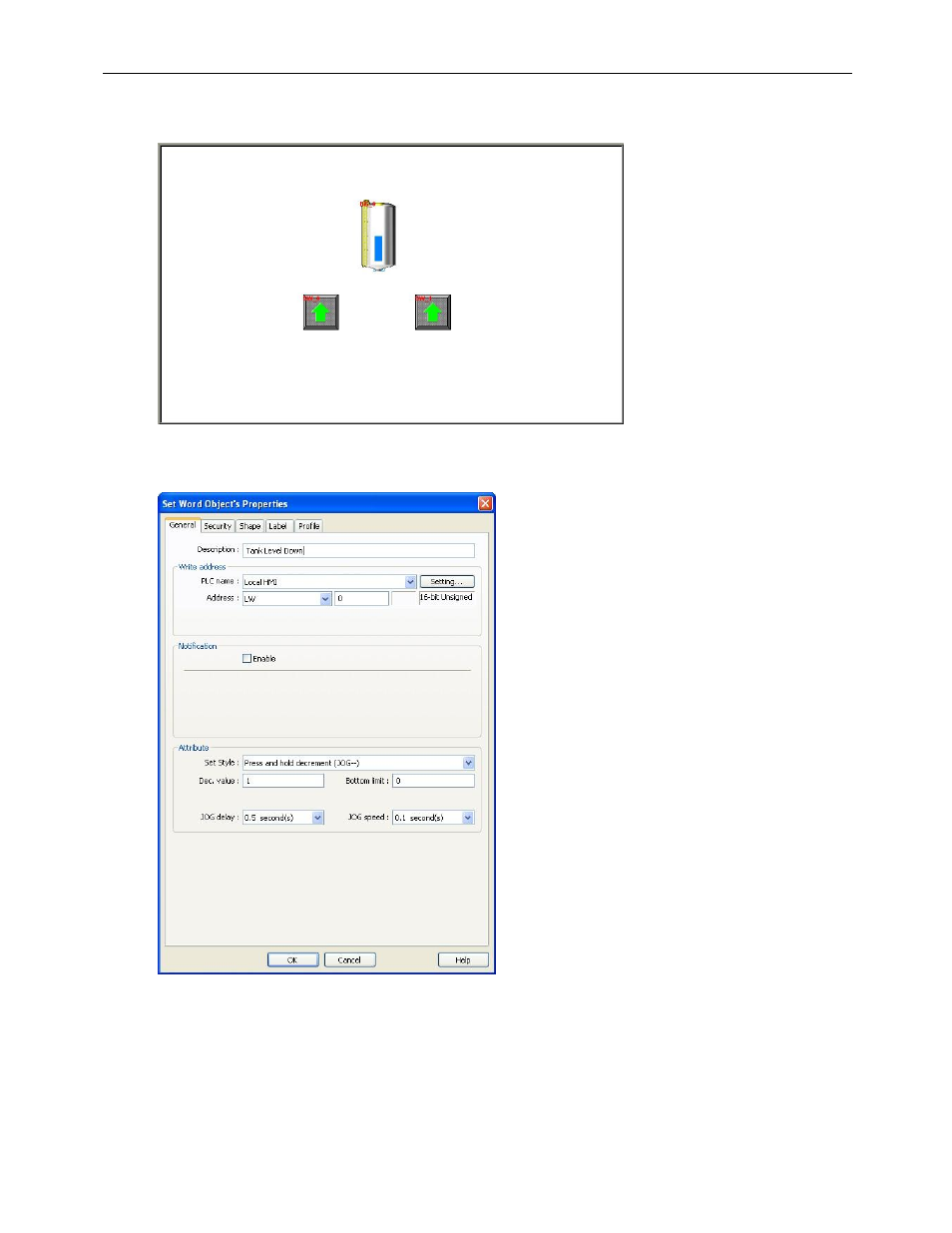

16. Paste the Set Word Object to the window (Edit > Paste or Ctrl+V) and drag it next to the other Set Word
Object.
17. Click on the screen to deselect it, then double-click on the new Set Word Object to open the Properties
window (or right-click on it and select Attributes).
18. In the Set Word Object’s Properties General tab, you can enter a description of the object such as Tank Level
Down. Select LW for the Device Type and 0 for the Write address. Leave the numeric format set to the
default 16-bit unsigned.
