Creating Windows

131

1010-1007, Rev. 10

Common Window

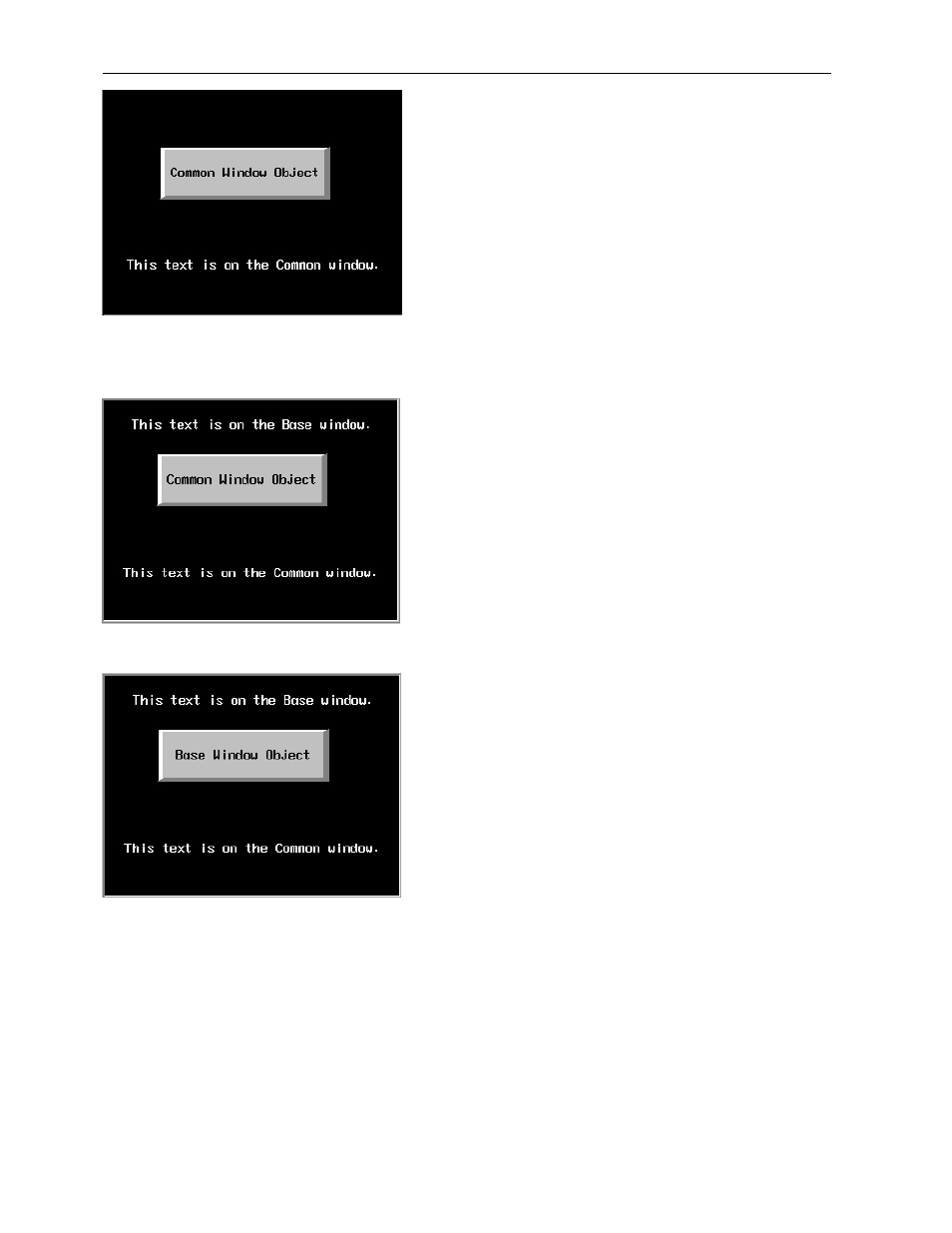

When Above base window is set, the result is:

When Below base window is set, the result is:

To set the Above/Below base window option for a common window:

1. From the Edit menu, select System Parameters. The Set System Parameters dialog box appears.

2. Select the General tab. In the Options section next to Common window, select either Above base window

or Below base window.

3. Click OK to return to the main screen of EasyBuilder.

 Active graphics objects (objects that display information or graphics according to a data value in a PLC
register or coil) take precedence over passive graphics objects (objects such as circles, lines, rectangles, etc.).
